Products & Services: Detectors, Monitors & Recorders

Sept. 1, 2002
Respirometry Plus offers two new tests to determine if influents are toxic to nitrifiers. The tests have been developed by the company for use with its Arthur Bench Respirometer and are designed to help maintain nitrification process control.

Nitrification testing

Respirometry Plus offers two new tests to determine if influents are toxic to nitrifiers. The tests have been developed by the company for use with its Arthur Bench Respirometer and are designed to help maintain nitrification process control. The tests produce results in less than 20 minutes. For process control, the respirometer measures separately, but simultaneously, the amount of oxygen used in nitrogenous oxidation and the amount used in carbonaceous oxidation.

Click here to enlarge image

Respirometry Plus LLC
Fon du Lac, WI
Tel: 800-328-7518

Temperature measurement

Dwyer Instruments offers the Series MIL mini In-Line IR Sensor for temperature monitoring. The two-piece system consists of a miniature sensing head and separate electronics. The sensor is small enough to be installed just about anywhere. The electronics feature emissivity, peak hold, valley hold and averaging function, all of which are adjustable on the 5-digit LCD user interface.

Click here to enlarge image

Dwyer Instruments Inc.
Michigan City, IN
Tel: 219-879-8000

AA spectrometer

Thermo Elemental has released its all-new SOLAAR S Series of AA Spectrometers. The series instruments are designed to provide reliable, workhorse AA systems for the busy wastewater laboratory. They have total automation of all optical parameters, QuadLine background correction and coded lamps that can be used to retrieve analytical method parameters.

Click here to enlarge image

Thermo Elemental
Franklin, MA
Tel: 800-229-4087

pH recorder

Analytical Measurements offers a line of pH and ORP (Redox) instrumentation as well as replacement probes/sensors. Its Model 30 combines a pH meter (or ORP) with a strip chart recorder in a compact NEMA enclosure. The unit can be installed permanently on the wall or used as a portable field instrument. Standard features include a strip chart recorder and manual temperature compensation from 0 to 100 deg. C.

Click here to enlarge image

Analytical Measurements
Hillside, NJ
Tel: 800-635-5580

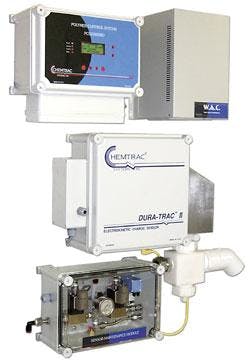

Monitoring system

Chemtrac Systems has integrated process measurements such as flow, streaming current, particle count, pH, turbidity, chlorine residual, etc., into a JAVA based monitoring system called WebTRAC™. The system offers the monitoring and control functionality of SCADA at a fraction of the cost. A unique feature of system is that interfacing does not require any proprietary software.

Click here to enlarge image

Chemtrac Systems, Inc.
Norcross, GA
Tel: 800-442-8722

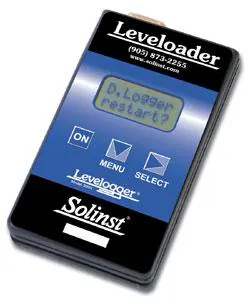

Data retrieval device

Water level data, collected using dedicated Solinst Leveloggers, can now be retrieved without taking a laptop computer into the field. An inexpensive new hand-held device, the Leveloader, downloads up to 190,000 measurements from up to 50 Leveloggers. Back in the office, the data can be transferred to the office computer. The Levelogger is an accurate, miniature unit with a pressure transducer, temperature sensor, 10-year battery and datalogger all factory sealed in a maintenance-free stainless steel housing.

Click here to enlarge image

Solinst Canada Ltd.
Georgetown, ON
Tel: 800-661-2023

Level measurement

The new Level Mate™ II from Ametek U.S. Gauge PMT Products is a liquid level measurement system designed for a wide range of applications from basic well-level measurement to sophisticated process tank level control, at half the cost of comparable systems.

Click here to enlarge image

Ametek U.S. Gauge, PMT Prod.
Feasterville, PA
Tel: 215-355-6900

Access control

Videx announces CyberLock®, an intelligent lock cylinder designed to convert existing mechanical locks into full-functioning access control systems, without hardwiring. The locks permit access for authorized users at specific times on pre-selected days, and provide a comprehensive audit report of all entries. There are no batteries in these cylinders and no wires to install.

Click here to enlarge image

Corvallis, OR
Tel: 541-758-0521

Gas monitoring

The G20 and G40 Portable Gas Detectors from General Monitors feature a compact design and full-sized electrochemical cells for optimal personal safety. The G-series simultaneously monitors from one to four toxic gases, including oxygen deficiency and combustible gas. Enclosed in a custom-formulated, stainless steel and polypropylene housing, the series is resistant to impact and chemical exposure.

Click here to enlarge image

General Monitors Inc.
Lake Forest, CA
Tel: 949-581-4464

TPH analysis monitoring

FCI Environmental has introduced its CMS-4000 Continuous Monitoring System to monitor stormwater and wastewater for TPH analysis. Using the company's patented Fiber Optic Chemical Sensor (FOCS®) technology, the system provides trend data and control capability through a 4-20 mA output, as well as being compatible with most commercial SCADA systems. Data correlates well with the Freon/IR method without the need for Freon solvents and is available locally and via modem. The system is intrinsically safe and can simultaneously handle up to four separate sample streams, each with its own 4-20 mA output.

Click here to enlarge image

FCI Environmental, Inc.
Las Vegas, NV
Tel: 800-510-3627

Chorine testing

The Idexx EZ DPD™ dispenser is designed for residual chlorine testing. It allows sample collectors to dispense a pre-measured dose of reagent with the press of a button, eliminating messy powder handling and leftover foil pouches. Refill vials screw on quickly. The testers work with a wide range of color cubes, color wheels and colorimeters. Color-coding distinguishes free and total chlorine tests.

Click here to enlarge image

Idexx Laboratories
Westbrook, ME
Tel: 207-856-0319

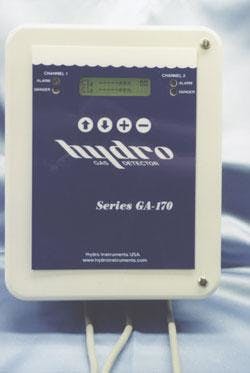

Gas monitoring

Hydro Instruments' GA-170 gas monitoring system detects trace quantities of toxic gases and alerts operating personnel through built-in audible and visual alarms. The monitors can be used to detect chlorine, sulfur dioxide and various other gases with one or two sensors per monitor. The sensors are housed in weatherproof enclosures that can be located up to 1000 feet away from the NEMA 4X monitor module.

Click here to enlarge image

Hydro Instruments
Quakertown, PA
Tel: 215-538-1367

Paperless recorder

Monarch Instrument's Data-Chart® 2000 Paperless Recorder has a 5.6 in. active matrix color LCD display that enhances review of information. Touchscreen control provides for setup, recorder functions, and data review on-site. Universal, isolated 2, 4 or 6 channel input modules measure a wide range of DC voltage, DC current, RTD and thermocouples with 0.05% voltage accuracy and high resolution.

Click here to enlarge image

Monarch Instrument
Amherst, NH
Tel: 800-999-3390

Magnetic flow meter

Siemens Energy & Automation has released a new version of the Sitrans™ FM magnetic flow meter that provides the additional capability of digital communications using Profibus PA, profile 3. Some of the unit's new features include: Internal simulation for all output functions, as well as complete flow simulation; Automatic self-monitoring of the converter and the connected flow sensor; and Automatic recognition of the sensor type and calibration data as result of the SmartPlug™ memory chip. When used with Simatic™ PDM software, the flow meter can be integrated directly into a complete Profibus system, so the flow data is available at the control system.

Click here to enlarge image

Siemens Energy & Automation
Spring House, PA
Tel: 800-365-8766

Water monitoring

Utilities can monitor water for months with the new YSI 6600 EDS (Extended Deployment System). Even in aggressive fouling environments, the self-cleaning water quality monitoring system allows the user to deploy the unit and continue to monitor more than 10 parameters for months at a time without frequent maintenance. A Clean Sweep™ wiper keeps barnacles, dirt, and other obstructions from interfering with the sensors.

Click here to enlarge image

YSI Inc.
Yellow Springs, OH
Tel: 937-767-7241

Pump monitoring

The Moyno Fluid Detection Control system ensures that pumps operate within design parameters, protecting them from over-pressure, run-dry conditions and loss of seal water. Designed primarily for use with the company's progressing cavity pumps, the control works equally well on high- and low-viscosity fluids, suspended solids, and abrasive, corrosive and volatile liquids.

Click here to enlarge image

Moyno, Inc.
Springfield, OH
Tel: 937-327-3194

Reservoir management system

Severn Trent Services offers the ClorTec™ Reservoir Management System (RMS) to eliminate reservoir water quality problems associated with thermal stratification, stagnation, and blending of different water qualities within reservoirs or ground storage tanks.

Click here to enlarge image

Severn Trent Services
Campbell, CA
Tel: 800-524-6542

Camera system

Pearpoint has launched its P374 Intrinsically Safe MiniCam. Approved, labeled and listed as intrinsically safe for inspection and entry to Zone 0, T6 environments, it is ideally suited for industrial and small commercial inspections. The camera is a fully self-contained unit for inspections in lines 1 in. to 4 in. with a range of 200 feet. Features include: 360 TVL resolution, CMOS camera technology, sapphire glass, maintenance free white LEDs, and manually set focus.

Click here to enlarge image

Pearpoint, Inc.
Thousand Palms CA
Tel: 760-343-7350
