Products & Services: Disinfection

Oct. 1, 2017
Collection of disinfection related equipment products and services.
Chlorine ton scale

The Chlor-Scale® Ton Container Scale from Force Flow provides an accurate and reliable way to monitor the amount of chlorine used in your disinfection process. Knowing the exact amount fed allows you to document that target disinfection levels have been consistently met. Knowing how much chlorine remains in the tank also helps prevent running out of chemical and stops the costly mistake of tanks being sent back to the supplier with chlorine still in them. The steel rectangular tube platform is robotically welded then epoxy-powder-coated to insure maximum strength for safety and durability. Electronic and hydraulic versions available.

Force Flow

Passive water filtering system

US Water Systems’ Silecte™ quantum disinfection system uses an exclusive elemental P-type semiconductor technology to kill 99.99% of bacteria and other microorganisms in water, including E. coli and P. aeruginosa. The media requires no electricity and adds no chemicals to the water, making it one of the safest, most cost-effective systems available. Quantum disinfection works by removing the electrons of bacteria and other microorganisms and killing them completely. Silecte™ also works quickly, needing just 0.01 seconds of contact time, requires little maintenance, and offers proven results.

US Water Systems

Total chlorine and free chlorine analyzers

The advanced modular TC80 Total Chlorine and FC80 Free Chlorine Analyzers from Electro-Chemical Devices combine plug-n-play capability for fast setup, highly reliable accuracy and replacement sensor cartridges for economical maintenance. The measurements of both total chlorine and free chlorine are vitally important in the effective operation of water disinfection systems. ECD’s intelligent TC80 and FC80 Sensors offer reliable measurement of both parameters along with its modular two-channel T80 Transmitter/Analyzer. Both the TC80 and FC80 Analyzers are compliant with EPA method 334.0 for measuring drinking water.

Electro-Chemical Devices

Phosphorus analyzer

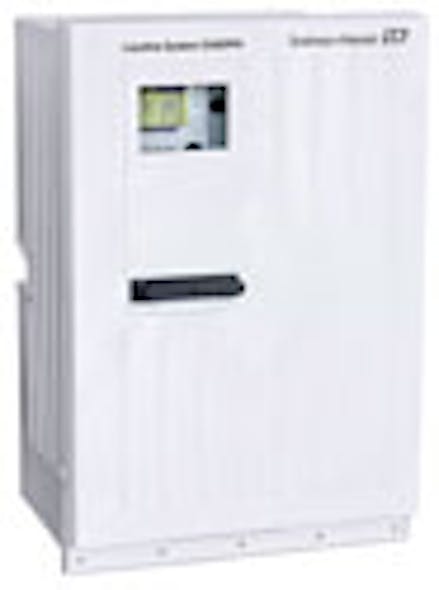

Endress+Hauser’s Liquiline System CA80PH orthophosphate analyzer for monitoring water treatment processes is available in four measuring ranges. Two use the standard molybdenum (blue method) for low-range measurement down to 50 μg/L, and two use the molybdate vanadate method (yellow method) for high-range measurements up to 50 mg/L. The CA80PH automatically obtains a water sample from the process, filters it, adds the reagent, measures the intensity, and then cleans the sampling system with compressed air or water in preparation for the next test.

Endress + Hauser

Gas chlorinator

The REGAL™ Gas Chlorinator from Chlorinators Incorporated is used to disinfect drinking water, wastewater, industrial process water and more. Using 100% chlorine, it provides a consistent chlorine residual. The all-vacuum system virtually eliminates problems associated with pressure-type manifold systems and is directly mounted on a cylinder or ton container with the strongest yoke in the industry. The Chlorinator is assembled by hand, tested by skilled technicians and is easy to maintain and clean. It reduces maintenance and improves operation.

Chlorinators Incorporated

Chemical analysis, controls

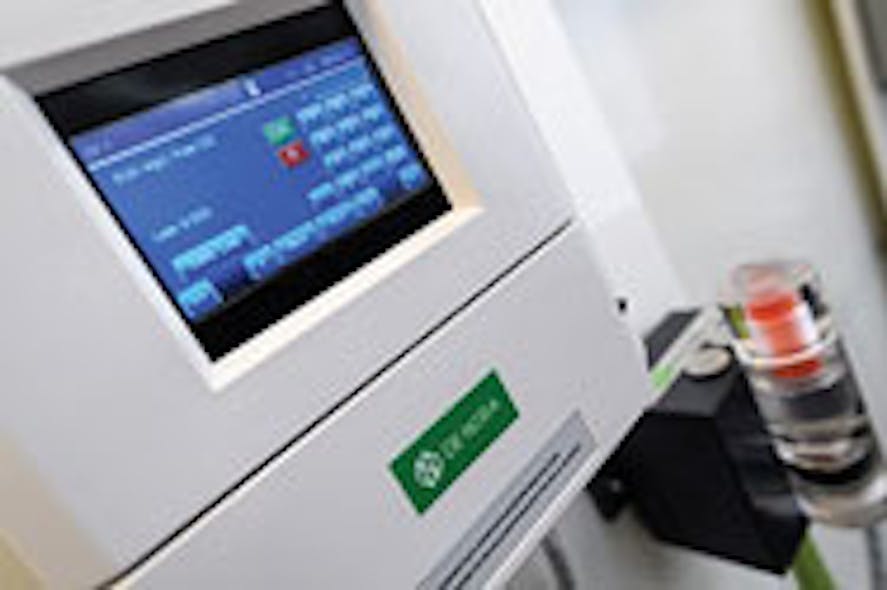

De Nora Capital Controls® MicroChem 3 is an analyzer and controller that can be combined with the company’s range of wet ends to simultaneously measure and control any combination of chlorine, chlorine dioxide, pH, ORP, conductivity, and flow. The device features multiple parameters that can be used as an analyzer, controller, or both at the same time. USB connectivity gives you the flexibility to change setup and measurement parameters quickly. Data management options allow you to more easily manage and understand your plant operations. An intuitive touchscreen user interface is equipped with six different language options.

De Nora
