ShowCase

July 11, 2016
ENDRESS+HAUSERThe Memograph M RSG45 Data Manager is a compact device that can serve as a data acquisition system for small process control applications. The RSG45 acquires up to 14 discrete and 20 universal/HART analog inputs from process sensors, displays sensor data on its 7-inch multicolor TFT screen, records the data internally, performs math calculations and alarm checks, and transmits the data to a PC or any control system via Ethernet, RS232/485, Modbus, Profibus D, or PROFINET digital communication links. Data can also be stored to a device plugged into the USB or the SD port.www.us.endress.com
AMERICAN FIBERGLASS TANK REPAIRExtend tank service life with state-of-the-art anti-corrosion protection from American Fiberglass Tank Repair (AFTR). Better-than-when-new tank lining systems utilize today’s resin and veil components to upgrade existing tanks beyond their factory standard coatings. Working with manufacturers, AFTR’s technical engineers pinpoint the latest resin and veil formulations compatible with existing tank substrates. AFTR works with custom-blended isophthalic and terephthalic polyester, vinylester, and epoxy resins, as well as over 45 fiberglass mat, chopped strand, Nexus, Harlar, and carbon veil laminates. Specializing in fiberglass tanks, AFTR offers tank linings, repair, inspection, insulation, and nozzle repair.www.americanfiberglasstank.com
AQUARIUS SPECTRUM LTD.The iQuarius smartphone leak detection solution combines an Android app with an acoustic widget, a sensor that creates a powerful system that can perform: pipe listening (allows listening and recording of low-frequency sound vibrations), acoustic survey (a GIS-based acoustic logging that measures the vibration intensity in water pipes: the noise is recorded and sent to the server for analysis), and acoustic correlation (enables the correlation between two mobile sensors, allowing the user to pinpoint the exact location of a leak). iQuarius is ideal for service teams that can use it for both leak surveys and pinpointing. The iQuarius app is available on Google Play.www.aquarius-spectrum.com
NEPTUNE TECHNOLOGY GROUPNeptune’s E-Coder R900i combination absolute encoder register/radio frequency meter interface unit makes it easy to migrate from walk-by to mobile to fixed network data collection while offering advanced smart metering. The E-Coder R900i’s two-way communications and interleaved mobile and high-power fixed networkmessages eliminate the need for site visits or reprogramming and reduce AMI infrastructure costs—all with 96 days of hourly data logging and an easy-to-install wireless package.www.neptunetg.com
SMITH & LOVELESSThe exclusive design of the Smith & Loveless (S&L) Non-Clog Pump lends itself to significant energy efficiency savings for wastewater and stormwater pumping. S&L Non-Clog Pump design features an oversized, stainless steel pump shaft that minimizes overhang, resulting in significantly less shaft deflection and greater pump efficiencies. Close tolerances are in all cases tighter than NEMA specifications. The impeller is also designed for maximum efficiency. By trimming the impellers inside the shrouds, the S&L pump leaves the back shroud full diameter to prevent stringy material from winding around the shaft.www.smithandloveless.com
VIVAX-METROTECH CORP.Vivax-Metrotech offers the tracer gas leak detector HL5000-H2, which can also be used with acoustic sensors. This leak pinpointing system saves the cost of having a second device. Its ease of use and special features make it a versatile instrument suitable for the toolbox of anybody in the leak detection business. Use of tracer gas—proven in the industry—is often the last option to find very small or difficult water leaks even in low pressure situations. The same techniques can be applied to other utilities without interrupting any supply.www.vivax-metrotech.com
THE TORO CO.The Toro Co. is adding five new 0.75-inch rotor models to its best-selling T5 RapidSet Series rotor product line. This includes the Shrub, Shrub Effluent, 12-inch High Pop, 12-inch High Pop Effluent, and Lawn Effluent models. The tool-free arc adjustment of the patent-pending RapidSet feature allows the arc orientation and angle to be quickly set or changed through a straightforward combination of twists of the nozzle turret. The T5 RapidSet rotor’s unique slip clutch makes the no tools arc adjustment possible, while also protecting the turret gears and components from damage. The rotor can be adjusted to cover arcs of 40–360 degrees. Similar to the T5 RapidSet lawn model, which was introduced early last year, the Shrub and High Pop models also feature Toro’s Airfoil Technology nozzles. The nozzles’ geometries are specially designed for the T5 and create a low pressure zone just beneath the nozzle openings, which delivers a better up-close watering profile and leading overall distribution uniformity.www.toro.com/T5
SCHAFFNER USAECOSine Passive Harmonic Filters remove specific orders of harmful harmonics (found in many manufacturing/processing environments) before they can cause any damage. By eliminating for harmonics, ECOSine passive harmonic filters protect sensitive electronics and ensure a longer service life. They are ideal for a variety of industrial applications such as variable frequency drives, motors, pumps, UPS, HVAC equipment, and more.www.schaffnerusa.com
AMTECH TANK LININGDuraChem 580 series lining systems extend the service life of new and existing potable water, wastewater, fire suppression water, or chemical containment vessels through “best-in-class” poly lining technology. Sprayed up at high temperature, DuraChem linings cure instantly, bonding to the tank substrate. Unlike older coating technologies, DuraChem 100% solids linings have flex and elongation characteristics, which allow for tank expansion, contraction, and movement without disbonding. Suitable for steel, concrete, and laminate tanks, Amtech’s DuraChem tank lining systems are formulated to exceed industry standards.www.amtechtanklining.com
HERMANN SEWERIN GMBHThe AQUAPHON A 50, a Hermann Sewerin GmbH system for professional electro-acoustic leak detection, includes a compact, handy receiver for prelocating and pinpointing leaks. The small, lightweight, and compact A 50 receiver has everything needed to electro-acoustically locate leaks in water pipe networks. This product is the reasonable, entry-level model for professional acoustic water leak detection. It completes the portfolio of devices previously developed by Sewerin in the water product segment.www.sewerin.com
BLUE-WHITE INDUSTRIESBlue-White’s Proseries-M MD-3 Chemical Metering Pump provides precision chemical metering for the treatment of municipal water and waste water. The Hybrid MD-3 Diaphragm Metering Pump has 2,000:1 turndown and provides smooth chemical dosing with no pulsation dampener required. With 380 strokes per minute, the Proseries-M MD-3 provides a remarkably steady flow. The MD-3 is built to provide long service life at high pressures, and no pressure regulator is needed. The patent-pending design is 50% more energy efficient than similar units now on the market. Straightforward all-inclusive ordering: A single model includes all necessary components for installation.www.blue-white.com

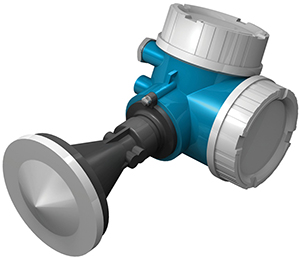

XYLEM INC.High-accuracy, simple SDI-12 communication and advanced design are just a few features of the new WaterLOG Nile Series (Nile 502, Nile 504, Nile 517) radar water level sensors, released this week by WaterLOG—a Xylem brand. The Nile series operates based on the time-of-flight method. Radar impulses are emitted by an antenna, reflected off the product (water surface), and received again by the radar system. This provides the most precise measurement data in water level applications requiring non-contact transmission. This series of WaterLOG instruments is designed to be mounted on the side of bridges or other enclosuresabove surface water. The rugged, innovative design was built for extreme environmental conditions—making this series ideal for tough to reach sites.www.waterlog.com/nile
CRANE PUMPS & SYSTEMSPre-assembled Barnes Fiberglass Lift Stations provide a custom solution for applications ranging from residential, commercial, industrial construction, aged lift stations, and housing developments. They are available in Pipe Rail Simplex/Duplex and Hard Piped Simplex Systems and are offered in a wide range of sizes. Other selection options include simplex/duplex design, pump, cover, and control panel. Stations can be purchased with or without a pump; a selection of Barnes sewage ejectors, effluent, grinder, or sump pumps are available. The online configurator tool and technical sales staff makes the configuration process easy to select the right components for each unique application.www.cranepumps.com
ACLARASTAR ZoneScan is the industry’s leading, remotely correlated acoustic leak-detection system that cost-effectively identifies small leaks before they become big problems. The system combines acoustic data loggers with Aclara’s STAR Network technology to provide fully integrated leak detection through fixed-network advanced metering infrastructure. Time-synchronized sound recordings are initiated through the STAR ZoneScan transmission unit, which sends the resulting data back to the utility through fixed-network infrastructure. Web-based application software correlates the data between loggers and provides visual identification of high-probability leak locations.www.aclara.com

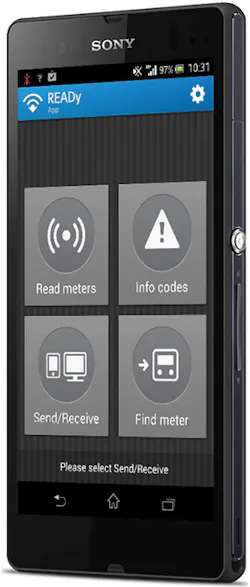

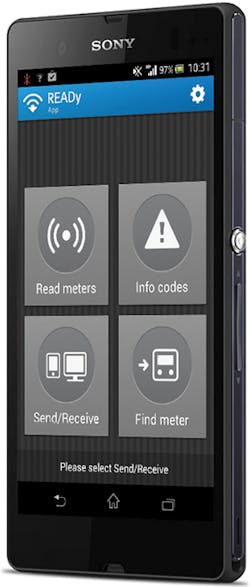

KAMSTRUPWater utilities around the world have improved the efficiency of their meter reading operations, reduced costs, and increased revenues using Kamstrup’s flowIQ smart water meters and automated meter reading (AMR) system. The AMR system—called READy—turns a smartphone or tablet into a meter reading device. Using Google Maps, READy locates all meter points and reads the meters while you drive.www.kamstrup.com
ENVIRONETICS INC.Defender Tank Covers are custom manufactured from industrial grade materials to fit the profile of new or existing wastewater treatment tanks or potable water tanks. Odorous gas emissions from wastewater treatment facilities generate complaints from local residents and are subject to the Clean Air Act Amendments of 1990. Defender odor control covers contain volatile organic compounds at their source. Low-profile structurally supported covers minimize emission treatment volume to reduce the cost of air filtration equipment. Eliminate the ongoing expense of applying costly odor control chemicals through atomizer and misters.www.environeticsinc.com
