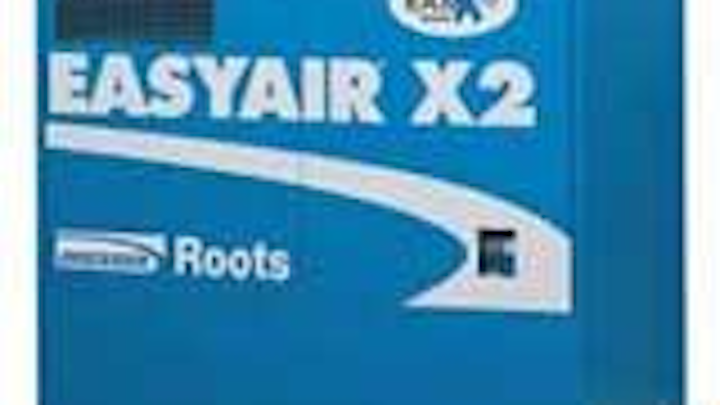

A new factory-engineered blower package, designed to be smaller, lighter, quieter, more powerful and more energy efficient, has been introduced by Dresser Roots.
A new factory-engineered blower package, designed to be smaller, lighter, quieter, more powerful and more energy efficient, has been introduced by Dresser Roots. The EasyAir X2 is a compact, pre-assembled, skid-mounted blower unit with all piping, valves, and instrumentation in place. Produced for both vacuum and pressure applications, the new package features a powder-coated noise enclosure for durability and quiet operation plus easy access for service/maintenance. The second-generation, self-contained blower package is available with a wide range of optional equipment and can be designed to meet exact customer requirements.
Water quality monitoring
Hanna’s new HI 9828 multiparameter portable meter with GPS receiver monitors up to 13 different water quality parameters (6 measured, 7 calculated). Measurements from specific locations are tracked with detailed coordinate information that can be viewed immediately on the display. GPS information can be transferred to a PC using the company’s HI 929828 software. GPS information can also be viewed by mapping software such as Google™ maps. Clicking on visited locations displays measurement information. The company’s exclusive Fast Tracker™—Tag I.D. System monitors and records data using iButtons that can be installed at any number of sampling sites.
Hanna InstrumentsWoonsocket, RI
Water quality monitoring
Ideal for testing water in the field or lab, the Ultrameter II from Myron L measures six water quality parameters: conductivity, resistivity, TDS, pH, ORP, and temperature. It is lightweight, portable, waterproof, buoyant, easy to calibrate, and easy to use. Simply rinse and fill the cell cup with sample, then press a parameter button. You get instant, objective numerical results on a four-digit LCD screen. The meter stores up to 100 date/time stamped readings in nonvolatile memory. Users can download stored readings to a computer with the optional uDock™ for data entry, analysis, and reporting.
Myron L. Co.
Tel: 760-438-2021 Web: www.myronl.com
Krohne has introduced the Enviromag 2100 magnetic flowmeter, which is targeted at common applications in the water and wastewater industries. The meter’s IFC 100 converter offers an attractive price/performance ratio, including diagnostic capabilities not found in other basic converters. The converter offers precise diagnostics of instrument, installation and application. The unit is available with the converter mounted directly on the flow tube as a compact meter in two versions: for horizontal installations a 45º angled display for optimal viewing or a flat version is ideal for vertical pipes. A wall or pipe mounted version is also available. All versions share a rugged metal enclosure, a large backlit display for excellent readability and a push-button soft-keypad for ease of operation, start-up or configuration. The sensor’s design incorporates a polyurethane or hard rubber liner with field- replaceable SS or HC4 electrodes and boasts a 2000:1 turndown with rapid response time and no obstructions.
Krohne Inc.Tel: 978-535-6060
Caterpillar has introduced the G3520C 50 Hz Low Energy Fuel Package Generator Set for use with methane fuels found in digesters and other low-energy biogas environments. Built on the G3520C platform, the generator set includes equipment that optimizes the performance of engines in parallel-to-grid, continuous-operation applications that use corrosive, low-energy gases. The generator set offers several features to extend engine life while maximizing performance, including stainless-steel, corrosion-resistant aftercooler cores, 110° C jacket water outlet temperature and crankcase air cleaners. An optional positive-crankcase ventilation system is available.
Caterpillar Inc.Peoria, IL
Lakewood Instruments has introduced WebNode for use with new and existing 2000 Series Process Controllers. The system allows network or Internet based remote communications from a Windows based PC with use of the current version of Lakewood Remote Windows Software (LRWS). Since the node is its own WEB Server, communications with a controller can be accomplished anywhere there is Internet access. For around $250, users can add a WebNode to any Model 2000 base unit; this includes existing 2000s to convert them from phone lines to Internet-based remote communications. The independent device does not require “fees” to keep it operational and connected.
Lakewood InstrumentsMilwaukee, WI
GSE manufactures polyethylene geomembranes consisting of high density polyethylene (HDPE) and linear low density polyethylene (LLDPE) which are used as barriers in containment applications in the wastewater treatment process. Polyethylene geomembranes exhibit excellent chemical resistance and UV resistance properties. The company’s polyethylene geomembranes have been used in a wide array of applications including water storage and treatment lagoons, sedimentation basins, grit chamber liners, flow control vertical baffles, floating covers, corrosion and erosion protection of concrete structures. Its HDPE geomembranes are best suited for high wear, exposure to harsh liquid conditions, and exposed applications, and they are available in a NSF-61 certified formulation.
GSE Lining Technology, Inc.
Rohrback Cosasco Systems (RCS) has introduced the Checkmate™ DL, a new portable handheld instrument that allows the user to read corrosion data from a data logger or Remote Data Collectors (RDCs) and then transfer the data directly to a computer for graphing and corrosion analysis. Like its predecessor, the instrument is compatible with all the corrosion data loggers and remote data collectors in the RCS range of products including all Corrosometer® and Corrater® Remote Data Collector units and Microcor® Data Loggers. For non hazardous areas, a portable PC can configure and retrieve data from data loggers or RDCs. In hazardous areas classified as Class I, Zone 1 or Class I, Zone 2, the portable handheld Checkmate™ instrument is a safer option. Since the transmitter and data logger are explosion proof and intrinsically safe, the entire corrosion monitoring system is deemed safe through each step in the process.
Rohrback Cosasco Systems
Santa Fe Springs, CA
