New Products

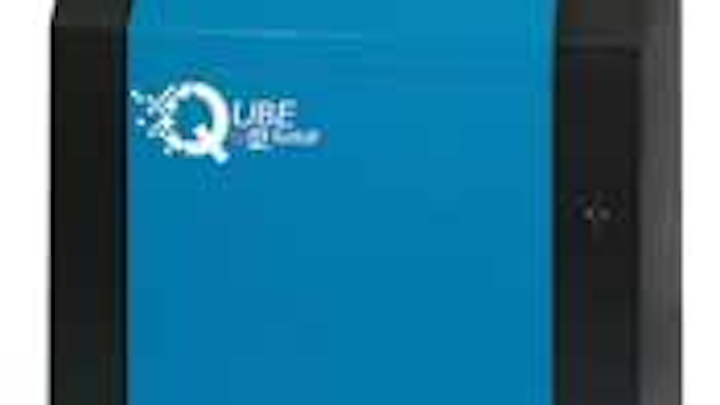

The Qube by Tuthill, featuring the new Qx blower, is a low-cost, quick delivery solution for pneumatic conveying, wastewater aeration and more.

Aug 1st, 2008
Th 292560

Blower package

Click here to enlarge image

The Qube by Tuthill, featuring the new Qx blower, is a low-cost, quick delivery solution for pneumatic conveying, wastewater aeration and more. Benefits include high efficiency with low noise (< 75 dBA); up to 18 PSI; a compact footprint; and a powder coated steel enclosure* (24 dBA attenuation). Additional features include integral check valve; discharge from back; and discharge flexible connector.
Tuthill Vacuum & Blower Systems
Springfield, MO
Tel: 800-825-6937
Web: http://vacuum.tuthill.com

Fixed-base AMR

Click here to enlarge image

Neptune’s ARB FixedBase System provides daily time-synchronized, system-wide reading from all MIUs — supporting non-revenue water and conservation initiatives — while addressing off-cycle readings for high water bill complaints and move-ins/move-outs. The system offers auto-discovery over the network, allowing utilities to confirm communications and proper MIU and register operation before leaving an installation site.
Neptune Technology Group Inc.
Tallassee, AL
Tel: 800-633-8754
Web: www.neptunetg.com

Vertical turbine pumps

Click here to enlarge image

ITT Goulds Pumps recently introduced a complete series of larger vertical turbine pumps. Designated the M Series, the pumps are designed for a wide range of water/wastewater applications, including: raw water intake, deep well, pressure boosting, filter backwash, transfer, as well as final effluent. While all of the M Series are vertical turbine pumps, the MVC is a can-type and the MVS is a submersible model. The MVT-FF, MVC and MVS models all feature a common bowl assembly design.
ITT Goulds Pumps
Seneca Falls, NY
Tel: 800-734-7867
Web: www.gouldspumps.com

Chlorine monitoring

Click here to enlarge image

Palintest offers the ChloroSense® portable reagent-free chlorine measurement system, which uses a unique electrochemical sensor to measure free and total chlorine simultaneously in a potable water sample, along with temperature. After the water sample is collected and a sensor inserted, the testing process is completely automated and accurate within a range from 0.02 to 100.0 mg/l. The system offers a simpler and less technique-dependent method for chlorine testing than standard DPD testing.
Palintest Ltd
Erlanger, KY
Tel: 800-835-9629
Web: www.palintest.com

Level loggers

Click here to enlarge image

The days of disposable liquid-level data loggers are over. Keller has begun offering the DCX-ECO, which uses accumulator cell technology to provide a rechargeable, autonomous level logger. The power cell is charged via USB connection during data retrieval. The logger features a small, 18mm (0.71 inch) diameter stainless steel housing, making it ideal for a wide array of long and short term liquid level monitoring applications.
Keller America
Tel: 877-253-5537 Web: www.kelleramerica.com

Electric motors

Click here to enlarge image

The recently signed Energy Independence and Security Act (EISA) will require industrial electric motors of 1-200 hp to meet NEMA Premium® efficiency levels by December 2010. Baldor Reliance premium efficient Super-E® motors, in stock now, offer performances meeting or exceeding EISA levels. Custom Super-E designs are available through 15,000 horsepower.
Baldor Electric Co.
Fort Smith, AR
Tel: 479-646-4711 Web: www.baldor.com

Pipe, cable locators

Click here to enlarge image

Radiodetection has launched the RD7000 and RD8000 range of pipe and cable locators. The locators are ergonomically designed and lightweight. The receiver and transmitter feature a large, high contrast, backlit LCD screen that provides the user with clear information in any light conditions. The locators are Centros™ Enabled. Centros™, is a measurement engine that combines new and innovative algorithms with established software on a high-performance processor core. The RD8000 is the high-end feature model designed for multiple applications and industries.
Radiodetection Ltd.f
Charlotte, NC
Web: www.radiodetection.com

Plastic, electronic flowmeters

Click here to enlarge image

Universal Flow Monitors has introduced a series of plastic-construction flowmeters for use with corrosive fluids in municipal water treatment. The new P420 Series of vortex-shedding flowmeters meets requirements of water treatment, water desalination and chemical operations for an inexpensive flow rate transmitter without moving parts. The electronic instruments have wetted parts entirely of polyvinyl chloride (PVC). The meters are available in five pipe sizes with maximum flow rates ranging from 12-200 gpm.
Universal Flow Monitors Inc.
Hazel Park, MI
Tel: 248-542-9635
Web: www.flowmeters.com

Odor control

Click here to enlarge image

Aulick Chemical Solutions has just introduced Sul-Fight, a non-hazardous solution that removes hydrogen sulfide and mercaptans on contact. The product was initially designed for preventing hydrogen sulfide corrosion and odor at locations such as manholes, lift stations, sludge holding tanks, and air scrubbers. However, after conducting several studies, the company discovered the product reduces hydrogen sulfide on contact when injecting directly into sludge prior to a belt filter press.
Aulick Chemical Solutions Inc.
Nicholasville, KY
Tel: 877-804-2616
Web: www.aulickchemical.com

Flowmeter

Click here to enlarge image

Blue-White Industries has redesigned its F-450N Series Flowmeter to make it more durable and, in the process, added some additional features. The meter is constructed of tough polysulfone material that resists high temperatures and pressures, and now features: 25% greater body wall thickness; half union connections which are now 40% larger; oversized o-rings for improved seal; and all wetted parts are now PVDF or polypropylene. The flowmeters feature an adjustable flow indicating marker and improved accuracy.
Blue-White Industries
Huntington Beach, CA
Tel: 714-893-8529
Web: www.bluwhite.com

Chlorination system

Click here to enlarge image

For over 30 years, Regal™ Gas Chlorinators, Sulphonators and Ammoniators have been used all over the world to disinfect and purify municipal drinking water and wastewater, industrial wastewater and more. The key to the safety, reliability and economy of the products is the simplicity of the design. Made with just 68 parts, the direct cylinder mounted, all-vacuum chlorinators are easy to maintain and clean, reducing down time and minimizing operating costs.
Chlorinators Inc.
Stuart, FL
Tel: 772-288-4854
Web: www.regalchlorinators.com

Penetrating fluid

Click here to enlarge image

To free seized or corroded assemblies, Henkel Corp. has introduced Loctite® Freeze & Release, a low viscosity, spray-on lubricant designed to shock-freeze metal parts, allowing lubricating oils to penetrate into rust layers. As the lubricant instantly freezes seized and rusted parts to -45 degrees F, hairline cracks form in the rust layer as the metal contracts. These cracks allow the product’s lubricating oil to penetrate by capillary action quickly and efficiently into the rust layer. After one to two minutes, the assembly is easy to dismantle. The product eliminates the need for cutting torches and die grinders.
Henkel Corp.
Rocky Hill, CT
Tel: 860-571-5100
Web: www.henkelna.com

Vibration switch

Click here to enlarge image

Hawk now offers the Gladiator Vibration Switch Series, a heavy-duty point level switch. The level sensing arrangement used in the Vibration Smart Switch is suitable for a wide range of liquids and solids, including slurries and pelletized materials. The sensing element includes two prongs or vanes. When the prongs on the fork are free to vibrate they are driven to their resonant frequency by piezo ceramic elements. As the level of the material to be sensed rises, the material blocks the movement of the fork. The electronics in the unit sense this change and produce an output which can be used for indication or control.
Hawk Measurement
Tel: 888-429-5538
Web: www.hawkmeasure.com

Bellows seal valves

Click here to enlarge image

Conval offers single and double bellows seal valves in standard sizes from ½" to 4" through ASME Class 2500 in Y-pattern, angle-pattern, and T-pattern body styles. These in-line serviceable, low operating torque valves are often specified when packed valves may not reliably contain fugitive emissions such as light gases or hazardous system fluids. In almost all applications, the 6-ply Inconel, welded bellows stem seal is more reliable than sliding stem seals. The Inconel bellows has been tested to MSS SP-117, and provides the longest cycle life in the industry. The double-height bellows provides the highest bellows valve flow capacity (Cv) available per pipe size.
Conval Inc.
Somers, CT
Tel: 860-763-3551
Web: www.conval.com

Radio modems

Data-Linc Group’s long-range, high speed 900 MHz radio modems, the SRM7210E, have received approval for use in hazardous environments requiring Class 1 Div 2 certification. The SRM7210E is known for enhanced RF technology that provides reliability over long distances with over-the-air data rates of up to 867 Kbps -- six times faster then standard Frequency Hopping technology, for distances up to 20 miles. The modems are compact and offer flexible mounting options.
Data-Linc Group
Bellevue, WA
Web: www.data-linc.com

Electric submersible pumps

Click here to enlarge image

Griffin Pump and Equipment offers a complete line of electric submersible pumps suited for clean water, gray water, or trash laden effluent. Electric submersible pumps are available for flows as low as a few gallons per minute to several hundred gallons per minute, with head conditions to several hundred feet. The pumps are fully self priming; available in 120 volt single phase or 460 volt 3 phase; offer run dry capability on some models; are available with control panels with float switch capability for automatic start/stop conditions; and are suited for tight working areas.
Griffin Pump & Equipment Inc.
Houston, TX
Tel: 866-770-8100
Web: www.griffinpump.com

Pressure gauge

Click here to enlarge image

The Ashcroft type 1279 Duragauge® pressure gauge coupled with types 100 or 200 diaphragm seals ensure long life and reliability despite harsh pressure media. A stainless steel movement and the as-welded Duratube™ Bourdon tube equip the gauge for countless pressure cycles without failure. This solid front, 4 ½" pressure gauge is available in dry, liquid filled or with the Plus!™ option to steady the pointer and protect the movement from vibration/pulsation without a liquid fill.
Ashcroft
Tel: 800-328-8258
Web: www.ashcroft.com

HDPE pipe

DuroMaxx pipe from Contech Construction Products exceeds existing HDPE pipe performance by offering RPE (Reinforced Polyethylene), an innovative process to introduce steel ribbing in the pipe resulting in higher strength, durability and flow rates in a watertight bell and spigot joint system. Suitable for drainage and detention applications, the composite structure creates a pipe with high strength and relatively low material mass.
Contech Construction Products
West Chester, OH Tel: 800-338-1122 Web: www.contech-cpi.com
