Sealless pump line
Known for over 60 years of manufacturing innovative non-metallic sealless pumps, Iwaki America has introduced its 316 stainless steel metallic sealless pump line. Iwaki Sanwa will feature two series of pumps: the MP series will feature flows to 340 gallons per minute while the smaller MMP series will be a fractional horsepower series of pumps with flows to 24 gallons per minute. Both series incorporate 316 stainless steel construction, a one-piece non-welded rear casing and silicon carbide “D” bearings allowing for limited dry run operation.
IWAKI America
www.iwakiamerica.com
Circle No. 218 on Reader Service Card
Software management solution
Using Neptune® 360™, a data management platform delivered as a service, water utilities can maintain their focus on the business of water. The system is accessible anytime, anywhere through an Internet connection, and critical information is available with just a few clicks. Utilities no longer need to rely heavily on their internal IT resources to maintain software and a server, and system updates are received automatically. Protected with the highest-level encrypted security, and equipped with disaster recovery and redundancy measures, Neptune 360 features an intuitive and user-friendly design.
Neptune Technology Group Inc.
www.neptunetg.com
Circle No. 219 on Reader Service Card
Wedge gate valves
Mueller expands its 350 psi, AWWA/UL/FM-rated resilient wedge gate valve (RWGV) product line with a new end design that conforms to the ASME/ANSI dimensional requirements for Class 250/300 valves. Specifically, the flange and lay length (end-to-end) of the new Class 250/300 RWGV complies with ASME/ANSI B16.1, B16.42, B16.10, and PN25 drilling standards. This ductile iron valve is available in standard sizes from 3 to 12 inches, complies with the requirements of AWWA C509/C515 and NSF 61/372, and retains all competitive features of other 350 psi rated RWGVs including integrated lift lugs, a self-activating wedge seal and grade 316 stainless steel fasteners.
Mueller Company
www.muellercompany.com
Circle No. 220 on Reader Service Card
Gripping pipe restraint
Krausz USA’s HYMAX GRIP 16” restraint coupling is the first restraint product of its size with four top-facing bolts and a stab-fit, one-piece design. The top-facing bolts eliminate under-digging for space to crawl under the pipe to tighten bolts while the stab-fit, one-piece design allows for easier and faster installation, eliminating problems such as losing bolts in the mud. The patented GRIP chain offers circular restraint around the pipe, unlike typical wedge-style restraints that point-load the pipe and make it weaker. The GRIP’s patented radial closing mechanism holds pipes tightly in place during installation, allowing full control over the gap between pipes.
Krausz USA
www.krauszusa.com
Circle No. 221 on Reader Service Card
Dewatering tools
Prime Solution offers the only dewatering device with patented screen technology, using simple pressure differential and friction resistance to provide superior dewatering at a lower cost and prolonged service life. Features include: minimal or no manpower required; low energy; one wear part, totally enclosed; small footprint in either press-only or full-skid system; high cake solids and excellent filtrate; and 20-year/10,000-hour warranty.
Prime Solution
www.psirotary.com
Circle No. 222 on Reader Service Card
Customized lifting solutions
Lightweight, portable and safe, the PORTA-GANTRY lifting system range is designed for easy transport, rapid assembly and safe use. Reid offers a range of configurations, lift ratings and personnel lifting options, including the world’s first WLL 5000 kg (5 tonne) capacity portable gantry. Features include: range of height of lift options to 5.8 m; beam lengths to 9,000 mm, with jointed options for ease of transport; simple height and span adjustment; full customization and bespoke solutions available.
Reid Lifting
www.reidlifting.com
Circle No. 223 on Reader Service Card
Dual-ball diverter system
The dual-ball diverter system from Titan Flow Control is designed with two stainless-steel balls that efficiently divert the pipeline flow from one basket chamber to the other. Teflon seats ensure a positive seal and help to prevent seepage into the chamber that is being serviced for cleaning. The dual ball design isolates each chamber and keeps the servicing chamber dry during cleaning. There are no special tools required to access and remove the straining element from the chamber.
Titan Flow Control
www.titanfci.com
Circle No. 224 on Reader Service Card
Filter press
Filter presses from Evoqua are used extensively in municipal applications in the treatment of potable water. Applications include dewatering of lime softening sludge, and dewatering of various coagulant sludges generated from removal of suspended solids.
Evoqua Water Technologies
www.evoqua.com
Circle No. 225 on Reader Service Card

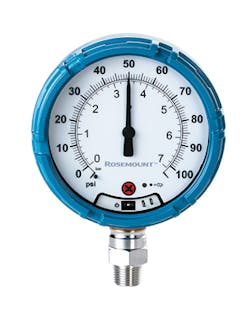

Wireless pressure gauge
Emerson Automation Solutions has introduced the industry’s first WirelessHART® pressure gauge. The Rosemount Wireless Pressure Gauge enables remote collection of field data, keeping operators updated on changing field conditions and improving personnel safety by reducing manual operator rounds and field exposure. It utilizes field-proven piezoresistive sensor technology to deliver reliable pressure readings. With the flexibility to accommodate changing process conditions, the Wireless Pressure Gauge also gives up to 150X overpressure protection compared to traditional gauges, which provides for a safer field environment by using two layers of process isolation.
Emerson
www.emerson.com
Circle No. 226 on Reader Service Card
Free space radar level transmitters
Endress+Hauser’s FMR10 and FMR20 free space radar level transmitters measure liquid levels in storage tanks, open basins, open channels, weirs and canal systems. The FMR10 measures liquid levels at ranges up to 16 feet with 0.2-inch accuracy, while the FMR20 measures levels up to 66 feet with 0.08-inch accuracy. Both work in process temperatures of -40 to +176°F and process pressures of -14 to 43 psi, are vibration resistant, and have CSA/UL approvals.
Endress+Hauser
www.us.endress.com
Circle No. 227 on Reader Service Card
Water quality monitoring at all levels
LG Sonic has been working on the development of a new solution, MPC-Lab, to monitor water quality at different depths in a water body. LG Sonic MPC-Lab will combine the most innovative methods to monitor water quality and can be pre-set to take samples from different depths and measure any parameters on the platform. For data transmission with the MPC-View water quality software, the system will use GPRS, 3G, or satellite. The software provides real-time insights into water quality and allows users to set up specific alarms to inform about changing parameters or maintenance activities.
LG Sonic
www.lgsonic.com
Circle No. 228 on Reader Service Card
Basin package system
Weil Pump, A Wilo Company, now offers heavy-duty package systems that are fully customizable with high-quality components that can be built to order in as little as two weeks. Weil’s package systems come standard with a fiberglass basin with a reinforcement band that increases structural integrity by nearly 200%, pumps, removal system, controls and cover. The package provides a convenient solution to the concerns that arise with working in confined spaces, as it comes pre-assembled to the job site and is simple to install, thanks to easy-access lifting handles and threaded inlet and outlet openings.
Weil Pump
http://weilpump.com
Circle No. 229 on Reader Service Card
Biomethane analyzer
The new BIOMETHANE 3000 fixed analyzer from Q.E.D. Environmental Systems is designed for high-accuracy methane and oxygen readings for biomethane applications. The analyzer is ideal for biogas upgrading; anaerobic digestion of agricultural, farm and mixed food waste; sewage and wastewater treatment anaerobic digestion; vehicle fuel anaerobic digestion; and other biomethane production applications. The BIOMETHANE 3000 helps users maximize operational efficiency by optimizing the anaerobic digestion process. It provides continual measurement of methane, carbon dioxide and oxygen with a user-definable fourth gas reading of hydrogen sulfide, hydrogen or carbon monoxide.
Q.E.D. Environmental Systems Inc.
www.qedenv.com
Circle No. 230 on Reader Service Card
RO system
Protec-Arisawa’s Center Port RO with feed/concentrate ports in center as well as ends allow more flexibility in the design of the RO array. Splitting flow allows for a membrane array that avoids having high-feed flow and corresponding pressure drop in the membranes. By using shorter membrane length of 3 or 4 membranes and distributing the feed flow to the membranes in a more efficient manner, operating pressures can be reduced.
Protec Arisawa America Inc.
www.protec-arisawa.com
Circle No. 231 on Reader Service Card
Wireless valve monitoring technology
Rotork’s RI Wireless is an end-to-end solution of wireless valve monitoring. It provides real-time full-range position indication to the control system and enables predictive maintenance on actuated valves. The system is field-proven in a variety of industries and applications and has been shown to drive CAPEX and OPEX reduction while increasing safety and productivity. The position sensor can be adapted to any valve or valve-and-actuator combination. The associated scalable mesh network provides redundancy and is easily configured and integrated to standard automations systems: PLC, DCS, SCADA.
Rotork
www.rotork.com
Circle No. 232 on Reader Service Card
