Grooved-End Coupling System Eases Pipe Connections

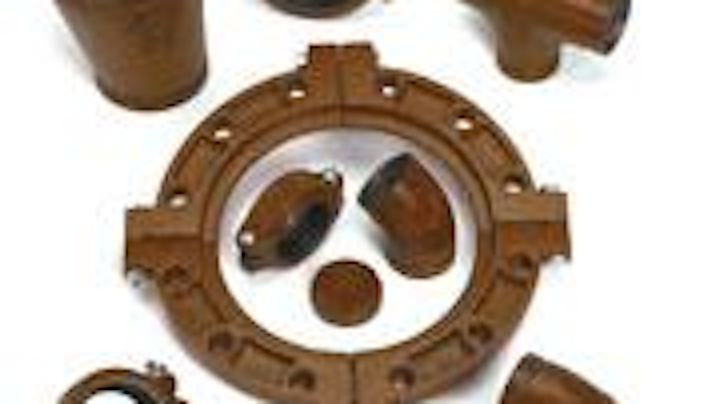

The new grooved-end Gruvlok® System of couplings, flanges and fittings, manufactured by Anvil International, is designed to comply with ANSI/AWWA C606 Grooved and Shouldered joint specifications.

Th 133722
Th 133722
Click here to enlarge image

The new grooved-end Gruvlok® System of couplings, flanges and fittings, manufactured by Anvil International, is designed to comply with ANSI/AWWA C606 Grooved and Shouldered joint specifications.

The system offers a host of benefits that provide cost and time savings, as well as greater design flexibility, for contractors and municipalities.

The concept of a grooved system starts with a groove cut into ductile iron pipe. This groove provides a gripping area for the coupling to engage around the full pipe circumference.

A specially formulated elastomer gasket is fully enclosed by the ductile iron housings, with coupling housings joined by plated carbon steel track bolts.

The system is compatible with AWWA ductile iron pipe and accommodates cement, epoxy or other pipe linings.

The Gruvlok line consists of a selection of couplings, flanges and fittings in 3'' through 24'' sizes with operating pressures as high as 500 psig. The heart of the system is the 7901 AWWA coupling.

For most size connections, just two bolts are needed to assemble each joint. The coupling housings, designed for optimum strength without excessive casting weight, are cast ductile iron per ASTM A536.

Th 133724
Grooved piping can easily pass through wall sleeves
Eliminates special design consideration
Click here to enlarge image

The cast ductile iron 7912 flange, with two halves from 3'' through 12'' in size, are hinged and drawn together by a latch bolt which eases assembly onto the pipe. The 14'' through 24'' sizes consist of four segments with overlapping bolt holes for increased joint strength. The flange gasket provides a pressure responsive gasket on both the pipe and the mating flange.

Th 133725
Allows fitting rotation for alignment
Accommodates angular offset of pipes
Number of bolts greatly reduced
Click here to enlarge image

The AWWA flanges have designed in anti-rotation tangs, which bite into and grip the side of the pipe groove to provide a rigid connection. Most sizes use a swing-over hinge with a latch bolt for quick assembly.

Th 133726
Convenient joint permits easy assembly and disassembly
Click here to enlarge image

The system uses molded Halogenated Butyl flush gap gaskets specifically designed for the rough surface of ductile iron pipe and ideal for water service that can be used in temperatures ranging from -20° to 200°F. The gaskets respond to increasing pressure by increasing the sealing force to provide a leak-tight seal on the rough surface of ductile iron pipe.

Application Scenario

Among the many benefits of Gruvlok® piping in municipal water/wastewater treatment plant applications is faster and easier disassemblies, reinstallations and retrofits.

A common scenario in the wastewater industry is when a faulty pump needs to be fixed and is in a location that requires part of the piping system to be taken apart.

This often entails backing a winch truck or a crane into place in order to remove the existing pump and valves.

This process can cause extended downtime for the facility and result in expensive labor costs.

Gruvlok® piping, on the other hand, allows for fast disassembly without disturbing adjacent parts of the system. Quick access is realized via the removal of just two bolts on systems up to 12'' and only four bolts per joint on systems up to 20''.

There is never a need to wedge joints apart, and undamaged couplings, gaskets and fittings can be reused. In addition, the grooved piping method reduces fitting weight by as much as 30 percent.

The lighter system trims hoist requirements and can reduce manpower required for retrofit work and system maintenance.

Once maintenance or piping changes have been made the pipe and components can be reassembled. Since the grooved method does not require two-holing the joints, the reinstall is accomplished faster than traditional methods.

Pipe can be prepared for the grooved couplings either in the field or the shop. A simple adjustment to the pipe end groove makes any pipe connection rigid, or allows controlled axial movement and deflection to accommodate thermal expansion/contraction, ground settlement and seismic activity.

The couplings allow full 360° pipe rotation, which allows for infinite alignment opportunities — especially important for tees, laterals, valves and equipment.

It also allows for rotation of pipes to equalize internal wear.

Gruvlok® is backed by Anvil International, a manufacturer of pipe fittings, hangers and grooved piping products based in Portsmouth, NH. The company's lightweight grooving machine is available for sale or as a rental with a rent-to-own option.

More information on its grooved piping products is available at

The site contains downloadable specifications and an interactive submittal package.
