Hawk has introduced an interface level system using a sonar transducer for level control.

Th Ps Sludge 01

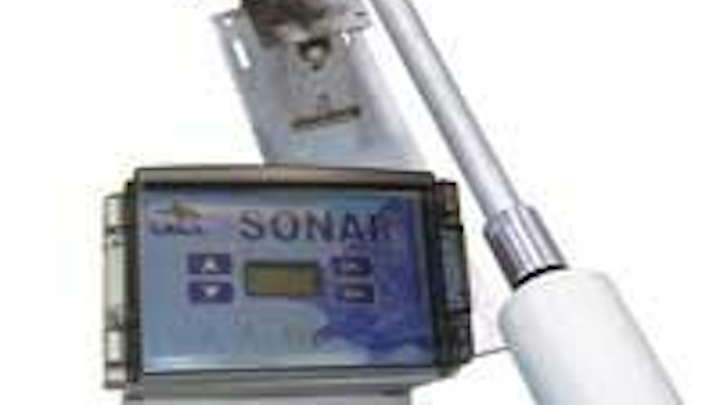

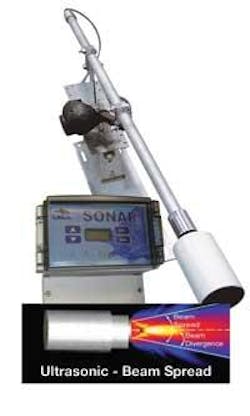

Sonar level control

Th Ps Sludge 01
Click here to enlarge image

Hawk has introduced an interface level system using a sonar transducer for level control. The Orca Sonar system is designed for improved sensing of interface levels in clarifiers and thickeners. The new sensors offer improvements in overall power, penetration, and calibration density range. They perform under high suspended solids loading, “sliming” and generally upset process conditions.

Hawk Measurement
Tel: 888-429-5538 Web: www.hawkmeasure.com
Circle No. 223 on Reader Service Card

Sludge drying

Th Ps Sludge 02
Click here to enlarge image

Kruger, a Veolia Water Solutions & Technologies company, has enhanced the effectiveness of solar sludge drying by coupling two well-known processes: air drying and aerobic fermentation. Its automated SOLIAMIX™ windrow turner aerates the biosolids and promotes fermentation which produces heat to aid the drying process. Biosolids windrow utilization maximizes the drying surface area. The SOLIA™ process produces an end product that reduces the amount of biosolids, minimizing disposal costs.

Kruger Inc.
Cary, NC
Tel: 919-677-8310
Web: www.krugerusa.com
Circle No. 225 on Reader Service Card

Level transmitter

Th Ps Sludge 03
Click here to enlarge image

The Model 675 submersible level transmitter from AMETEK PMT Products is designed specifically for slurries and highly viscous environments where clogging of the sensor is possible. It uses a 3.5" flush diaphragm within a stainless steel shark cage to prevent unwanted clogging of the sensor area. The instrument is made of 316L stainless steel, is able to perform in depths up to 138 feet of water and is approved for intrinsically safe operation in hazardous locations, including lift stations, sewage level measurement, slurries, storm runoffs and pump control.

AMETEK PMT Products
Feasterville, PA
Tel: 215-355-6900
Web: www.ametekpmt.com
Circle No. 226 on Reader Service Card

Dewatering system

Eimco Water Technologies’ CINETIK™ Linear Electro-Dewatering system dewaters and reduces pathogen levels in sludge, using less energy and less space than other systems. Installed in a WWTP after existing mechanical dewatering equipment, the system allows for high dryness levels (30-50% TS), even for secondary and mixed biological sludge. The technology is based on the combined action of controlled mechanical pressure and electro-osmosis, where a continuous current is applied to electrodes, liberating and carrying away the water bonded to hydrophilic particles.

Eimco Water Technologies
Web: www.glv.com
Circle No. 224 on Reader Service Card

Solids grinder

Th 319588
Click here to enlarge image

The Super Shredder® in-line disintegrator from Franklin Miller reduces tough solids directly in sludge or raw sewage lines. Its design provides a high level of open area to fluid flow making the unit ideal for applications requiring a heavy duty size reduction processor that can handle high flows with minimal headloss. The system features a patented “spherical shredding” mechanism that cuts and shears sewage solids into fine bits.

Franklin Miller Inc.
Livingston, NJ
Tel: 973-535-9200
Web: www.franklinmiller.com
Circle No. 227 on Reader Service Card

Dredge

Th Ps Sludge 05
Click here to enlarge image

The LWT Electric Pit Hog™ dredge provides efficient removal of settled solids without shutting down your processes. Fitted with an electric remote controlled solids handling pump, the dredge pulls biosolids material as standard to 14 foot depths at upwards of 900 gpm or more. It can be fitted with a VFD to closely match dewatering or other processes. Options include Auto Sense (Auto Stop), Bottom Sense (Bottom Contour Sensing) or a PLC Controlled Automated System for computerized dredge solids density control. If the sludge is to be dewatered with belt presses, centrifuges or geo-textile tubes, to name a few, LWT can supply a dredge specifically for the job at a level of automated control that fits project specifications.

Liquid Waste Technology LLC
New Richmond, WI Web: www.lwtpithog.com Tel: 715-246-2888
Circle No. 228 on Reader Service Card

Dewatering systems

Th Ps Sludge 08
Click here to enlarge image

Prime Solution Inc. provides biosolids conditioning and dewatering systems using its patented rotary technology. Its Rotary Fan Press is a continuous, slow moving, fully enclosed a system that requires little space and low operator attention. Self contained skid systems, mobile systems or modular systems are available and can be installed in existing or new projects.

Prime Solution Inc.
Tel: 269-673-9559
Web: www.psirotary.com
Circle No. 231 on Reader Service Card

Sludge pumping

Th Ps Sludge 06
Click here to enlarge image

The Moyno® 2000 HS System includes key features, such as a twin-screw feeder, that enable it to handle semi-dry, high solids content material. The twin screw feeder includes two self-cleaning, intermeshing feed screws that supply a constant, pressurized feed rate to the system’s Moyno® G4 Progressing Cavity Pump. The resulting 100% pump cavity fill rate enhances overall system performance and cost efficiency.

Moyno Inc.
Springfield, OH
Tel: 877-486-6966
Web: www.moyno.com
Circle No. 229 on Reader Service Card

Belt filter presses

Th Ps Sludge 07
Click here to enlarge image

Phoenix Process Equipment has announced an important addition to its line of Model WX Belt Filter Presses. The new Model WX-D features dual gravity zones for maximum hydraulic flow rates per meter of belt width on difficult, low feed solids biological sludge applications. The integral third belt pre-thickener accelerates gravity drainage, while the extended gravity and wedge zones provide improved dewatering performance and versatility.

Phoenix Process Equipment Co.
Louisville, KY
Tel: 502-499-6198
Web: www.dewater.com
Circle No. 230 on Reader Service Card
