Low NPSHr, high-flow pump

Content Dam Ww Print Articles 2016 03 1603wwshw P04

Low NPSHr, high-flow pumpContent Dam Ww Print Articles 2016 03 1603wwshw P04

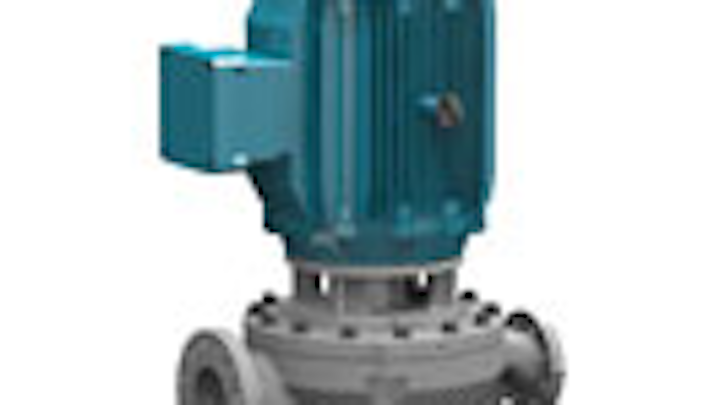

The Sundyne LMV-803Lr is an API 610 compliant pump available in either OH3 or OH5 motor mounting configuration that provides ultra-low NPSHr performance - approximately 5 ft (1.5 m) across the entire performance range, for flows to 800 GPM (180 m3/hr) and heads to 1,000 ft (305 m). The ultra-low NPSHr allows the pump to be installed at grade level, eliminating the expense of installation in a pit and performing maintenance in a confined space. The vertical design is ideal for use in refineries, NGL, petrochemical and chemical plants, as well as light hydrocarbon handling services, such as bottom pumps for de-ethanizers.
