Low profile, high volume chamber

Content Dam Ww Print Articles 2016 03 1603wwprd P05 Sc 160lp Chamber And End Cap 11 25 2015 Copy 2

Low profile, high volume chamberContent Dam Ww Print Articles 2016 03 1603wwprd P05 Sc 160lp Chamber And End Cap 11 25 2015 Copy 2

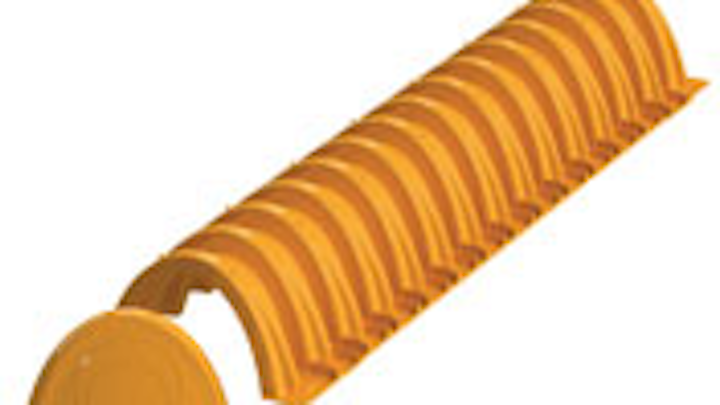

The StormTech SC-160LP Chamber is an addition to the Advanced Drainage Systems StormTech product line and is 12 inches tall with an installed volume of 15 cubic feet of water for underground infiltration and detention systems. The new unit requires 14 inches of total cover to carry AASHTO HS-20 live loads, which reduces site development costs in shallow applications by minimizing the amount of needed fill and maximizing open infiltrative areas. The chamber requires no separation between chamber rows, making it easier for the contractor to install and also minimizing the aggregate required. It can be installed using an injection molded 8-inch end cap or a solid end cap.

Advanced Drainage Systems

www.ads-pipe.com
