Mass flow transmitter

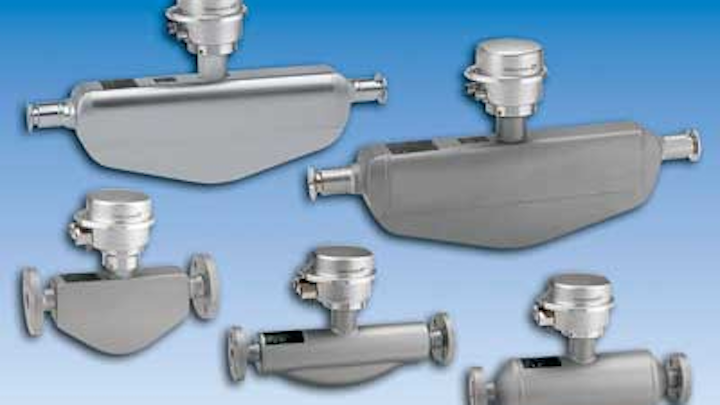

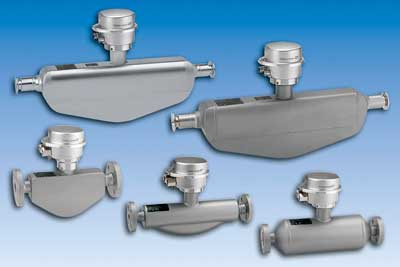

Endress+Hauser has introduced the Proline Promass 100 transmitter that can be combined with industry-specific sensors, materials and finishes.
The Promass 100 measures mass flow, volume flow, density, viscosity, concentration, and temperature with accuracy up to ±0.05%, and with immunity from process and environmental influences. All measurements are fully traceable as the flowmeter is certified on calibration rigs accredited to ISO/IEC 17025.
The flowmeter is approved for operation in Zone 2 and Class 1, Division 2 hazardous areas; and with the intrinsically safe Modbus output, it is approved for Zone 1 and Class 1, Division 1.
The wide range of industry-optimized sensors ensure accurate measurement and compliance with guidelines and regulations in different industries, according to the manufacturer.
The Promass S 100 for the food and beverage industries conforms to all 3-A, EHEDG and FDA requirements. It provides a gentle, non-invasive measurement of the product without causing shear force. It is also drainable and withstands CIP/SIP cycles with immediate return to normal operation, including high pressure or steam jet cleaning.
