Scada & Process Control

Environmental monitoring
Environmental monitoring

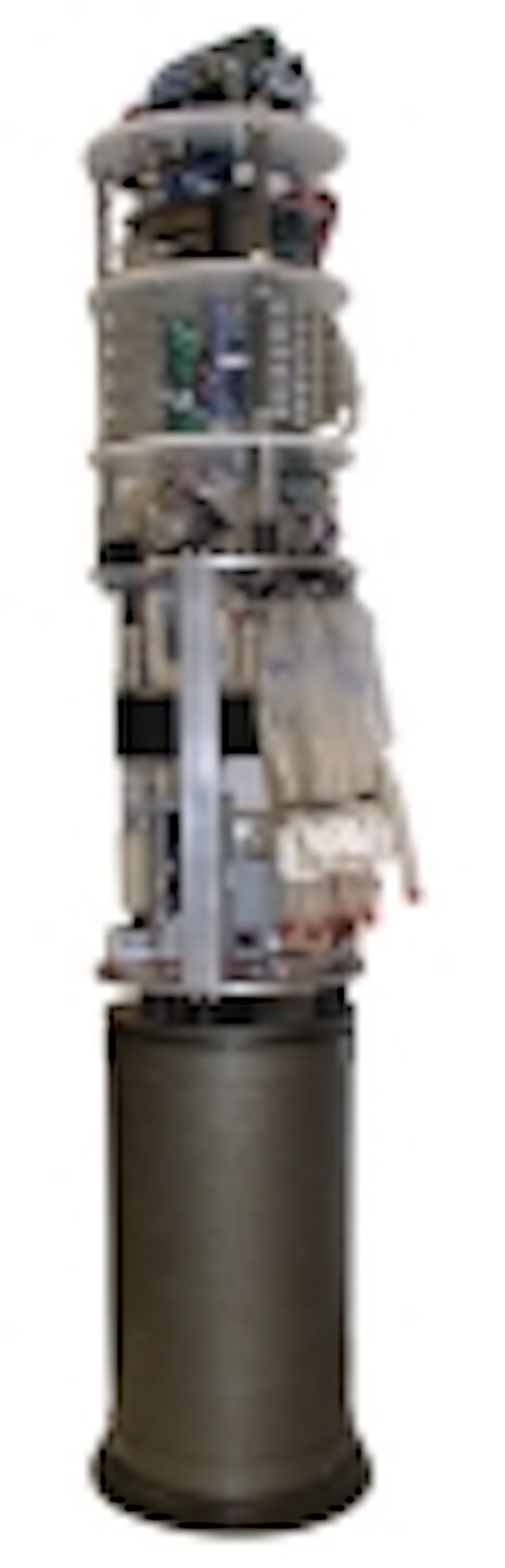

Bioplex Technologies has announced the availability of the Porifera Robotic Environmental Monitoring Sentry for municipal and industrial water monitoring applications. Ideal for sampling areas/processes of concern over extended periods for chemicals, biologicals (microbes, larvae) and particles, the robotic sentinel sampler uses solid phase extraction media and can work 24/7 capturing, preparing and archiving samples for analysis back in the lab. The Porifera can be placed in-line to monitor process streams, or, when packaged in its environmental housing, can sample from any water body for temporal and spatial mapping of chemical and biological contaminants. Bioplex Technologies Inc., Saint Petersburg, FL, 727-289-7269, www.bioplextechnologies.com

Circle No. 109 on Reader Service Card

Pennwell web 148 200Manometer

Control Company's new Traceable® Manometer displays gauge and differential pressure/vacuum in 11 different units. Response time is 0.5 second. Simple hose fittings on the unit permit using hose/tubing with inside diameters from 1/16" to 3/16". Large 5/8" digits are visible from six feet. At the touch of a button, the unit may be zeroed or any pressure may be set to zero. Differential feature permits reading the difference of the pressure or vacuum between two different sources. Memory feature recalls highest and lowest reading over any time period. A count-up timer displays up to 99 hours, 59 minutes, 59 seconds. A Data Hold key freezes the display to capture readings. Brilliant backlighting permits reading even in dark areas. Computer output permits all units to be connected to a computer for monitoring and storing unlimited results. Control Co., Friendswood, TX, 281-482-1714, www.control3.com

Circle No. 110 on Reader Service Card

TOC monitoring

The enhanced GE CheckPoint Pharma On-Line/Portable Total Organic Carbon (TOC) Sensor is typically mounted and used online for continuous monitoring. Measuring the levels of TOC in the water is an important step for pharmaceutical companies to control processes that are critical to their operations and to comply with regulations. The instrument was designed specifically for the pharmaceutical industry and has a standard operating procedure that meets minimum United States Pharmacopeia (USP), European Pharmacopeia (EP), China Pharmacopeia (CP) and Indian Pharmacopeia (IP) specifications. It also can be hand-carried to any point in a water system for rapid diagnostic sampling and troubleshooting. The instrument can measure TOC in hot (up to 90°C) or ozonated water and will operate at ambient temperatures up to 55°C. It has a dynamic range of 0.21 to 1,000 ppb and provides three analog outputs for simultaneous TOC, raw conductivity and temperature measurements. GE Power & Water, www.ge.com

Circle No. 111 on Reader Service Card

Pennwell web 163 130Blower control

Kaeser's Omega Control is now available on the CB, DB and EB Com-paK Plus model series with flows from 335 to 1419. Monitoring a number of on-board sensors and switches such as the enclosure thermostat and oil level, the factory integrated control system indicates when maintenance is needed and will shut down the unit automatically to prevent damage. Further, it can be remotely monitored and integrated into plant controls. Kaeser Compressors, Fredericksburg, VA, 800-777-7873, www.kaeser.com/omega

Circle No. 112 on Reader Service Card

Pennwell web 56 135DO monitoring

ITT Analytics has launched the new intelligent online dissolved oxygen (DO) probe FDO® 701 IQ. The probe is ideal for use in determining oxygen or residual oxygen in water and wastewater. With its faster response (T90 < 80 s) this sensor is suited when new and fast wastewater treatment methods like Sequential batch reactors are used. The interchangeable membrane head contains a chip with factory calibration data. The soft green-light technology preserves the optical membrane, resulting in higher precision and longer life. ITT Analytics, Woburn, MA, 800-645-5999, www.ittanalytics.com

Circle No. 113 on Reader Service Card

Pennwell web 182 120Conductivity monitoring

Pressure Systems now offers the TruBlue 585 CTD transducer for monitoring and logging conductivity to a 1% accuracy as well as temperature and pressure levels. The transducer's internal 5-year 3.6 V lithium battery has on-board surge protection making it ideal for remote environmental data collection and process, including environmental and watershed management applications. The device features a fully sealed design, multiple interfaces, and an internal memory of 8 MB that is capable of storing up to 550,000 data conductivity, level and temperature measurements. Pressure Systems, Hampton, VA, 800-328-3665, trubluemonitor.com/585.html

Circle No. 114 on Reader Service Card

Pennwell web 120 156Flow monitoring

Siemens Industry has introduced the Sitrans FST020. The new clamp-on ultrasonic flowmeter is designed specifically for basic applications that only require flow reading functionality along with communication capabilities. The device offers features tailored to the requirements of basic water and wastewater applications. These include single channel measurement and simplified configuration options that make product selection straightforward while still offering solutions that fit industry requirements. It also comes with RS232 communication and a simple design that ensures simplified set-up and configuration. Siemens Industry, www.siemens.com/flow

Circle No. 115 on Reader Service Card

Pennwell web 124 150Ultrasonic flowmeter

The ECHO Arrow Hunter Plus - Handheld is a portable clamp-on transit-time flowmeter for clean or dirty liquids. The ultrasonic sensors are clamped onto the outside of the pipe, thus eliminating the need to dismantle the pipe work and interrupt the process. The meters are great for checking existing flowmeters to confirm accuracy and reliability. Also, the can be used for checking flow on pumps for blockage, efficiency or damage. The meters will measure flow in metal or plastic pipes with or without liners from 3/8" to 118" diameters. ECHO Process Instrumentation Inc., Shalimar, FL, 850-609-1300, www.echopi.com

Circle No. 116 on Reader Service Card

Pennwell web 98 140Flowmeter

Krohne has introduced its new Optiswirl 4070 C flowmeter, a multivariable instrument that combines a vortex flow sensor with built-in temperature compensation and optionally available integrated pressure in a two-wire configuration. The meter is an all-in-one product that delivers accurate measurement of standard volumetric and mass flow of conductive and non-conductive liquids, gases and vapors, even in applications that are prone to pressure and temperature fluctuations. Krohne Inc., 978-535-6060, www.krohne.com/northamerica

Circle No. 117 on Reader Service Card

Pennwell web 156 70Depth, level transmitter

PMC has released the new MTM 3000 miniature depth & level transmitter which is designed for water level monitoring in deep wells of ½" diameter, particularly around dams. With an outside diameter of 0.39", this compact transmitter fits in almost every stilling well where space is an issue. The transmitter features Titanium construction, offers a 5-year corrosion warranty and either polyurethane or polyethylene cable. Typical cable length is up to 500 feet. Longer cable length upon request. Full scale ranges from 0 to 1 through 0 to 500 psi are available with a proof pressure of typically 300% FS. Process Measurement & Controls, Danbury, CT, 203-792-8686, www.pmc1.com

Circle No. 118 on Reader Service Card

Pennwell web 162 100Level controller

Emerson Process Management's Fisher® Fieldvue DLC3020f fieldbus digital level controller offers displacement sensor technology for measuring liquid level or the level of interface between two liquids. It uses the digital fieldbus communication protocol to deliver diagnostics, alerts, and other information that helps users improve performance while avoiding unexpected downtime. The controller can be configured, calibrated and tested using Emerson's AMS Suite software or 475 Field Communicator. Emerson Process Management, 641-754-3288, www.emersonprocess.com

Circle No. 119 on Reader Service Card

Pennwell web 167 75Lift station monitoring

The Link2Site® cellular based monitoring and control system from Siemens Water Technologies can control, monitor and enhance lift station equipment and facilities. It uses the strength and national coverage of the cellular networks to bring users a reliable, secure, easy-to-install and fully functional SCADA solution. The system is a totally integrated, fully automated, control and monitoring solution. The modular system is available with a variety of flexible service plans to meet the needs of individual applications. Siemens Water Technologies, www.water.siemens.com

Circle No. 120 on Reader Service Card

Pennwell web 94 135Gas monitoring

The MSA Trigard Monitoring System detects chlorine, sulfur dioxide and other toxic gases, combustible gases, as well as oxygen deficiency or enrichment. This system was designed specifically for water and wastewater facilities. The monitor features an adjustable range, multiple sensor mounting options, on-board relays and NEMA 4X design. The LCD display has highly visible LED indicators, and the piezo horn features a silence button. The monitor can be AC- or DC-powered, and is available as either a single-point or a 3-point unit. MSA, Pittsburgh, PA, www.msanorthamerica.com

Circle No. 121 on Reader Service Card

Pennwell web 120 132Data collector

T&D Corp. has added the new RTR-500NW, an Ethernet LAN connected Data Collector for Wireless Data Loggers. The device acts as a wireless base unit for any of the company's RTR-500 Series Data Loggers as remote units. The collector automatically downloads recorded data from the remote units via a 900MHz wireless link and transmits the data via e-mail or to an FTP server, without a PC, making it possible to share and manage data over a network. In addition to automatically collecting and transmitting recorded data, the device can also send warning reports via e-mail or issue a warning via contact output when a remote unit has entered or recovered from a warning condition. T and D Corp., Saratoga Springs, NY, 518-669-9227, www.tandd.com

Circle No. 122 on Reader Service Card

Pennwell web 166 130pH/ORP monitoring

Combining a next-generation flat surface self-cleaning pH/ORP (REDOX) sensor along with modular mounting hardware and optional electronics, the S8000 pH/ORP Platform from Sensorex is a fully configurable system designed to reduce the cost of pH/ORP measurement in water/wastewater treatment applications. It allows users to purchase only the components they need initially, but allows them to expand measurement capability to meet changing plant requirements over time. The same electrode can be used in either tank submersion or in-line mounting applications to measure pH, HF resistant pH, ORP (REDOX) or low ionic pH. This next-generation electrode incorporates Sensorex's double junction ERP technology, which provides a complex path to protect the reference in the presence of interacting ions such as proteins, silver and sulfides that interact with silver or chloride. Sensorex, Garden Grove, CA, 714-895-4344, www.sensorex.com

Circle No. 123 on Reader Service Card
