Pumps, Motors & Drive Systems

Sulzer Pumps offers a range of pumping systems for the water industry. Its products include vertical turbine, propeller or mixed flow pumps ...

Pennwell web 165 132

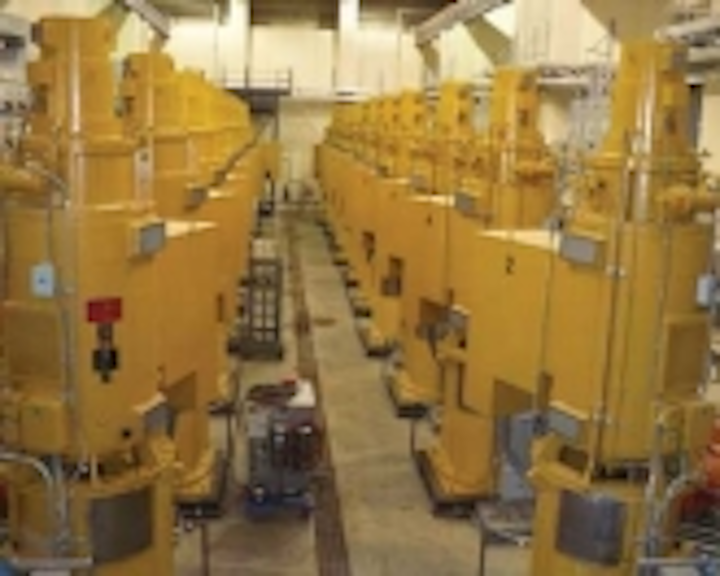

Pumping systemsPennwell web 165 132

Sulzer Pumps offers a range of pumping systems for the water industry. Its products include vertical turbine, propeller or mixed flow pumps suited for agricultural pumping, municipal and plant water supply, drainage, flood control, pipeline pumping, power plant services, petrochemical applications, high pressure pumping and other industrial uses of all types. Its HPDM axially split, volute casing pump is designed for the transport of fresh water and seawater as well as other clean or slightly contaminated liquids. Sulzer Pumps, www.sulzerpumps.com

Peristaltic hose pumpsPennwell web 160 146

Blackmer’s Abaque Series of peristaltic hose pumps have been designed to handle abrasive, aggressive, shear-sensitive and viscous materials in municipal and industrial wastewater treatment applications. The pumps are constructed with ductile iron and steel materials, allowing higher discharge pressures to 217.5 psi. Their seal-free design eliminates leaks, contamination and product loss while reducing maintenance and repairs. Blackmer, Grand Rapids, MI, 616-248-9252, www.blackmer.com

Double-diaphragm pumpsPennwell web 167 174

Wilden® Original™ Series T2 Metal Air-Operated Double-Diaphragm (AODD) Pumps feature the performance versatility necessary for use in various wastewater applications. This 1” pump has wetted housings, water chambers and manifolds that are constructed of aluminum, making it the best choice for solid-laden wastewater-treatment applications. Non-wetted housings are constructed of brass and aluminum. The pump offers flow rates to 35 gpm and can handle pressures up to 125 psi. It has maximum suction-lift capabilities of 17’ for dry products and 31’ for wet products, while being able to handle solids with diameters reaching 1/8”. Wilden Pump & Engineering LLC, Grand Terrace, CA, 909-422-1730

Progressive cavity pumpPennwell web 190 72

The Larox progress cavity pump is designed for demanding industrial slurry and paste pumping applications. Due to its unique design, high efficiency and high pressure are achieved with a shorter construction length. The precise Evenwall 3D-technology with 2-lobe rotor geometry allows for a rigid and tighter pumping unit compared to conventional progressive cavity pumps. The mechanical shaft seal can be replaced without dismantling the pump or its drive shaft and coupling. Larox Flowsys Inc., Linthicum, MD, 410-636-2250, www.larox.fi/flowsys

Centrifugal pumpsPennwell web 190 125

Griswold™ Pump Company’s E, F & G Series Centrifugal Pumps are ideal for most water-pumping applications thanks to capacities up to 3,000 gpm, heads to 310 feet and a broad range of sizes and configuration options. The pumps are equipped with a choice of either a close-coupled NEMA electric motor or frame-mounted with couplings to electric motors, engines, steam turbines or belt-driven motors. Their 360-degree mounting capabilities extend installation options, while closed-coupled configurations can also be mounted vertically when space is at a minimum. Griswold Pump Co., Grand Terrace, CA, 229-226-5255, www.griswoldpump.com

Oil detection system

To complement its full line of Hydromatic® pumps, Pentair Flow Technologies has launched the Hydromatic ODS Series™ oil detection system. This combination of ½ HP sump/effluent pump with Pentek® control system (control panel, alarm, and sensor) is approved for applications where water is removed but oil & other hydrocarbons must not be discharged. The ODS Series is a complete, fully-integrated and packaged system. The control unit monitors water and oil levels; pumping out water without discharging oil and other hydrocarbons. The system alerts to high levels of oil and water, and will shut down the pump before discharging harmful substances. Hydromatic, Ashland, OH, www.hydromatic.com

Pump replacement partsPennwell web 190 162

Moyno® replacement parts ensure the company’s pumps continue to provide their original performance. The company’s replacement parts consistently meet all product design parameters, quality standards and manufacturing tolerances. The replacement parts install correctly the first time, ensure accurate form and fit to meet original product specifications and protect product warranties. Moyno maintains the largest in-field inventory of progressing cavity replacement parts in North America to ensure availability and reduce process delays. Moyno Inc., Springfield, OH, 877-486-6966, www.moyno.com

Metering pumpsPennwell web 120 142

Neptune Chemical Pump Company’s Series 500 hydraulic diaphragm metering pumps are adjustable while running through 100% of range. The pumps have capabilities to 80 gph simplex and 160 gph duplex at 100 psi. They are equipped with a standard energy-efficient 1/3 hp motor that includes a built-in automatic thermal overload, but are also available with bi-directional, 12-volt and 115-volt motor options. An optional internal relief valve viewing line allows the operator to see if oil is bypassing through the valve and that the valve is operating in case of blockage or overpressure. Neptune Chemical Pump Co., Lansdale, PA, 215-699-8700, www.neptune1.com

Motor control

With the Replacement Motor Control Center Buckets from Square D by Schneider Electric, almost all MCCs can be upgraded and retrofitted without the need to replace the entire MCC. By retrofitting instead of replacing an existing MCC, upgrade costs are reduced by reusing old enclosure and bussing material. Time is also saved since simply retrofitting is quicker than replacing one. Retrofitting a bucket for an MCC means replacement parts will be readily available, while also effectively bringing the MCC up to current industry standards. Square D by Schneider Electric’s MCC retrofit buckets can be installed in most OEM MCCs, including Allen-Bradley, General Electric, and Westinghouse/Cutler-Hammer. Schneider Electric, Palatine, IL, www.powerlogic.comPennwell web 33 158

Pump bushings

Two grades of self-lubricating Graphalloy® bushing materials, manufactured by Graphite Metallizing Corp., have been certified by NSF International to NSF/ANSI Standard 61 for use in municipal well pumps and water treatment plant applications. These newly certified grades are used in the manufacture of pump bushings and bearings for both vertical and horizontal pumps. They are often used for deep well water pump applications in the western U.S., Hawaii and around the world. Graphite Metallizing Corp., Yonkers, NY, 914-968-8400, www.graphalloy.com

Sampling pumpPennwell web 200 82

The Model 410 Peristaltic Pump from Solinst Canada is suited for water and vapor sampling from shallow wells or surface water. It is compact, lightweight and water resistant. The robust metal case makes it easy to maintain and repair. One control enables reversible flow and various speeds, allowing high or low-flow sampling. Simply connect to a 12 vDC power source to operate.Solinst Canada Ltd., Georgetown, ON Canada, 905-873-2255, www.solinst.com

Chemical metering pumpsPennwell web 200 137

Watson-Marlow Pumps Group recently introduced its new Chemical Metering Systems. Designed for metering of water purification chemicals like sodium hypochlorite and ferric chloride, the peristaltic pumping system delivers metering accuracy of +/- 1%. There are no back pressure regulators or de-gassing valves required and maintenance is a simple one-minute tube change. The turnkey wall or floor mounted system includes the pumps, valves, pressure relief, gauges, calibration column, leak detection and all interface pipework. Watson-Marlow Pumps Group, 800-282-8823, www.watson-marlow.com

Non-metallic gear pumps

The Pulsafeeder Eclipse can pump non-corrosive to highly corrosive chemicals including ferric chloride, sodium hypochlorite, chlorine dioxide, sodium dioxide, polymers and many more. Engineered out of corrosive resistant composites, the pump consists of only 16 self-aligning parts and requires no special tools to assemble or disassemble. There are no mechanical seals to replace or leak, and its front pull-out design allows users to maintain the pump without removing any system piping. The magnetically driven pump is used in applications such as odor control, phosphate removal, disinfection, flocculation, coagulation, and dechlorination. Pulsafeeder Inc., Rochester, NY, 585-292-8000, www.pulsafeeder.com

Soft starterPennwell web 180 168

Danfoss Drives has introduced the VLT® Soft Starter MCD500 with Adaptive Acceleration Control (AAC). AAC allows users to select different acceleration and deceleration profiles according to specific application needs, optimizing performance and maximizing energy efficiency. Among the most compact soft starters available in its class, the starter is available in 23 models and five different frame sizes, from 21A ¤ 1600A (7.5kW ¤ 800kW). The G1 frame size is IP20 rated, and G2 – G5 frame sizes are IP00 rated. Optional finger guard kits are available for the G2-G5 frames to achieve IP20. Danfoss Drives, Milwaukee, WI, 800-621-8806, www.danfossdrives.com

Pump controllerPennwell web 100 150

The SCADAPack FlowStation is a pump controller designed to save users up to 50% off integration and deployment costs. Ideal for use in storm and waste water lift stations and pump-up applications, the controller features a built-in web interface. It can be configured and brought online in a matter of hours by a field technician. The station also features a Blackberry™ interface for monitoring and control and an integrated cellular modem for SMS and email notifications. Custom functionality can be added to support options such as Modbus connectivity to motor protection relays, control of vent fans, backup generators, oxygen injection, and additional pump interlocks. Control Microsystems Inc., Kanata, ON, 613-591-3878, www.controlmicrosystems.com

Vibration monitoringPennwell web 160 181

Ludeca has introduced Vibxpert II, the latest addition to the Prueftechnik family of portable route-based vibration data collectors. The new instrument is rugged and lightweight and combines the advantages of a rapid processor with a color VGA display. Enhanced with an Fmax of 51KHz and up to 102,400 lines of resolution, the basic platform is a 1-channel device which can be upgraded at any time to two individually configured channels. All forms of machine vibrations, bearing conditions, process data and visual inspection information can be collected and stored on the expandable compact flash card (up to 8 gigabyte) for report generation or for later transfer to the Omnitrend® software for further analysis, reporting and archiving. Ludeca Inc., Doral, FL, 305-591-8935, www.ludeca.com
