Products & Services: Aeration, Sludge & Odor Control

Columbian TecTank specializes in the turnkey production of premium performance bolted and shop-welded tanks ...

Th 263488

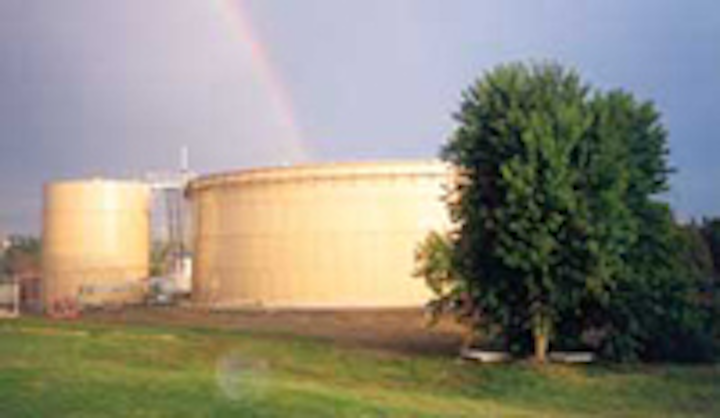

Tanks

Th 263488
Click here to enlarge image

Columbian TecTank specializes in the turnkey production of premium performance bolted and shop-welded tanks, from design, fabrication, to field erection and service. CTT tanks are used for a wide variety of wastewater storage applications including equalization, aeration, sludge, clarification, filtration, and digestion just to name a few. The company manufactures bolted tanks in capacities up to 3 million gallons. It offers a technologically advanced Trico Bond EPÔ coating applied in ISO 9001 certified facilities to ensure long-lasting corrosion resistance. Columbian TecTank, Kansas City, KS, 913-621 3700, www.columbiantectank.com

Sludge handling

Th 263489
Click here to enlarge image

The Moyno® 2000 HS System is a cost-effective alternative to expensive, high-maintenance piston pumps and open conveyors for dewatered sludge transfer in municipal wastewater treatment. It features an integral hopper with a twin-screw auger feeder and Moyno G4 progressing cavity pump that efficiently handles semi-dry, high solids, dewatered municipal sludge to over 50% solids. The progressing cavity pump can move filter cake further distances with higher volumetric efficiencies. Moyno Inc., Springfield, OH, 877-486-6966, www.moyno.com

Large-scale MBR retrofits

Th 263490
Click here to enlarge image

Koch Membrane’s new 1500 square meter (m2) PURONTM submerged membrane module for membrane bioreactor (MBR) applications features greater packing density, lower energy costs for aeration, and simplified installation while providing even greater compatibility with other commercially available systems. The modules can now be ordered in configurations with 1500, 500, 235, or 30 m2 of membrane area. The new module was specifically designed for large-scale MBR projects. Koch Membrane Systems Inc., Wilmington, MA, 888-677-5624, www.kochmembrane.com

Polymer mixing system

Th 263491
Click here to enlarge image

Neptune Chemical Pump introduces a new explosion-proof, stainless steel polymer makedown system for preparation, activation and injection of liquid polymers in water and wastewater treatment applications. The system can produce dilute solution (0.1-2.0%) at capacities from 20 to 3,000 GPH of total makedown solution. It uses the patented “Gatlin Mixer” for mechanical mixing and blending for maximum activation regardless of fluctuating flow rate or water pressure. Standard with manual or automatic electronic metering pumps for polymer injection, larger models use motor-driven metering pumps or progressing cavity pumps. Neptune Chemical Pump Co. Inc., Lansdale, PA, 888-637-8863, www.neptune1.com

Sodium hypochlorite generator

Th 263493
Click here to enlarge image

PEPCON’s ChlorMaster® systems provide on-site sodium hypochlorite generation for use in a variety of applications including wastewater disinfection, marine organism control, potable water chlorination, and odor control systems. The custom equipment manufacturer’s Bipolar Model Cell offers a unique electrode plate design for high current efficiency, low power consumption, and compact system designs. These electrolytic cells are installed worldwide for use with sewage treatment plants, sewage collection systems, desalination plants, drinking water plants, onshore and offshore oil production facilities, power plants, and chemical plants. PEPCON Systems, Cedar City, UT, 435-865-5045, www.pepconsystems.com

Defoamers/antifoam agents

Eastern Color & Chemical Co., manufacturer of “environmentally friendly” products for the water treatment industry, has introduced two new highly concentrated defoamers/antifoams for wastewater treatment systems. ECCO Defoamer CF-8 Base is a 100% active, antifoam and defoamer for industrial and municipal wastewater treatment plants that’s designed for continuous application at level of 1-20 ppm. ECCO Defoamer BD-2000 is designed for use in municipal and industrial wastewater systems to control biological induced foam. Eastern Color & Chemical Co., Providence, RI, 800-424-9300, www.easterncolor.net

Sludge depth meter

Th 263494
Click here to enlarge image

The thicker the sludge the less treating you have to do later. A key instrument for thickening the sludge in dissolved air floatation tanks, SBRs, inclined plate clarifiers, tanks and clarifiers is a sludge depth meter. The Model 602 Sludge Depth Meter quickly automates your sludge level detection. Analog, digital and relay outputs are available. Markland Specialty Engineering, Toronto, Canada, 416-244-4980, www.sludgecontrols.com

Static mixers

Th 263495
Click here to enlarge image

Chemineers’ Kenics® HEV high-efficiency static mixer provides pressure drops up to 75% lower than other mixers and can handle any turbulent-flow mixing process regardless of line size or shape, with mixer length limited to less than 1½ pipe diameters for space savings. Designed to handle mixing problems common to water and wastewater treatment processes, the unit can easily be configured for non-circular cross sections and open channels, providing efficient additive blending in places not suitable for traditional static mixers.Chemineer Inc., Dayton, OH, 937-454-3200 or www.chemineer.com

DO control

Th 263496
Click here to enlarge image

Wastewater treatment facilities that require reliable monitoring of dissolved oxygen (DO) for aeration, activated sludge, and nutrient removal control can optimize those processes with the new sc100 Controller from Hach. With it, process managers can choose to use the company’s new LDO® Dissolved Oxygen (DO) Probe, which uses luminescent technology and eliminates the typical drawbacks of membrane components; a Hach membrane-methodology DO probe; or both, as conditions and requirements dictate. Hach Company, Loveland, CO, 800-227-4224, www.hach.com
