Screw Press

The Q-PRESS® from Huber is a screw press with a conical screw shaft and cylindrical sieves consisting of three treatment zones: inlet and drive zone, three-part thickening and dewatering zone, and press zone with pneumatic counter-pressure cone.

Content Dam Iww Volume 16 Issue 3 1605iwwprd P10

Content Dam Iww Volume 16 Issue 3 1605iwwprd P10

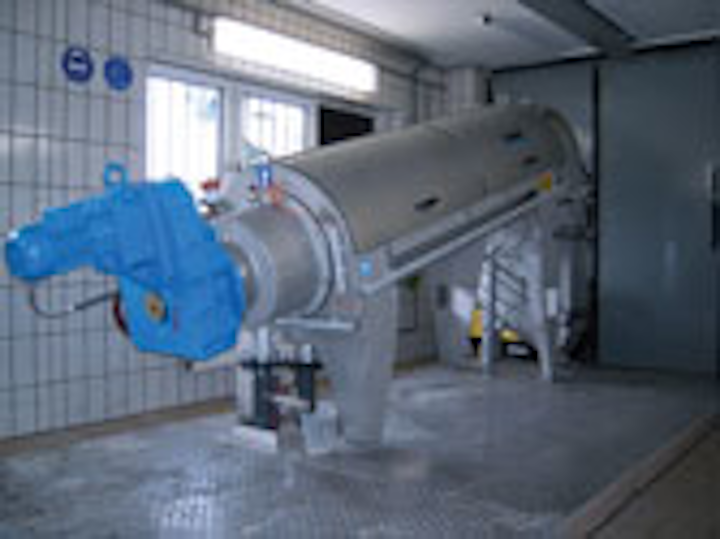

The Q-PRESS® from Huber is a screw press with a conical screw shaft and cylindrical sieves consisting of three treatment zones: inlet and drive zone, three-part thickening and dewatering zone, and press zone with pneumatic counter-pressure cone. The supernatant is quickly removed by the feed pump via a large free filter surface at a low primary pressure while the volume of material between the screw flights is reduced by the conical screw and the sludge is dewatered. Residual water is pressed out of the sludge by the pneumatic counterpressure cone at the press discharge.

Huber Technology

www.huber-technology.com
