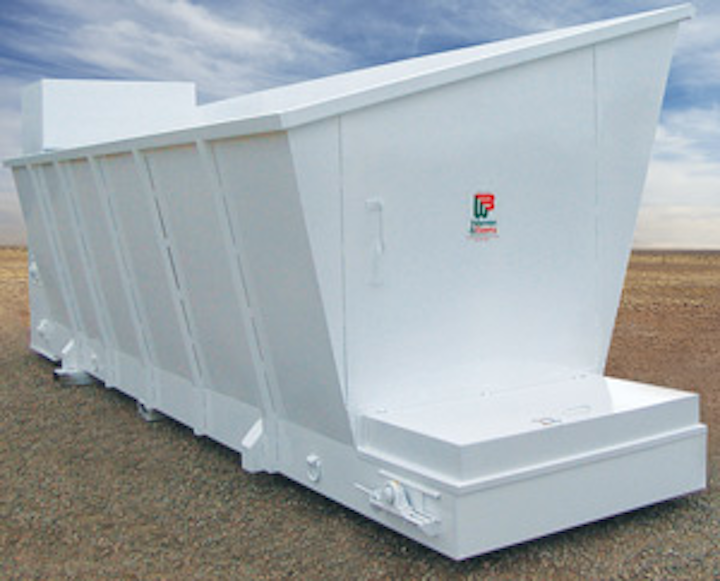

Metering-surge bin for biomass materials

The Model MSB6-20-O Metering-Surge Bin can be used in the Agricultural, Biomass and Waste Industries. This latest generation of Metering Bin allows users to load fibrous materials with a Front-End Loader.

Products W B

The Model MSB6-20-O Metering-Surge Bin can be used in the Agricultural, Biomass and Waste Industries. This latest generation of Metering Bin allows users to load fibrous materials with a Front-End Loader.

The Metering-Surge Bin provides a consistent, positive, and even flow of material for various applications. It provides cost effective metering of shredded or ground woods, stover, grasses, paper, cardboard, plastics, carpet and other similar materials from low rates to well over 100 tph.

The Metering-Surge Bin is built with straight side walls or can have a flared front and back walls for additional capacity and loading room. The flared back is gusseted and supported. There are two doffers up front and a V-Level rake before the top doffer. Depending on the out flow tonnage required, the floor drive motors are 2 horsepower or less and 7.5 hp or less on each doffer.

According to the manufacturer, the differences between this bin and existing models is its open for loading with a front-end loader, flared sides for more capacity and loading room, higher discharge flow rates.

www.warrenbaerg.com
