Level Monitoring Helps Utilities Manage Water Resources

It is the aim of water management professionals to understand the impact of climatic fluctuations on water budgets, identify areas prone to the extremes of flooding or drought, and manage the ever-increasing demands on already stressed water supply systems.

Dec 1st, 2008
Th 302822

It is the aim of water management professionals to understand the impact of climatic fluctuations on water budgets, identify areas prone to the extremes of flooding or drought, and manage the ever-increasing demands on already stressed water supply systems.

One key to tackling these challenges is collecting detailed, consistent information on level, rainfall and temperature data.

Water supplies, whether they are reliant on surface water sources or groundwater wells, are not isolated systems. Effective management relies on knowledge of the entire watershed’s water balance. Defining a water budget can include determining industrial, and agricultural demands on supplies; monitoring aquifer level fluctuations; long-term monitoring of surface water bodies; rainfall data collection to assess recharge in the system; and identification and monitoring of recharge and discharge zones.

Many water utilities have chosen Solinst Leveloggers (Gold or Junior), Barologgers and Rainloggers for the collection of water level, temperature and rainfall data.

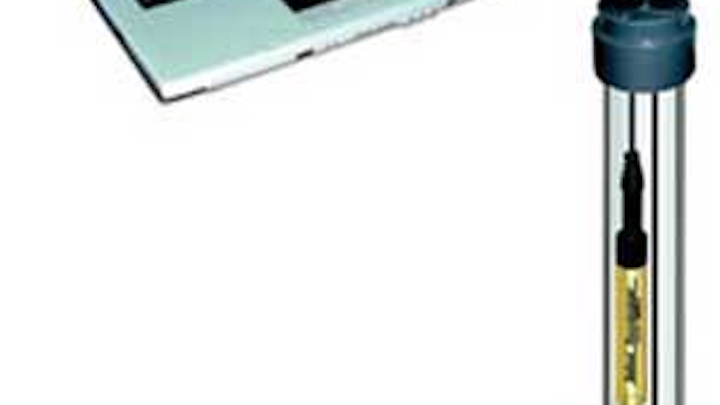

Leveloggers combine a pressure sensor, temperature sensor, 10-year lithium battery and data logger into a compact unit designed to be durable and virtually maintenance-free. The loggers have the ability to communicate using cellular and radio telemetry, and SDI-12 protocol

They can be installed in various locations in a municipal water system to warn of a potential disaster by monitoring critical points of influx in sanitary or combined sewer systems to prevent overflows; flood prone areas such as culverts, riverbanks, flood detention and control structures; and in wells, storage tanks and reservoirs to detect dangerously low levels.

Sustainability

Conditions can change radically and quickly; therefore continuous monitoring is a prerequisite to the protection of these systems, allowing managers to take immediate action when required.

Sustainability and effective management of crisis conditions can be assured with a modern network of sensors that record and report data frequently. This type of monitoring can be accomplished by implementing a network that relays data remotely.

Click here to enlarge image

Solinst offers the STS Gold Telemetry System that allows high and low level alarms with SMS messaging when an alarm condition is met. The STS offers multiple communication options, including GSM, CDMA and radio. Suited for small and large networks, it has easily upgradeable components, numerous programming options and includes simple software for network self-management. Collected data can be exported to other programs for further analysis.

A Solinst SDI-12 Interface cable allows Leveloggers to communicate using SDI-12 protocol. This enables connection to other data loggers or PLCs using the same communication protocol. Municipal water supply control systems using this protocol can also set high and low level alarms, providing early warnings of crisis conditions.

Case Study

In 2001, the Ontario Ministry of the Environment and Energy established the Provincial Groundwater Monitoring Network (PGMN), in partnership with 38 Conservation Authorities across the province of Ontario, Canada. Since that time, over 400 wells have been equipped with Leveloggers and Barologgers, and connected to a self-managed Central Data Management System using Solinst telemetry systems.

Monitoring helps the Ministry track long-term drought conditions and obtain province-wide baseline groundwater information. Loggers and telemetry take the most important function of this project, data collection, away from the possibility of human error. The Ministry saves time that would have been spent on field visits and accomplishes its monitoring goal while saving taxpayers’ money. Find out more at: http://www.ene.gov.on.ca/programs/5311e.htm.

System Benefits

Investment in monitoring can reap future benefits and savings. Large monitoring networks, especially those with remote capabilities, can have seemingly high start up costs. However, a Solinst STS and Levelogger network that is priced competitively, and supports individual component upgrades, can give decision makers the detailed data they need to avoid significantly costlier crises.

The goal of all municipalities, when it comes to water supply management, is to maximize and protect their available resources. This is done with success when detailed data:

  • Provides long-term limits of current systems
  • Quantifies maximum and minimum risks for the network
  • Provides feedback on the impact of changes made in the system

Suitable monitoring systems enable the gathering of detailed data, and export reliable continuous data for use in modeling programs, to develop and test the effectiveness of suggested modifications. WW
