Level Probe with Ceramic Diaphragm

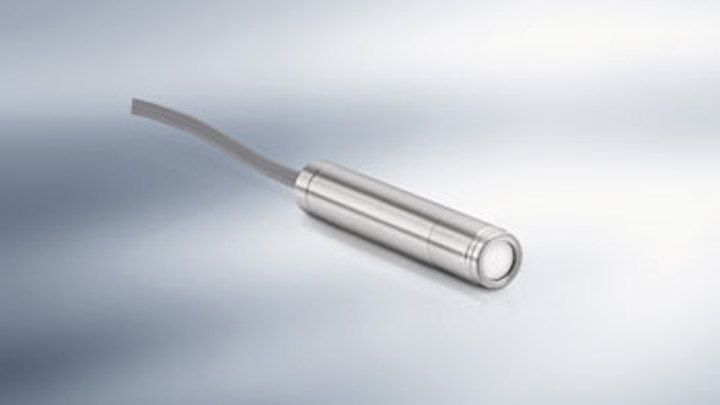

KROHNE introduces the OPTIBAR LC 1010 submersible level probe with ceramic diaphragm.

Mar 16th, 2017
Content Dam Wwi Volume 32 Issue 2 Products Krohne Optibar

KROHNE introduces the OPTIBAR LC 1010 submersible level probe with ceramic diaphragm. Aimed at water and wastewater, environmental engineering and OEM applications, it provides a continuous hydrostatic level measurement solution for water wells, rainwater retaining/overflow basins, or tanks. OPTIBAR LC 1010 features a 316L stainless steel housing and a high overload-proof ceramic diaphragm for long operating life. For safe and easy cleaning on site, the diaphragm is flush mounted. With a diameter of 22 mm / 1”, OPTIBAR LC 1010 can be used also in small vessels. It comes with pre-configured measuring ranges from 100 mbar / 10 kPa / 1.5 psi to up 10 bar / 1 MPa / 150 psi, customer-specific ranges are available on request. OPTIBAR LC 1010 features ATEX and IECEx certification.

http://krohne.com
