Products & Services--Wastewater Treatment

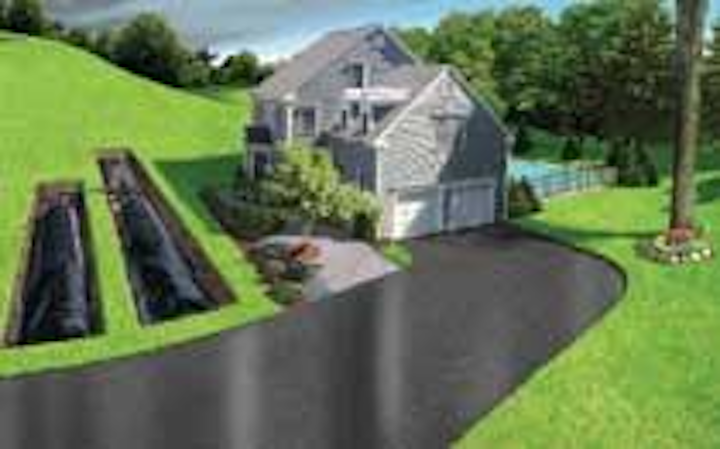

Cultec plastic septic chambers have been widely accepted in most parts of the United States for gravel-less septic leach fields as replacements for concrete galleries and conventional pipe and stone systems.

Th 280614

Septic chambers

Th 280614
Click here to enlarge image

Cultec plastic septic chambers have been widely accepted in most parts of the United States for gravel-less septic leach fields as replacements for concrete galleries and conventional pipe and stone systems. The chambers may receive as much as a 50% square foot sizing reduction in some areas of the country. The septic systems promote higher efficiency than conventional pipe and stone systems by providing greater contact of effluent and soil surface. Perforated sidewalls and full open bottom maximize infiltration capability.
Cultec Inc.
Brookfield, CT
Tel: 800-428-5832
Web: www.cultec.com

Sludge pumps

Th 280615
Click here to enlarge image

Morris Series 6100CT cup-type recessed impeller pumps are designed for high-grit sludge handling in municipal and industrial wastewater treatment process. The pumps are designed for severe-duty applications. Features include high-chrome iron construction, reversible casing, bi-directional impeller, replaceable suction cover and rear liner, machined registered fits with o-ring sealed interfaces, stainless steel shaft with hardened stainless steel sleeve, universal stuffing box with packing or mechanical seal.
Morris Pumps, Div. of Yeomans Chicago Corp.
Aurora, IL
Tel: 630-236-6900
Web: www.morrispumps.com

BOD system

Th 280618
Click here to enlarge image

The Orbeco-Hellige Oxi700™ BOD System is a new six sample sensor system that allows accurate and precise measurement of biological oxygen demand. It is a new, manometric respirometer that measures BOD according to Standard Methods 5210 D. Respirometric BOD offers many advantages over the conventional “Dilution Method” including: reduced sample preparation time, no dilutions or dilution water required and automatic collection and storage of data.
Orbeco-Hellige
Tel: 800-922-5242
Web: www.orbeco.com

Aeration, mixing

Th 280620
Click here to enlarge image

The OLOID system from West Technology Systems provides water aeration, mixing and circulation. The novel shape and movement of the unit body combined with its low (< 500W) power requirement makes the OLOID 400 unique in its ability to efficiently operate as both an aerator and a circulator. When configured as a surface aerator in pond sewage treatment plants the unit enhances the operation of conventional aeration equipment by homogenizing oxygen distribution.
West Technology Systems Inc.
Rancho Santa Margarita, CA
Tel: 949-742-7010
Web: www.westtechnosystems.com

Grit removal

Th 280621
Click here to enlarge image

JWC now offers a grit removal system integrated into the company’s separation system – ensuring the complete removal of trash, rags, grit and fine particulate at the inlet works. The compact Grit Monster uses a low-speed agitator with adjustable paddles to ensure consistent grit removal across a wide range of flow rates. The system includes a vortex swirl concentrator and choice of an air-lift pump or specialized grit pump to remove particulate such as sand, gravel, coffee grounds and egg shells.
JWC Environmental
Costa Mesa, CA
Tel: 800-331-2277
Web: www.jwce.com

Treatment systems

Doosan Hydro Technology has a global reputation for providing design, manufacturing and construction of custom engineered water and wastewater treatment plants. The company has technical knowledge and experience in wastewater treatment, reuse and recycling technologies. In many cases, the cost of treating wastewater for reuse or recycle is less than other methods of production and delivery of clean water, with the added advantage of preserving the environment.
Doosan Hydro Technology
Tampa, FL
Tel: 813-549-0182
Web: www.doosanhydro.com

Nutrient removal

Th 280622
Click here to enlarge image

The AquaPASS™ Phased Activated Sludge System uses time-based process management in a continuous flow regime. The system provides aggressive reduction of nitrogen and phosphorus in an efficient and compact solution with minimal O&M costs. The system is ideal for nitrogen control, phosphorus removal and water reuse applications. Its flexible tank design and equipment options allow for easy retrofitting of oxidation ditches or other activated sludge processes.
Aqua-Aerobic Systems Inc.
Rockford, IL
Tel: 815-639-4456
Web: www.aqua-aerobic.com/aquaPASS.asp

Blower packages

Th 280623
Click here to enlarge image

Kaeser Compressors has expanded its line of Com-paK Plus tri-lobe blower packages. The new CB 110 and CB 130C units deliver up to 434 cfm in pressures to 15 psig and vacuum to 15"Hg. The new CB units have an even smaller footprint than previous models. They also include a removable front panel for access and a simplified check valve for customization on site. Both CB units feature a new angled inlet filter for quicker cartridge changes. Plus, these new models are even quieter. They come completely assembled with blower, motor, and silencers to minimize installation costs.
Kaeser Compressors
Tel: 800-777-7873
Web: www.kaeser.com/omega

Denitrification system

Th 280624
Click here to enlarge image

The ITT Leopold® elimi-NITE® Denitrification System uses the advantages of deep bed, mono-media filters to remove nitrogen in wastewater effluent. In addition to nitrogen, the system can simultaneously remove suspended solids. The gravity, downflow, packed-bed denitrification system is an attached growth, microbiological process which removes nitrate-nitrogen achieving levels below 1 mg/liter.
ITT Water & Wastewater, Leopold
Zelienople, PA
Tel: 724-452-6300

SBR system

Th 280625
Click here to enlarge image

Siemens Water Technologies’ Omniflo interchange sequencing batch reactor (ISBR) system provides one of the most energy-efficient and lowest sludge yield of any SBR on the market today. Developed as the result of an existing installation’s performance, the newly branded ISBR system combines the company’s Omniflo SBR system with its Cannibal solids reduction system. The system has an inherent biological nutrient removal (BNR) capability through the use of automated controls that provide optimum environments for each BNR reaction.
Siemens Water Technologies
Edwardsville, KS
Tel: 913-422-7600
Web: www.siemens.com/water

Wastewater treatment

Th 280627
Click here to enlarge image

Siemens Water Technologies now offers small-flow Orbal® wastewater treatment systems created specifically for small wastewater flows in the range of 0.035 to 0.5 mgd. The company’s “complete solution” approach provides cost-effective wastewater treatment solutions for smaller communities that have limited financial resources. A small flow system’s design package consists of a standard Orbal multi-stage aeration system, two scraper clarifiers, an aerobic digester, SmartBNR® controls, and associated pumps, blowers, and control valves.
Siemens Water Technologies
Thomasville, GA
Tel: 229-227-8741
Web: www.siemens.com/water

Aerator

Th 280628
Click here to enlarge image

Eimco introduces the latest Carrousel® system aerator, the energy efficient Excell®Aerator II with velocity enhancer. The system provides clean water oxygen transfer rates greater than 3.65 lb O2 per motor HP per hour (3.85 lb O2 per shaft HP per hour) and power turndown capability up to 90. Plus, users receive the same biological process design support the company has provided to the U.S. market for the last 30 years now with no user license fee agreements.
Eimco Water Technologies
Salt Lake City, UT Tel: 801-526-2000 Web: www.eimcowater.com

Aeration systems

Th 280629
Click here to enlarge image

Airmaster Aerator specializes in wastewater aeration systems and aeration equipment. The company’s “Turbo” aeration system is one of the most advanced and efficient aerator technologies available. It features stainless steel construction and a design that allows for high capacity water movement along with aeration. These aerators can be installed in ponds, lagoons, aeration basins and oxidation ditches.
Airmaster Aerator
DeRidder, LA Tel: 888-813-3680 Web: www.airmasteraerator.com

Process monitor, control

Th 280630
Click here to enlarge image

Dissolved oxygen and suspended solids are two of the most important controllable parameters in any biological reactor. Stabilizing these two parameters will reduce operation costs and enhance process performance. Insite Instrumentation Group’s Model 2000 will make both of these crucial measurements. The dissolved oxygen sensor is an optical design that eliminates the need for replaceable membranes, sensor caps, cartridges, and fill solutions. The system does not require initial calibration. It uses the fluorescence properties of a rare earth element to detect dissolved oxygen.
Insite IG
Slidell, LA
Tel: 985-639-0006
Web: www.insiteig.com

Sludge reduction systems

Th 280631
Click here to enlarge image

Fluidyne’s Integrated Surge Anoxic Mix – ISAM™ activated sludge system provides tertiary level wastewater treatment with integral sludge reduction all in one process. Sludge reduction is inherent in the system, which has very low power usage through sludge recycling, solids separation, and anaerobic destruction. Sludge production in the process is as much as 85% less than other activated sludge processes. There is no need for separate sludge reduction processes. Anaerobic/Anoxic/Aerobic zones in the biological process provide an ideal environment for BOD reduction and nutrient removal.
Fluidyne Corp.
Cedar Falls, IA
Tel: 319-266-9967
Web: www.fluidynecorp.com

MBR system

Th 280632
Click here to enlarge image

The Titan MBR™ marries the wastewater treatment engineering expertise of Smith & Loveless with Flat-Plate Membranes. Submerged in the aeration section of the Titan tank, the Flat-Plate Membrane maintains high permeability and flux rates even at peak-day rates. Because the system employs air scouring to prevent fouling, it does not require back-pulsing or the associated equipment and chemical costs typical of other systems. Because of its robust support, flat-plate units also experience less wear and tear than hollow-fiber types and can easily be cleaned in place.
Smith & Loveless
Lenexa, KS
Tel: 913-888-5201
Web: www.smithandloveless.com

pH, ORP controller

Omega’s PHP-700 Series pumps/controllers combine the PHP-600 series dosing pump with the company’s controller. This latest innovation eliminates the need for multiple instruments by combining two instruments into one. The products were developed for measuring and controlling pH or ORP and the regulated dosing of various chemicals. Features include alarm, recorder signals and mounting holes for ease of installation.
Omega Engineering, Inc.
Stamford, CT
Tel: 203-359-7815 Web: www.omega.com

Grinders

Th 280633
Click here to enlarge image

The Sewer Chewer® Severe-Duty Grinder from Yeomans Chicago is designed for solids reduction in wastewater and sludge handling applications. The grinder’s twin shaft arrangement and patented cutter design have low head-loss characteristics. A variety of motor and mounting options are available to configure the grinder to most any installation requirement. TEFC gear motors are standard; Explosion-Proof and Submersible (IP68, FM Listed) are also available. Standard NEMA 4X controllers provide digital keypad-type operator interface for user-configurable control and operation.
Yeomans Chicago Corp.
Aurora, IL
Tel: 630-236-5500
Web: www.yccpump.com

MBBR technology

John Meunier Inc., subsidiary of Veolia Water Solutions & Technologies, will be responsible for the commercialization in Canada of the Moving Bed Biofilm Reactor (MBBR) technology from AnoxKaldnes. The MBBR technology is a robust attached growth biological wastewater treatment that is less expensive than conventional biological treatment. The result of much research work, an engineered plastic media is used to promote fixed biomass.
John Meunier Inc.
Montreal, Canada Tel: 514-334-7230 Web: www.johnmeunier.com

Analyzer/controller

Th 280634
Click here to enlarge image

Hanna Instruments’ PCA 330 chlorine/pH/ORP/temperature analyzer-controller combines critical process control parameters into one unit. This self-contained NEMA protected instrument controls free and total chlorine from 0 to 5 mg/L while pH is regulated with two chemical saving control modes. An available module sends measured parameters and alarms to a cell phone. The company produces the PCA 300 and the PCA 301 microprocessor-based chlorine analyzers for process control.
Hanna Instruments
Woonsocket, RI Tel: 800-426-6287 Web:www.hannainst.com/usa

Disinfectant

Th 280635
Click here to enlarge image

EPA-approved and chlorine-free, Proxitane® WW-12 from Solvay Chemicals is a tool in the treatment of sewage and wastewater effluent, and an efficient biocide whose residues quickly biodegrade. Used primarily as a replacement for chlorine gas and sodium hypochlorite, the chemical also offers a low-capital alternative to chlorine dioxide, ozone, and UV.
Solvay Chemicals Inc.
Houston, TX
Tel: 800-765-8292
Web: www.solvaychemicals.us

Biogas flow monitoring

Th 280636
Click here to enlarge image

Photon Control’s Focus® Probe optical flow meters are successfully measuring flow rates of biogas at sewage digesters in Vancouver. The methane-rich biogas posed a problem for conventional flow meters which could not cope with the low flow rates, low pressure and high humidity specific to biogas. Using optical laser beams to measure the velocity of naturally occurring particulates, the probe enables highly accurate flow determination despite pipe vibration, acoustic noise and gas condensation.
Photon Control
Burnaby, B.C., Canada
Tel: 604-422-8861
Web: www.photon-control.com

Oxygenation system

Th 280637
Click here to enlarge image

BlueInGreen has introduced a new product for aeration/oxygenation applications. The SDOX™ delivers a precisely metered stream of water with highly concentrated DO (310 mg/L) to mix with the wastewater being treated without bubble formation or off-gassing, resulting in nearly 100% oxygen utilization by the process. An initial commercial installation at a 12 mgd wastewater treatment plant has realized an operating cost savings of $34,000 per year over the previous aerators.
BlueInGreen LLC
Fayetteville, AR
Tel: 479-527-6378
Web: www.blueingreen.biz

Limescale treatment

Th 280638
Click here to enlarge image

ScaleBlaster is designed to eliminate formation of limescale deposits in water pipes, wastewater pipes, faucets, cooling towers, boilers, heating elements and more without the need of water softening equipment, salts, chemicals or maintenance. The unit is also effective in the removal of struvite. The integrated circuitry system produces a modulating frequency waveform that hits the resonant frequency of the calcium carbonate molecules causing them to lose their adhesive properties.
Clearwater Enviro Technologies
Clearwater, FL
Tel: 800-756-7946
Web: www.scaleblaster.com

Denitrification System

Th 280639
Click here to enlarge image

Severn Trent Services offers the Tetra® Denite® System for the removal of nitrate-nitrogen (NO3-N) and suspended solids (SS) in a single treatment step. Denite is a fixed-film biological denitrification process that also serves as a deep bed filtration system capable of removing suspended solids to virtually any final effluent requirement. The system integrates well with other plant treatment processes to provide superior total nitrogen (TN) and phosphorous removal.
Severn Trent Services
Pittsburgh, PA
Tel: 800-364-1600
Web: www.severntrentservices.com

Chlorination system

Th 280640
Click here to enlarge image

For over 30 years, Regal™ Gas Chlorinators, Sulphonators and Ammoniators have been used all over the world to disinfect and purify municipal drinking water and wastewater, industrial wastewater and more. The key to the safety, reliability and economy of the products is the simplicity of the design.
Chlorinators Inc.
Stuart, FL
Tel: 772-288-4854 Web: www.regalchlorinators.com

Centrifugal DAF pumps

Th 280641
Click here to enlarge image

EDUR Centrifugal DAF Pumps, available from Shanley Pump, are designed for dissolved air flotation applications or systems requiring gas charging of liquids. The pumps offer an efficient air saturation system for waste activated sludge thickening. They produce ultra-fine, 30-micron micro bubbles for optimum flotation and can reduce costs up to 40% when compared with previous DAF systems.
Shanley Pump & Equipment Inc.
Arlington Heights, IL Tel: 847-439-9200 Web: www.shanleypump.com

MBR membranes

Th 280642
Click here to enlarge image

Koch Membrane Systems has announced the launch of its new 1500 square meter Puron™ module for membrane bioreactor (MBR) applications. The improved submerged membrane module features greater packing density, lower energy costs for aeration, and simplified installation while providing even greater compatibility with other commercially available systems.
Koch Membrane Systems Inc.
Wilmington, MA
Tel: 888-677-5624
Web: www.kochmembrane.com

Packaged treatment plants

Th 280644
Click here to enlarge image

Hi-Tech packaged wastewater treatment plants are available from 1,500 - 100,000 gpd. These system can be a cost effective alternative to SBRs, RBCs and oxidation ditches. Advanced BNR treatment and automated multi-media tertiary filters are available when strict effluent limits are required.
Hi-Tech Environmental Inc.
Birmingham, AL
Tel: 800-264-7005
Web: www.hi-techenv.com

Blower parts

Th 280645
Click here to enlarge image

Gardner Denver has introduced a “Quick Ship” program for many common bearing and seal kits, as well as other critical replacement parts for its multistage centrifugal blowers. The company is committed to providing superior customer support, including high quality replacement parts. Many parts affect overall blower performance, and poorly designed or manufactured parts can result in reduced performance or durability.
Gardner Denver Engineered Products Division
Peachtree City, GA
Tel: 800-543-7736
Web: www.gardnerdenver.com
