Supervisory Control and Data Acquisition (SCADA) systems are critical to the safe, reliable and efficient operation of many potable water systems and wastewater treatment facilities.

Apr 1st, 2005
Th 173834

By Hany Fouda

Supervisory Control and Data Acquisition (SCADA) systems are critical to the safe, reliable and efficient operation of many potable water systems and wastewater treatment facilities.

System size and complexity can range anywhere from a few remote sites, with a handful of parameters, to several hundreds of sites comprising thousands of measurement and control parameters. By monitoring and controlling remote equipment and resources SCADA systems provide greater efficiency, in terms of faster and more coordinated system control than human operation, as well as lower operational costs and better use of scarce human and financial resources.

Yet despite the many benefits and undisputed efficiency and reliability of SCADA systems, they can present a security risk. SCADA systems are mainly designed to maximize functionality, operational efficiency and robustness. Consequently, not enough attention is paid to security. By nature, SCADA systems monitor/control equipment and assets that are dispersed over a vast geographical area, from a central location. However, many sites are in remote locations, making them ideal targets for intruders and vandalism. In addition, the adoption of standard technologies with known vulnerabilities, the widespread use of commercial off-the-shelf equipment, and the increased connectivity of SCADA systems to the Internet, have only aggravated matters. This has made some systems potentially vulnerable to cyber attacks, vandalism and other types of malicious mischief that could result in disruption of services, process re-direction and manipulation of operational data.

SCADA in Security

Since most utilities operate with budget restraints and limited personnel, keeping an eye on remote equipment and resources is challenging. However, modern SCADA systems can significantly extend the ability to secure remote assets and provide the tools necessary to mitigate current and future risks.

The issue of physical security, i.e. access-control, intrusion-detection, perimeter-control and cameras, can be tied to an existing SCADA system in order to provide a wider view of the situation at remote sites and allow for coordinated responses from the utility.

For example, a keyless entry device such as a card reader, connected serially to a PLC/RTU, would allow site access to be automatically time-stamped in the controller as well as at the central site. A motion or intrusion detector can be connected to the PLC/RTU digital input board, providing instant alarm notification and logging at the central site. Intrusion sensors can also be deployed at access gates, doors, ladders and manholes. Alarm records would then be correlated with other operational information to obtain a very precise picture of the overall situation.

Furthermore, due to the widespread use of high-bandwidth wide area networks (WANs), inexpensive IP-based web cameras can be used to provide video frames from remote locations. These video pictures would be transmitted over a wireless IP radio network, such as Ethernet Spread Spectrum radios and Wi-Fi technology, or by using conventional wire-based networks such as fiber optic and high speed leased lines.

Physical security can also be part of a SCADA system’s comprehensive control and operation strategy. For example, if a remote site has been breached, the SCADA system can automatically perform a safe shutdown of the remote assets in order to isolate the problem and limit widespread service disruption or contamination.

SCADA systems can also be used as an advance warning system against biological and chemical threats. The release of harmful amounts of water treatment chemicals, such as chlorine, into the public’s drinking systems would be devastating. A water system that continuously monitors and logs water quality parameters such as pH, turbidity, chlorine level, and dissolved oxygen can quickly detect equipment malfunction, contamination or raw sewage spillage.

In addition to enhancing physical security, cyber security (also known as network security) must not be ignored. Traditionally, in medium to large utilities, physical and cyber security were two completely independent functions handled by separate groups. Recently, however, the line separating both functions has disappeared, bringing an increased focus on protecting both bricks and bytes. SCADA systems, like all computer networks, are vulnerable to hacking, intrusions, viruses, data loss, data alteration and the like.

The implementation of cyber security involves a number of strategies, including:

• Initially identifying all available connections to the SCADA system. These include local access to other enterprise networks, remote access via modems and wireless radios, and the Internet.

• The use of Intrusion Detection Systems (IDS) as a first line of defense. IDS act like a burglar alarm for the computer network by detecting unauthorized access attempts. There are basically two main types of IDS being used today: network-based (packet monitoring), and host-based, which typically inspects system logs for evidence of malicious or suspicious real-time application activity.

• Firewalls, which, when properly configured, provide protection against intrusion at a point of entry. A firewall monitors traffic across the network and examines every packet of data before allowing it to pass through.

• Remote Access Service (RAS), which allows legitimate users to access the SCADA system from off-site locations. RAS should be used in call-back mode only. This means that when an administrator makes a dial-in attempt, in order to check for alarms or system status, the RAS hangs up and initiates a call back from a pre-configured list of phone numbers.

• Anti-virus protection software that should be deployed and regularly updated on the network to protect the system from computer virus threats as well as spy ware and keystroke loggers.

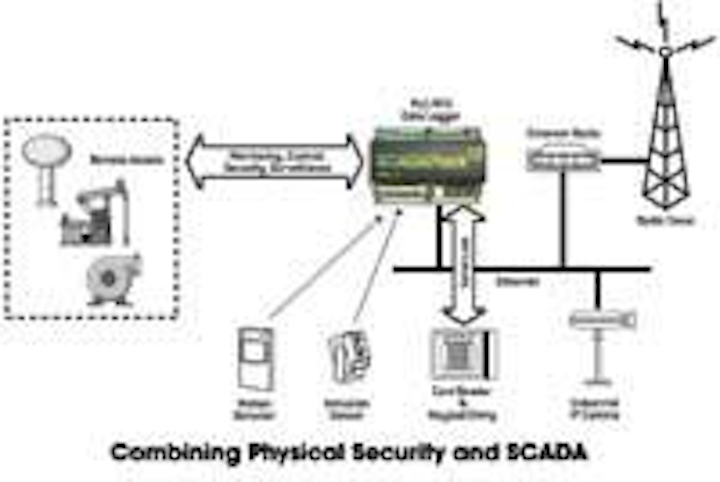

Click here to enlarge image

The aforementioned tools should be augmented by strong password practices. Modern PLCs/RTUs support multi-level password authorization to protect against program/application changes and can transfer data, using standard protocols such as DNP 3.0, to multiple locations, thereby allowing data-sharing and dissemination among a number of pre-selected users/operators in a secure environment. Since the user is only allowed to receive the data but cannot talk directly to the RTU, the security risk is low. This scenario is common in oil/gas custody transfer stations.

Authentication, a method by which the system ensures that the user is in fact a legitimate one, is supported by most industrial software applications that normally reside at the central location. Security-based authentication schemes enforce various account policies and provide seamlessly integrated security throughout the system.

Encryption of wireless communication traffic is another aspect of cyber security that should be considered. Wireless radio networks that use spread spectrum technology are inherently secure to attacks by outsiders. This is due to the ability of spread spectrum radios to transmit data while hopping among a number of unique frequencies in a pseudo-random sequence. This proprietary frequency-hopping technique cannot be intercepted by other commercial radios on the market.

In addition to frequency hopping, most radio manufacturers use their own proprietary modulation technique that is not publicly made available. Without proper documentation, hackers need very sophisticated and expensive equipment to be able to record and analyze the wireless transmissions. For additional security, some radio manufacturers encode a unique serial number or identification number into the radio firmware, allowing the user to determine with which other radios a given site will communicate. If a radio is stolen, the user can eliminate its serial number immediately from the master radio list, blocking it from accessing the communication traffic. Furthermore, third-party encryption/decryption modules that encrypt data before it gets to the radio network can be deployed for added security.

Increasing the security of critical services by using existing infrastructure such as SCADA systems is an attractive proposition from the value perspective. As most utilities have already invested in building their SCADA systems, coupling them with strong physical and cyber security measures is a natural progression. Conducting routine self-assessments and scenario planning can help utilities identify security risks and develop counter measures before incidents occur.
