Better Blending: Plant Boosts Polymer Performance with Three-Stage Mixing Regimen

The City of Mankato, Minn., Water Treatment Plant installed ProMinent Fluid Controls’ ProMix-S polymer blending and delivery system as a result of poor mixing and inadequate activation with its existing polymer system. ProMix-S reduced polymer usage by 20 percent during head-to-head pilot testing, and the clarifier also achieved better settling of solids in the softening reactor being served by the new unit.

Dw Treatment 2 Prominent Promix With


By Jim Jones

Staff at the City of Mankato, Minn., Water Treatment Plant were experiencing problems with the existing polymer system: poor mixing and inadequate activation, as well as a number of maintenance issues that cost the city time and money. The plant elected to install a new polymer blending and mixing system that provides efficient polymer activation through a 3-stage mixing system.

Dw Treatment 2 Prominent Promix With

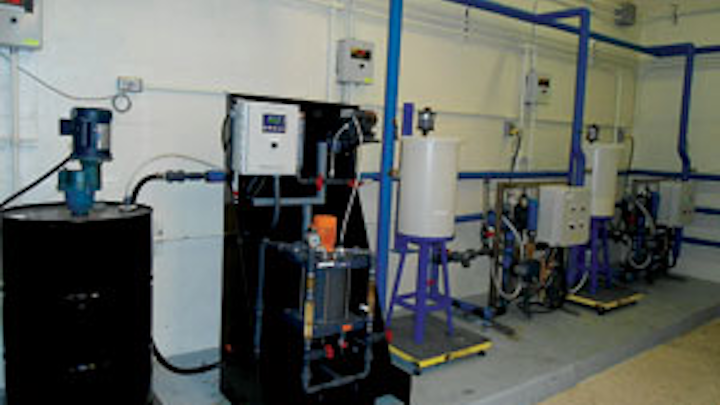

The ProMinent ProMix-S unit provides a multi-zone mixing chamber that delivers a tapered energy profile for hydrating and mixing polymer to a homogeneous and fully-activated solution. The plant's former single zone system (right) required day tanks that feed from the 55-gallon supply drum.

For 18 months, the new polymer system treated one softening reactor, while the older system continued to treat the other reactor. This provided plant management the opportunity to observe first-hand the advantages of programmed 3-stage mixing under normal, day-to-day operating conditions.

During the initial 18 months operating the new system, the plant witnessed a significant reduction in polymer use, equating to smaller polymer doses, while also achieving improved settling of solids in the plant's softening reactor, especially at higher flows.

System Overview

Mankato, with a population of approximately 40,000, receives raw water from two surface wells and two deep wells. The water treatment plant, which is operated 24/7, has a rated capacity of 12 million gallons per day (MGD) and average production of 5.5 MGD. Water enters the plant from the well-field through a 24-inch line to two softening reactors. Following hardness removal, the water enters a recarbonation basin before the water is directed through ultrafiltration membranes. After filtration, chlorine and fluoride are added before the finished water flows into reservoirs and is then pumped into the city's distribution system.

Dw Treatment 1 Prominent Pic Watertreatmentplant
Mankato's water treatment plant and other supporting projects (reservoirs, booster stations and wells) enhance water quality and will meet the city's needs well into the future.

The plant's two softening reactors provide 3-stage lime softening -- including rapid mix, gentle mix and clarification -- all carried out in a single tank separated by baffles. Emulsion polymer is used as a flocculation aid and is added simultaneously with the lime and raw water as it enters the plant.

Existing Polymer System

The older, existing polymer preparation system consisted of three in-line polymer mix/feed units -- two on duty and one for backup. From the beginning, operators had struggled to consistently make proper polymer solutions with this system.

The single-stage unit had been initially set up so that a diaphragm metering pump would pull the emulsion polymer directly from a 55-gallon drum. However, the pump serving it wasn't big enough to deliver the sufficient suction lift necessary to pull the product out of the drum and into the pump.

As a workaround, the plant installed three 15-gallon day tanks positioned hydraulically above three pumps, relying on the raised height to provide the needed flooded suction. Using this setup, the plant pumped emulsion polymer out of the 55-gallon supply drum into the three day tanks.

With this modification, there continued to be problems and inefficiencies with the system. Although the 55-gallon drum had mixing capability, the day tanks did not, so the polymer was susceptible to separation. The day tanks were covered but not sealed, so moisture intrusion was a potential problem that could cause further inefficiencies if the polymer coagulated. Coagulated polymer (poly with moisture) tends to plug the chemical feed pumps, requiring disassembly and cleaning of the pumps.

Dw Treatment 4 Prominent Softener1 png
Improved polymer activation and feed at Mankato's Water Treatment Plant, through the addition of a ProMix-S polymer blending and delivery system, has brought improved solids settling in the plant's softening reactor, especially at higher flows.

The modification allowed for the existing blending and feed system to achieve the pounds of polymer required at lower plant flows. However, consistent performance remained problematic at higher flows.

In addition, the system was maintenance-intensive, including frequent ejector replacement at $300 for each failure. The mixing units had problems with plugging, and pump parts required frequent replacement. Maintenance personnel had to perform a complete takedown of the system every month, including the mixing units and pumps (ball-valve and check-valve replacement), pump recalibration and day-tank cleanout. The plant spent more than $1,500 per year on parts for the existing system and more than $2,000 in estimated staff labor to maintain it.

Pilot Testing

In 2012, plant management decided to run a trial on the ProMinent ProMix-S polymer blending and delivery system. The system was set up so that the unit feeds polymer solution to one of the plant's softening reactors, while the existing polymer system serves the other softener/clarifier.

The reduction in polymer consumption with the ProMix unit compared to the plant's existing system proved significant during the performance trial. Its robust operation and ease of use was also apparent. Based on the highly-positive performance results during the trial, Mankato elected to purchase the unit and continue evaluating the plant's polymer usage and associated system performance.

The ProMix-S system is designed with three specific zones of polymer activation (see Fig.) compared to the plant's older unit, which had only a single zone. The first polymer activation zone (A) provides high mixing energy to achieve the successful initial wetting of the polymer to prevent fisheye formation. The second zone (B) provides medium mixing energy to provide optimum mixing without damaging the expanding polymer chains that have been activated and are very fragile at this stage. The third zone (C) reduces the mixing energy even further, providing very gentle mixing to ensure that the polymer solution becomes fully homogeneous. The three-zone activation system also provides for slightly longer retention time prior to use.

Dw Treatment 3 Prominent Vortex
The ProMix-S system is designed with three specific zones of polymer activation.

The ProMix-S provides an LCD display (including primary and secondary flow display) with touchpad control. It has remote start/stop and programmable auto-flush. The system also features 4-20-mA input to pace the pump and provides connections for Ethernet communications and datalogging. The unit is connected into the plant's SCADA system, and polymer dosing changes with the plant's flow.

Lower Polymer Use, Better Solids Settling

The new system reduced polymer usage by 20 percent during head-to-head pilot testing. The clarifier also achieved better settling of solids in the softening reactor being served by the new unit -- something that had always been problematic with the older unit at higher flows. Based on the results of the trial, an approximate 14-month payback was estimated on the purchase of the new system, based on parts, labor and polymer savings.

During the pilot, when a softener was taken out of service, the staff would switch over to the new polymer system to serve whichever reactor was operating. In the summer, the plant typically runs both softeners. In the winter, however, sometimes only one reactor operates at a time, and polymer was directed there from the new blending and delivery unit. The new polymer unit has not been taken out of service since it was pilot tested.

The system required very little adjustment and remained well-calibrated. The plant has not yet been required to change out the pump's peristaltic hose, neat seat or check valve into the mixer since July 2012.

After 18 months using the new system, the plant has purchased two additional ProMix-S units due to the high efficiency gained and quick return on investment. The two new polymer systems will further decrease maintenance issues and reduce polymer usage while helping with operations and management of the facility. Overall, the system has proven to be a reliable and cost-effective polymer feed solution for Mankato, Minn.

About the Author: Jim Jones, water treatment superintendent for the city of Mankato, holds a B.S. in Biology from St. Cloud State University and an AAS in Water Treatment Technologies from St. Cloud Technical College. He has been working in the water treatment field for 16 years. He can be contacted at jjones@city.mankato.mn.us.
