Products & Services: ODOR CONTROL

Solvay Chemicals' Interox® Hydrogen Peroxide is used to control sulfide odors either in the aeration basin or polishing ponds.

Pennwell web 210 140

Hydrogen peroxide

Pennwell web 210 140

Solvay Chemicals' Interox® Hydrogen Peroxide is used to control sulfide odors either in the aeration basin or polishing ponds. In sewage treatment, it can control sulfide and reduce corrosion throughout the treatment system, including rising mains and in the treatment plant itself. Hydrogen peroxide reaction products are environmentally compatible, consisting of simply water and oxygen.
Solvay Chemicals Inc.
Tel: 800-765-8292
Circle No. 200 on Reader Service Card

Cover systems

Pennwell web 210 144

GTI's structurally supported cover system consists of a retractable sheet of high strength, UV protected, coated fabric tensioned across a series of low profile aluminum arches which span a tank opening. Applications include odor control, blocking sunlight, temperature control, or preventing debris from entering the tank. The fabric cover is sufficiently air tight to capture odorous offgas for removal by a ventilation system, yet it can be detached on three sides and retracted to expose the tank contents for inspection or maintenance.
Geomembrane Technologies Inc.
Fredericton, NB, Canada
Tel: 506-452-7304
Circle No. 207 on Reader Service Card


Pennwell web 210 151

The Duall BIO-PRO™ is an environmentally friendly, low-profile bioscrubber. Gaseous pollutants are absorbed then biodegraded by bacteria immobilized as fixed films on multiple biomedia cassettes. Recirculation of microorganisms present in the recycle liquid continuously scours the biobeds and creates virtually no significant pH gradient, thus providing a homogenous acidic pH traversing the first biobed and a neutral pH in the second.
Duall Division, Met-Pro Corp.
Tel: 989-725-8184
Circle No. 208 on Reader Service Card

Wet scrubber systems

Pennwell web 210 140

Severn Trent Services offers the EST™ Wet Odor Control Scrubber Systems in multi-stage and low-profile construction to treat malodorous gases emanating from municipal and industrial wastewater treatment facilities. The Type "SOS" - SideWinder Odor Scrubber is a low profile multistage gas absorption system for capacities to 20,000 cfm. The system treats odors emanating from wastewater treatment plants, composting sites and other industrial sites that generate odors. Caustic and bleach solutions treat hydrogen sulfide and other sulfur bearing compounds.
Severn Trent Services
Colmar, PA
Tel: 215-997-4000
Circle No. 201 on Reader Service Card

H2S monitoring

Pennwell web 210 154

The Model Q45S odor monitoring system from Analytical Technology Inc. uses a specially designed "wet H2S sensor" and can measure concentrations up to 200 ppm or very low levels down to 0.5 ppm. The monitor provides a large LCD display showing concentration with a second display line to show other status information. Two 5 amp alarm relays are offered along with a 4-20 mA signal.
Analytical Technology Inc.
Collegeville, PA
Tel: 800-959-0299
Circle No. 206 on Reader Service Card

Gas monitor, scrubber controller

Pennwell web 210 201

Vapex Sentinel systems deliver operational savings for wet chemistry odor-control scrubbers with significant reductions in chemical usage (up to 50 percent), and reduced scrubber maintenance by limiting the scaling effect of chemicals on the scrubber media. The system continuously monitors the internal gas passing through the scrubber and sends control signals to regulate chemical pump additions. Based on sensor data points, the system can either directly control the feed pumps metering chemicals into the scrubbers, or interface with the pump control system to provide the appropriate amount of chemicals.
Vapex Products Inc.
Orlando, FL
Tel: 888-907-0004
Circle No. 209 on Reader Service Card

Biotrickling filter

Pennwell web 210 301

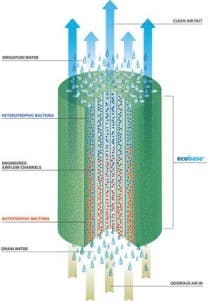

BioAir Solutions offers biological odor control systems using the company's new EcoBase™ synthetic media. The media features engineered flow channels designed to eliminate plugging and maintain a controlled microenvironment. The media can treat higher odor loadings in less time. The company's EcoFilter™ biotrickling filters can removed 95% of overall odors and 99.9% of hydrogen sulfide from the airstream, without the use of hazardous chemicals or expensive carbon media.
BioAir Solutions LLC
Voorhees, NJ
Tel: 856-258-6969
Circle No. 202 on Reader Service Card

Odor neutralizer

Pennwell web 210 161

All natural BioWorld Odor Neutralizer is a water-based concentrated liquid that eliminates offensive odors at their source. The technology safely neutralizes unpleasant odors, making them undetectable to the human sense of smell. Environmentally safe, it can eliminate most odors, including asphalt, sulfides, mercaptans, paint, urine, skunk and fish.
BioWorld Products LLC
Visalia, CA
Tel: 800-882-0225
Circle No. 205 on Reader Service Card

Odor monitoring

Pennwell web 210 135

OdoWatch®, available through N.A. Water systems, provides continuous, real-time odor monitoring at municipal wastewater treatment plants. The system automatically alerts operators to the need for adjustments to prevent odor complaints. The electronic nose transmits data to a central control unit that uses meteorological data to perform real-time dispersion modeling and display the results as a color-coded plume overlaid on a map of the site.
N.A. Water Systems
Tel: 800-337-0777
Circle No. 210 on Reader Service Card

Odor, corrosion control

Pennwell web 210 158

The ECO2 SuperOxygenation technology from Eco Oxygen Technologies eliminates the formation of hydrogen sulfide using a device called the SuperOxygenation Cone. Pure oxygen is dissolved into the wastewater to prevent the formation of hydrogen sulfide by keeping the pipeline aerobic. As hydrogen sulfide is eliminated, the "rotten egg" odor associated with the gas is eliminated and no sulfuric acid is formed to corrode conveyance structures.
Eco Oxygen Technologies, LLC
Indianapolis, IN
Tel: 317-706-6483
Circle No. 203 on Reader Service Card

Odor control

Siemens Water Technologies offer a full service odor control program approach to helping wastewater collection and treatment facilities control odors. With a wide range of odor control technologies for the liquid and the vapor phase, the company can provide a single product or combination of equipment and treatment methods as well as customized service contracts.
Siemens Water Technologies Corp.
Tel: 847-713-8458
Circle No. 204 on Reader Service Card

Dry-scrubbing media

Pennwell web 210 200

Purafil's Environmental Systems Division (ESD) has released its newest dry-scrubbing media, Odorcarb™ Ultra, as the first activated alumina media with the ability to remove 0.30 grams of hydrogen sulfide per cubic centimeter of media. The new product replaces Odorcarb II as the primary component of Purafil ESD's odor control applications. Similar to its predecessor, the new, improved media also contains the Media Life Indicator Pellets (patent-pending).
Doraville, GA
Tel: 800-222-6367
Circle No. 211 on Reader Service Card
