The Perfect Pair: Glass-Fused-to-Steel Tanks Ease Pressure on Small-Town Growth

In this case study, Rapid Valley Sanitary District (RVSD) in Rapid City, S.D., yielded significant cost savings from the installation of a bolted glass-fused-to-steel liquid storage tank. Part of the move toward self-sufficiency was the construction of a 166,000-gallon steel water tank in the 1960s. In 2000, after decades of growth, RVSD installed another tank, a 256,000-gallon Aquastore® glass-fused-to-steel tank from Engineering America.

Cs Tanks 4 Rpaid Valley Sanitary District Tanks Copy


W
ith a bustling population nearing 10,000, the small but fast-growing community of Rapid Valley, S.D., has become an attractive alternative to bigger city living. Its low crime rate, affordable land and impressive views of the Black Hills create the perfect backdrop for the steadily increasing collection of homes and businesses being built there.

Rapid Valley's need for an abundant source of safe water to ensure its long-term growth and vitality has been clear from the start. Established in 1966, Rapid Valley Sanitary District (RVSD) was formed to provide water and sewer service to the small rural community developing approximately 10 miles east of Rapid City. For many years, RVSD purchased water from the city, but it later became more self-sufficient in the production of water.

Glass-Fused-to-Steel Seals the Deal

Part of the move toward self-sufficiency was the construction of a 166,000-gallon steel water tank in the 1960s. In 2000, after decades of growth, RVSD installed another tank, a 256,000-gallon Aquastore® glass-fused-to-steel tank from Engineering America.

That tank, an ideal choice for municipal and industrial applications due to its low-maintenance, high-durability porcelain enamel (glass-fused-to-steel) coating, has performed so well over the past 14 years that it became the obvious choice when it was time to replace the aging 1960s tank in 2014.

Cs Tanks 4 Rpaid Valley Sanitary District Tanks Copy

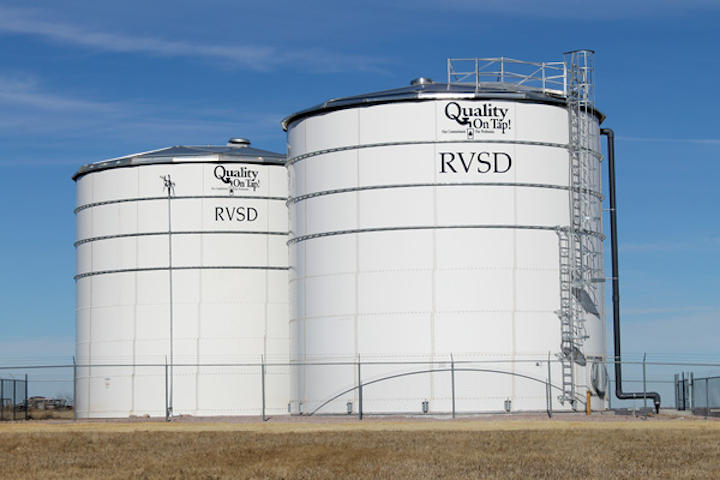

Rapid Valley Sanitary District's water storage tanks.

"We needed to accommodate the area's growth and have enough water in storage for emergency and fire protection," said Rusty Schmidt, RVSD general manager. "Our older epoxy-coated tank was experiencing structural issues and corrosion problems." The newer Aquastore tank was showing no signs of wear on its exterior or interior coating even at 14 years old. "So we decided to install a second tank just like it," he said.

Ted Schulz, operations manager at AE2S, the engineering firm that designed the tank, said the need for additional storage was apparent as the District grew. "The installation of the second Aquastore tank was part of a two-prong approach to provide more storage and replace the older tank, which was failing due to corrosion of the painted steel exterior and notable ice damage inside the tank," he explained. Several leaks had been patched over the last few years, and the steel walls were very damaged due to ice problems. "We wanted to get it resolved before the area's summer peak season."

Cost-Effective Alternative to Epoxy Coatings

The new 257,869-gallon, glass-fused-to-steel tank is 36 feet tall and 33 feet in diameter and was built on a hill next to the other Aquastore tank, exposing it to the elements. The wind can be quite strong at times, so RVSD needed a tank that would not be susceptible to damage from blowing debris.

The factory-applied silica glass coating on Aquastore tanks forms a hard, inert barrier for both the interior and exterior tank surfaces, guarding against weather conditions and corrosion. Glass fused to steel is impermeable to liquids and vapors, and controls undercutting caused by corrosion, which offers excellent impact and abrasion resistance.

"We did a cost comparison between a welded-and-painted tank and the Aquastore glass-fused-to-steel tank," said Schmidt. "It was soon evident that the Aquastore tank provided a long-term value that exceeded any epoxy tank. You can recoup your initial capital costs quickly just saving maintenance costs."

That's because epoxy coatings are expensive and time-consuming to paint -- and typically need repainting every 15 years over a 75-year lifespan. In contrast, the Aquastore tank provides a solid, virtually maintenance-free exterior that never needs to be repainted. Unlike an epoxy coating, the glass-fused-to-steel coating is inert and stable. It doesn't fade, chalk or degrade –– a bonus when the water tanks are part of the landscape in such a picturesque location.

Accommodating a Varied Terrain

Another consideration in choosing the Aquastore tank was the District's terrain. "The drain in this part of the valley is through undulating hills," explained Schultz. The tank is at the top of the hill providing service and pressure to several hundred homes. The area around it now is pasture, but the community is growing quickly. "Each year, 20 to 40 houses are added that will need to be served by the District," Schultz said. "This storage tank is located in the high-pressure zone and includes a booster station that pumps to this level."

Many systems have multiple pressure zones depending on the terrain and different tank elevations. "When systems expand and grow, you may need to build booster stations to pump water to the higher elevations," said Schultz. "This can go the other direction as well." If the system expands to lower elevations, pressure-reducing valves may be required to reduce the water pressure as it goes to these lower developments. "The new tanks were built at a high elevation to accommodate the area's continuing development and need for storage, emergency and fire flow capacity to the higher zone," he said. "With them, we can optimize our booster stations operational run times more efficiently."

'Quality On Tap!'

The choice to work with Engineering America again was an easy one, noted Schmidt. "The slogan on our water tanks is 'Quality on Tap!'" It is a testament to RVSD's commitment to produce potable drinking water that meets or exceeds all South Dakota Department of Energy and Natural Resources requirements. "It also means that quality is super-important to us," he added.

"Engineering America has been around for 35 years, and the crews are great to work with. The community is very pleased, and our board members all find it to be a well-done project," he continued. "Plus, the tanks are matching now. They look great, and that's important too because they can be seen from miles around."

Since 1980, Engineering America has operated in the municipal and industrial marketplace offering complete and comprehensive storage tank solutions building and maintaining CST brand bolted liquid storage tanks as well as CST custom-designed geodesic-domed or flat aluminum storage tank covers. Its factory-certified crews have installed over 1,000 bolted steel liquid storage tanks in 19 states. EAI can also provide tank inspections and routine maintenance, thereby providing customers with a one-source solution for their liquid storage needs.
