Inline Check Valve for Heavy-Duty Applications

The ProFlex® Style 750 inline check valve from Proco Products is designed for heavy-duty applications where elements such as abrasive slurries or sludge are present. The enclosed body check valve features a maintenance-free design with no hinges or seals to bind or freeze. Further, operation costs are eliminated since no external power sources are required.

Weftec Proco 12in 750 003


T
his year at WEFTEC, Proco Products will be displaying a number of products for the water and wastewater industry, among them is the ProFlex® Style 750 inline check valve. This check valve is designed for heavy-duty applications where elements such as abrasive slurries or sludge are present.

The enclosed body check valve features a maintenance-free design with no hinges or seals to bind or freeze. Further, operation costs are eliminated since no external power sources are required.

Weftec Proco 12in 750 003

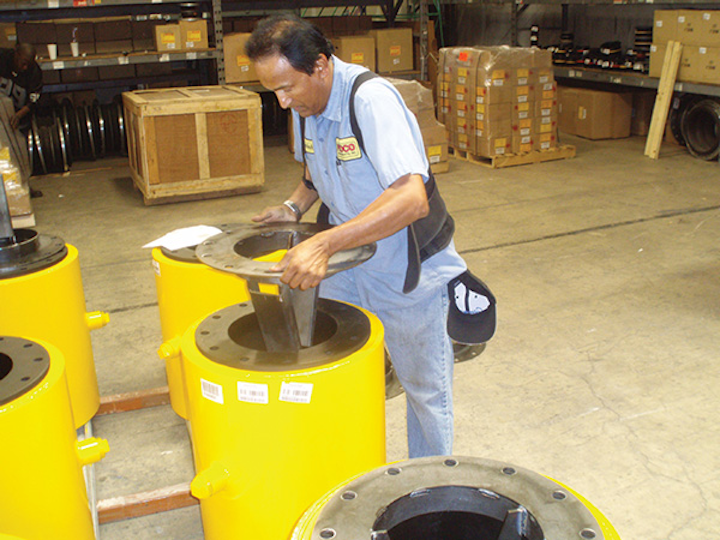

The ProFlex Style 750 inline check valve.

The internal valve features low head loss with a full-port design, which opens with minimal head pressure and closes with any back pressure exerted on the valve. The 750 Series valve is provided with two cleanout ports and is manufactured from carbon steel with an epoxy coating. The bolting dimensions are in accordance with ANSI 125/150# pattern.

The Style 750 inline valve offers a number of other features, including:

  • Availability in sizes 2 to 36 inches
  • Abrasion-resistant elastomer
  • Maintenance-free design
  • Exceptional backflow prevention

In addition, a unique advantage of the valve is its ability to offer zero valve slam, which can often occur upon pump shutdown. Valve slam is the amount of energy applied to the downstream seat of any valve when flow comes back or attempts to close the seat when a pump shuts off. If the energy is great enough, it will destroy a steel bodied valve. With the Series 750, the rubber duckbill check valve inside absorbs the energy that would normally be absorbed by a steel valve.

Proco Products Inc.is an exhibitor at WEFTEC.15 and can be found at Booth 1417.
