Vertical-mounted mixing gear

Santasalo’s AMF vertical-mounted gear unit series is purpose-built for the most demanding vertical applications with high external forces without the need for external cooling.

Content Dam Ww Print Articles 2016 05 1605wwprd P06

Content Dam Ww Print Articles 2016 05 1605wwprd P06

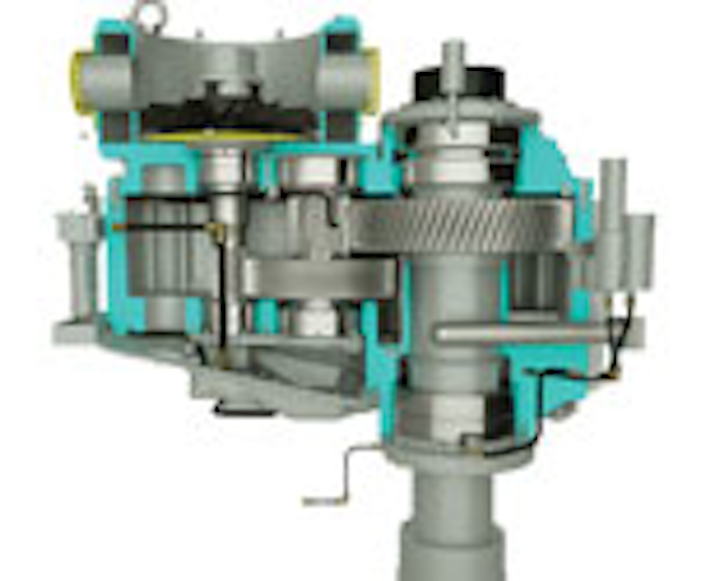

Santasalo’s AMF vertical-mounted gear unit series is purpose-built for the most demanding vertical applications with high external forces without the need for external cooling. By incorporating a bidirectional axial fan, optimized housing design and additional new features, Santasalo’s AMF vertical gear unit provides high thermal capacity and eliminates the need for external cooling in extreme ambient conditions. Direct drive construction with electrical motor and flexible HSS coupling ensures high efficiency, while the highly optimized gear unit lay-out results in cost savings and smaller footprint. These two- or three-stage vertically mounted helical gear units feature a power range of up to 750 kW and nominal output torque of up to 200 kNm, as well as a reversible operational direction. Their robust design ensures they’re easy to transport and install without risk of damages.

Santasalo

www.santasalo.com
