Transmitter

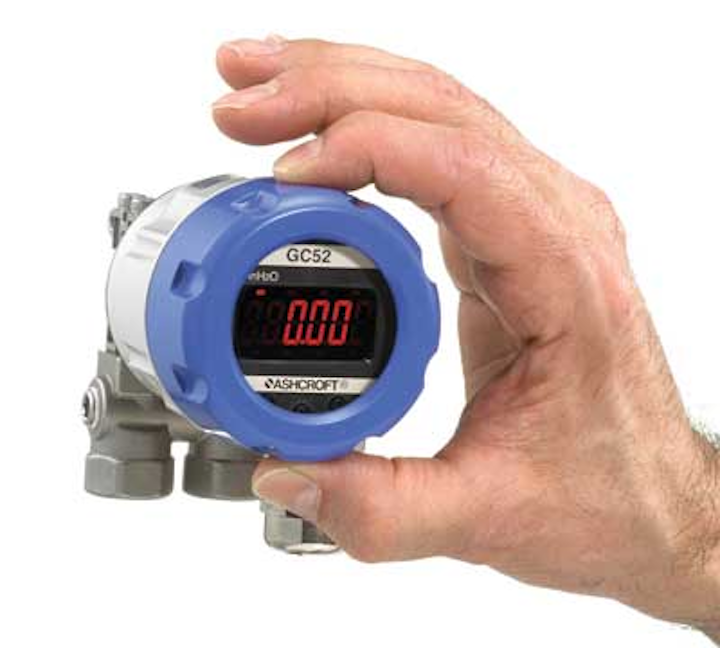

The Ashcroft® Model GC52 is a uniquely-compact wet-wet low differential pressure transmitter, ideal for measuring pressure drop across filters and membranes.

Ashcroft 1311ww
Ashcroft 1311ww

The Ashcroft® Model GC52 is a uniquely-compact wet-wet low differential pressure transmitter, ideal for measuring pressure drop across filters and membranes. With the push of a button, the GC52 can also provide direct flow readings by measuring dp across a deliberate restriction. It is available in unidirectional ranges from 0" to 4" through 0" to 400" WC and bi-directional ranges up to ± 200" WC. The GC52 also operates online (static) pressures up to 300 psi. A rugged aluminum NEMA 4X/IP65 enclosure measures only 2.56" in diameter and incorporates an LCD display for local reading. The output is a two-wire configurable 4-20 mA signal that can be adjusted to re-range the transmitter or "tare" unwanted fluid head preloads.

Ashcroft Inc.
www.ashcroft.com
