Automated Controller Helps Improve Fluid Management in Industrial Operations

Ingersoll Rand provides touch-and-walk-away automation with the new ARO Controller. The controller can detect leaks, sense and respond to liquid levels, accurately control proportions, control flow-rates, and operate two pumps simultaneously, each with up to two batches. The result is a fully automated, multi-pump system for batching and container and tank filling.

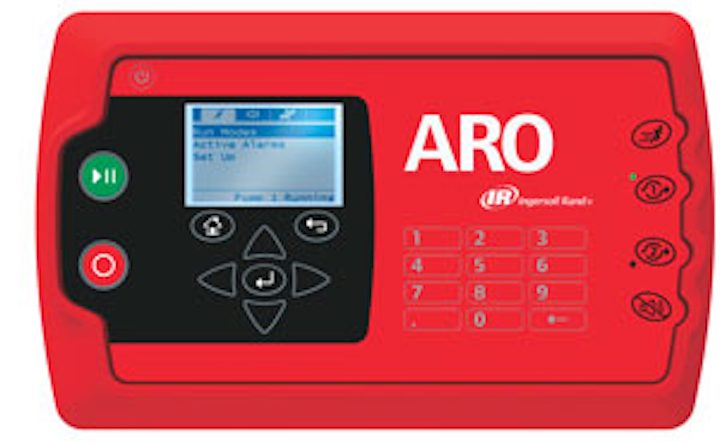

Product Focus Aro Controller Front


I
ngersoll Rand, a global specialist in compressed air systems and services, power tools and fluid and material handling equipment, provides touch-and-walk-away automation with the new ARO® Controller. The controller works seamlessly with ARO EXP Series Electronic Interface pumps and can be integrated with many existing EXP pumps when an electronic interface package is added. The result is a fully automated, multi-pump system for batching and container and tank filling.

Product Focus Aro Controller Front
Ingersoll Rand delivers on the promise of touch-and-walk-away automation with the new ARO Controller.

"ARO is proud to now offer a complete system solution that helps manufacturers and operators manage fluid easily and intelligently, with less operator oversight required," said Nelson Wesley, global product leader for diaphragm pumps. "Less time standing at the pump means more time on the floor making sure things are running smoothly. The remote operating capabilities of the new ARO Controller help manufacturers increase productivity, reliability and safety."

The ARO multi-pump controller can be programmed with remote triggers customized to the application in which it's being used. It responds to those triggers, performing auto-shutdowns when necessary and sending data and service alerts to the operator. Based on that information, the operator is able to make intelligent fluid management decisions to keep business moving.

For example, triggers can notify operators when it is time for predictive maintenance, when a leak has been identified or when liquid levels are low -- elements that work together to reduce downtime. Remote operation also allows for safer monitoring.

The ARO Controller improves upon the already precise ARO EXP pump by introducing a closed-loop system with proprietary logic to ensure the pump is fully primed. This results in a dispensing or batching system with ±1% repeatability. The controller also features an easy-to-use interface that is pre-programmed with eight languages, supporting the needs of a diverse workforce and global operations.

The ARO Controller can detect leaks, sense and respond to liquid levels, accurately control proportions, control flow-rates, and operate two pumps simultaneously, each with up to two batches. The system replaces the operator-intensive systems of the past and helps customers monitor their fluid management in a smart, straightforward way.

The ARO Controller and electronic interface pumps are ideal for a wide array of applications such as batching and container and tank fill in numerous markets. Industries include, for example, chemical processing, commercial laundry, paint and ink formulation, car wash dispensing, electronic (microchip) manufacturing, coatings and surface finishing, and water and wastewater processing.

Model options include a base controller or an interface with one or two pumps. Operating temperatures range from -20˚C to +70˚C, while storage temperatures range from -30˚C to +80˚C. Further, digital inputs and outputs include 24 VDC, and analog inputs and outputs comprise 4-20 mA. External power also includes V-in of 90 to 264 VAC, V-out of 24 VDC (± 5%) and I-out of 3A.

Whether formulating ink, paint or chemicals, dispensing detergents or injecting chemicals, the ARO system provides precise results consistently. The new controller became available in November 2014 for order worldwide.

For more information on the ARO Controller and intelligent fluid management solutions, visit www.AROzone.com.
