Folding blade mixers

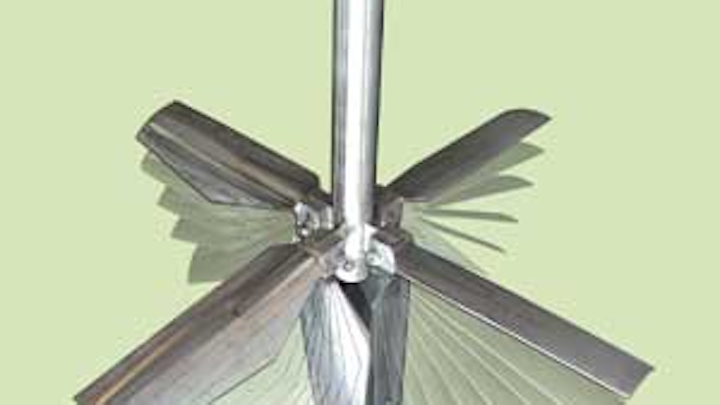

Sharpe Mixers Folding Blade HYFLO 218 Impellers feature a hydrofoil-style, 4-blade design that folds for easy installation and opens with centrifugal force; locking in place when fully opened.

Sharpe 1301iww
Sharpe 1301iww

Sharpe Mixers Folding Blade HYFLO 218 Impellers feature a hydrofoil-style, 4-blade design that folds for easy installation and opens with centrifugal force; locking in place when fully opened. Eliminating the need for personnel to enter the tank, these folding impellers are designed for new and retrofit installations that do not allow for impeller assembly inside of a tank. Available in sizes up to 210" dia., the impellers permit greater flexibility in tank designs and the blade locking mechanism can be accessed from outside the tank for removing the mixer, if necessary. Retrofit applications include side entry for large storage tanks or top entry when the tank service has changed and a new mixer is required.

Sharpe Mixers
www.sharpemixers.com
