Flow Meter Offers Built-In Flow Conditioning

Flow meters and pumps in water and wastewater treatment applications frequently come into conflict during retrofit and expansion projects ...

Th 283103

by Jim Panek

Flow meters and pumps in water and wastewater treatment applications frequently come into conflict during retrofit and expansion projects when process engineers place them too closely together. Liquid flow meters require a minimum upstream/downstream straight pipe run between pumps and other equipment in order to operate effectively. Many times, however, the required plant real estate is simply not available.

Th 283103

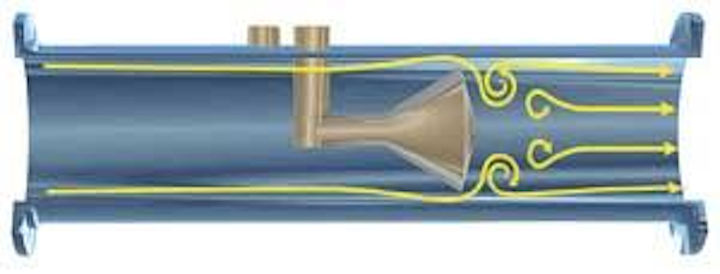

The V-Cone forms very short vortices as the flow passes the cone. These short vortices create a low amplitude high frequency signal for excellent signal stability. The V-Cone’s contour-shaped cone directs the flow without impacting it against an abrupt surface and minimizes headloss.
Click here to enlarge image

In the case of flow meters, failure to comply with upstream/downstream straight pipe diameter requirements leads to either poor accuracy or inconsistent performance (repeatability problems). With pumps, unstable or irregular flows can impact performance and eventually result in maintenance problems, such as dry-running conditions or cavitation. Placing valves and elbows too closely to flow meters and pumps can result in similar types of problems.

Th 283105
Pipe flow profiles are rarely ideal. Practically any change to the piping can disturb even a well-developed flow profile. The contoured shape and location of the cone in the V-Cone Flow Meter overcomes this challenge by reshaping the velocity profile upstream.
Click here to enlarge image

The effect of improper pipe and equipment layouts are especially problematic for flow meters. Poorly planned layouts result in irregular flow profiles that reduce measurement accuracy and repeatability. For this reason, flow meter manufacturers typically require anywhere from 5 to 10 or even 20 to 30 pipe diameters of straight pipe run upstream and downstream of the flow meter — depending on the flow sensing technology in use.

Flow Conditioning

The solution to this problem can be as simple as following the manufacturer’s specifications for upstream/downstream straight pipe runs. Many times problems can be avoided by working with the flow meter or pump supplier to make sure the installation set-up is practical. At other times, however, when the space just isn’t available, flow conditioning can be the answer.

Flow conditioners and straighteners are frequently used to eliminate irregular liquid, steam and gas flow profiles. There are different types of conditioners and some of the more popular choices include honeycombs, vanes, screens and tube bundles. Focusing on the process media—liquid, slurries or gases—and the installation requirements will frequently narrow the list of choices for a particular application or problem.

Th 283106
McCrometer V-Cone Flow Meter
Click here to enlarge image

Some flow conditioning technologies will perform better in water, clean liquids or gases, as opposed to dirty liquids or slurries with irregular particulates that can cause clogging that requires increased maintenance. Head (pressure) loss is also potential concern, depending on the media, type of conditioner and installation requirements, which can reduce media throughput.

For this reason, a growing number of flow meter manufacturers are focusing on developing flow measurement technologies that offer built-in flow conditioning. This approach offers a number of advantages, including optimized measurement, reduced equipment complexity and lower total installed and operating costs.

One example is, the V-Cone® Flow Meter developed by McCrometer. The meter features a built-in flow conditioner that optimizes measurement accuracy in liquids, steam or gas while reducing the required pipe straight-run by up to 70 percent depending on the application and installation. The meter will be featured in the McCrometer booth at ACE ‘08.

The V-Cone measures flow over a wide range of Reynolds numbers under all kinds of plant environmental conditions and in a variety of clean and dirty fluids. It operates based on the same principle as other differential pressure type flow meters, using the theory of conservation of energy in fluid flow through a pipe.

With its unique design, the meter’s differential-pressure flow technology actually conditions fluid flow to provide a stable flow profile that increases measurement accuracy. The meter’s design features a centrally located cone inside a tube. The cone interacts with the fluid flow and reshapes the fluid’s velocity profile to create a region of lower pressure immediately downstream from itself.

The difference in pressure, which is exhibited between the static line pressure and the low pressure created downstream of the cone, can be measured via two pressure sensing taps. One tap is placed slightly upstream of the cone and the other is located in the downstream face of the cone itself. The pressure difference can then be incorporated into a derivation of the Bernoulli equation to determine the fluid flow rate.

Placing the cone centrally in the line optimizes the velocity of the liquid flow at the point of measurement. It forms very short vortices as the flow passes the cone. These short vortices create a low-amplitude, high-frequency signal for excellent signal stability. The result is a highly stable flow profile for measurement accuracy to +0.5% with +0.1% repeatability over a wide flow range of 10:1. All of this is accomplished with a minimal straight pipe run of only 0 to 3 diameters upstream and 0 to 1 diameters downstream from the cone.


In retrofit or upgrade projects for water/wastewater treatment facilities and other process plants, remember to consider the straight pipe run installation requirement for your flow meters--whether you are leaving them in place or upgrading them. Most flow meter technologies require a straight-run of pipe upstream and downstream from the point of measurement in order to assure a smooth media flow profile.

The addition of new pumps, elbows or valves placed too closely to flow meters may degrade their accuracy and repeatability. Flow conditioners which are built into some flow meters or available as a separate component are a potential solution,. Be sure to consider the properties of the liquid you are flowing before selecting a flow conditioner technology to avoid clogging and/or head (pressure) loss.

Placement of a flow meter with built-in flow conditioning downstream from a pump can be accomplished with a dramatically shorter straight pipe run, reducing installation complexity and costs.

About the Author: Jim Panek is a Senior Member of the Technical Staff at McCrometer. He joined the company in 1982 and has held a variety of positions within the company. He has more than 15 years experience in the water industry and flow instrumentation market.
