Electric valve actuator

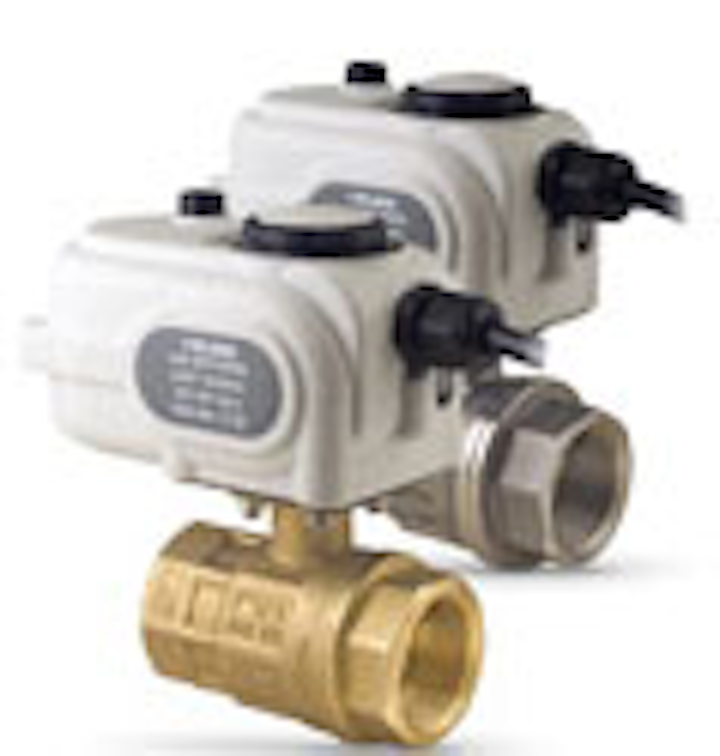

The new Valbia® VB008 "Mini" quarter-turn direct-mount electric actuator measures 4-3/4" long by 2-3/4" wide.

Content Dam Ww Print Articles 2016 08 1608wwshw P05

The new Valbia® VB008 “Mini” quarter-turn direct-mount electric actuator measures 4-3/4” long by 2-3/4” wide. Used with 1/4” to 1-1/4” full-port, direct-mount ball valves, it provides compact and reliable automatic flow control for a wide range of applications. VB008 mini-actuators feature an F-03/05 pattern ISO-5211 direct-mount flange and square shaft slot for easy direct mount installation. The standard 110 VAC motor with Class II insulation meets CE standards and delivers 71 in/lbs. of torque in horizontal or vertical installations. A manual override, heater/thermostat, and LED indicator light are standard.

Bonomi North America

www.bonominorthamerica.com
