Automated valves

The Series BEV9 is part of SVF Flow Control's family of Direct-Mount automated valves and is designed for superior performance in general purpose, plant-wide applications.

Nov 8th, 2013
Svf 1311ww

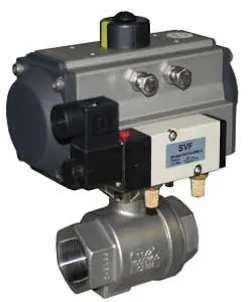

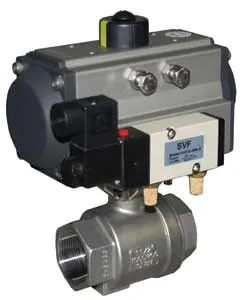

The Series BEV9 is part of SVF Flow Control's family of Direct-Mount automated valves and is designed for superior performance in general purpose, plant-wide applications. Available in valve sizes 1/2" to 2", the actuated package is designed and built for economic performance and is available with an SVF NEMA 4 Pilot Valve and a NEXUS-LS NEMA 4 Limit Switch. Features of the BEV9 include a 316 Stainless Steel body and ends (FNPT), ball and stem; full port flow path for maximum flow; live-loaded stem seal design; and blowout proof stem that adds safety and reliability. It is pressure rated for 1,000 WOG and is a fully-automated package available with aero2 actuators (Double Acting or Spring Return).

SVF Flow Controls Inc.
www.svf.net
