Diaphragm valves

Asahi/America's Type-14 diaphragm valves are available in sizes 1/2" through 2" with one-piece molded bodies of PVC, CPVC, PP, or PVDF.

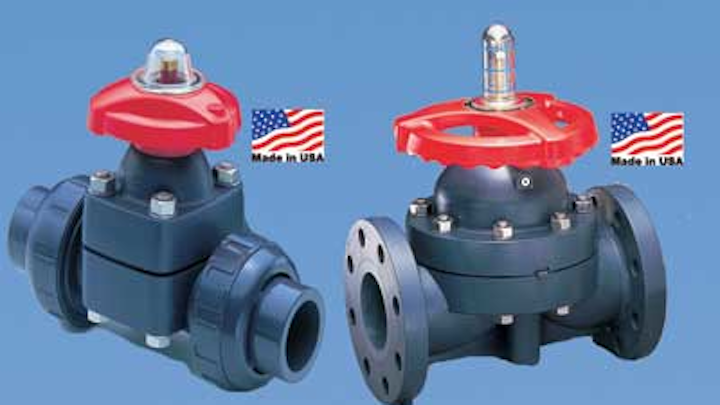

Asahi 1402ww
Asahi 1402ww

Asahi/America's Type-14 diaphragm valves are available in sizes 1/2" through 2" with one-piece molded bodies of PVC, CPVC, PP, or PVDF. Available diaphragm materials include EPDM, FKM or three-layer EPDM/PVDF/PTFE. Asahi also machines two integral parts of their valves in-house: the valve stem and sleeve. Asahi's Type-14 diaphragm valve features visual position indication, weir design for excellent throttling capabilities, and built-in travel stop to prevent over-tightening and eliminate compressive strain. For maximum corrosion resistance, the valve's rugged body and bonnet are manufactured of solid thermoplastic materials. Asahi Type-14 diaphragm valves can be electrically or pneumatically actuated.

Asahi/America Inc.
www.asahi-america.com
