Corrosion-resistant dosing valve

GF Piping Systems’ corrosion-resistant pneumatic diaphragm valve provides a new, long-lasting solution for not only highly corrosive dosing applications but also open/close applications.

Content Dam Ww En Articles Print Products 2017 December Corrosion Resistant Dosing Valve Leftcolumn Article Thumbnailimage File

1712wwprd P03

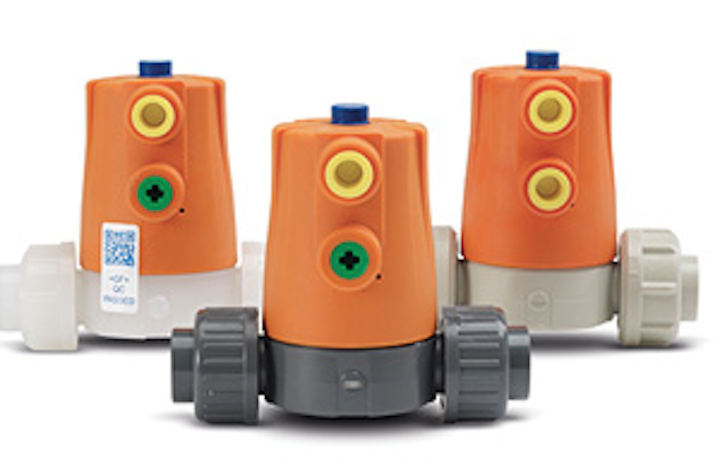

GF Piping Systems’ corrosion-resistant pneumatic diaphragm valve provides a new, long-lasting solution for not only highly corrosive dosing applications but also open/close applications. The Type 604/605 Pneumatically Actuated Dosing Valve is designed and tested to surpass two million life cycles. The 1/2” (d20) size 604/605 Valve is available in body materials PVC, CPVC, PROGEF Standard PP, and SYGEF Standard PVDF with a wide variety of end connections and custom assemblies. The valve is pressure rated at 90 psi unidirectional with operating temperatures ranging from -4°F to +284°F, depending on body material.

GF Piping Systems

www.gfps.com
