PRODUCT SHOWCASE

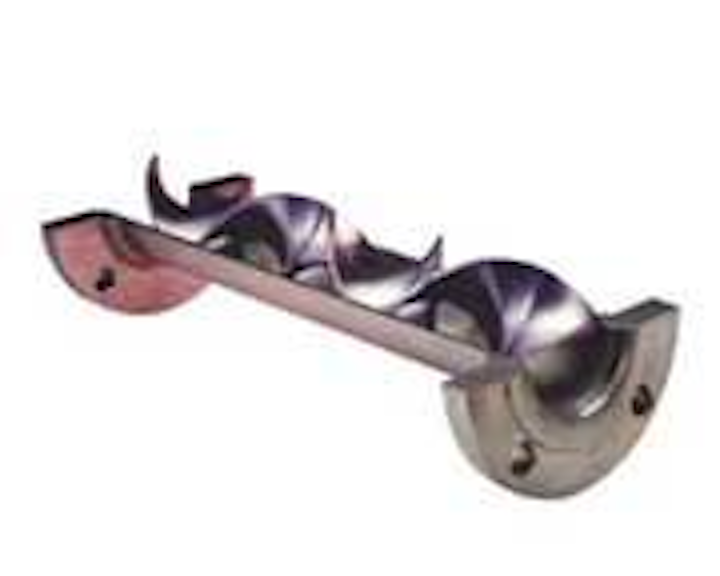

Kenics® KM Series Static Mixers from Chemineer feature a patented helical mixing element which produces complete radial mixing and flow division for any combination of liquids, gases or solids.

Th 147909

Mixers

Th 147909
Click here to enlarge image

Kenics® KM Series Static Mixers from Chemineer feature a patented helical mixing element which produces complete radial mixing and flow division for any combination of liquids, gases or solids. The smooth element geometry results in efficient mixing of miscible fluids in laminar or turbulent flow and dispersion of immiscible fluids or gases while producing very low pressure drop. The mixers have no moving parts and require no external power or regular maintenance. Four distinct styles are offered: fixed-element, removable-element, edge-sealed element, and element-assembly.
Chemineer, Inc.
Dayton, OH
Tel: 937-454-3200
Web: www.chemineer.com

Inlet stabilizer

Th 147908
Click here to enlarge image

The patented "J' Model Inlet Stabilizer from Blacoh is designed specifically for the inlet side of all pumps and improves inlet flow conditions, insuring adequate flow into the pump and extending the service life of all inlet system components. The inlet stabilizer features a unique control unit designed so that either a positive pressure charge or a vacuum can be set in the stabilizer. This compensates for any pump inlet system whether the pump is operating under suction lift or positive inlet conditions.
Blacoh Fluid Control
Riverside, CA
Tel: 800-603-7867
Web: www.blacoh.com

Shutoff valves

Th 147926
Click here to enlarge image

Circle Seal Controls offers a line of shutoff valves for the petrochemical, chemical, specialty gas, cryogenic, analytical instrumentation, and alternative fuels markets. Its shutoff valves are designed and manufactured to meet the requirements of gas and liquid applications ranging from -452°F to +700°F and up to 12000 psi. General-purpose shutoff valves are available with Dyna-Pak™ packing, blow-out-proof stems and stem threads above the packing. Severe service shutoff valves are available with additional safety and performance features such as locked bonnets, non-rotating stem tips, and high temperature packing materials.
Circle Seal Controls Inc.
Corona, CA
Tel: 909-270-6200
Web: www.circle-seal.com

Sodium analyzer

Th 147920
Click here to enlarge image

Hach Company's 9073 Sodium Analyzer monitors sodium, a key indicator of condenser leakage in boiler water applications. The analyzer can detect down to 20 parts per trillion (ppt). It features automatic microprocessor-controlled temperature compensation and automatic one- or two-point calibrations by standard addition. The automated instrument calibrations make the analyzer low maintenance. In addition, the frequent automated calibrations greatly reduce the need for etching. The analyzer's pH sample conditioning system adjusts for acidic sample conditions by automatically adjusting the pH level to greater than 10.
Hach Co.
Loveland, CO
Tel: 800-227-4224
Web: www.hach.com

Plug valves

Th 147921
Click here to enlarge image

R&M Energy Systems, a unit of Robbins & Myers, offers Resun® Cylindrical Plug Valves for flow control under a wide range of service conditions. Manufactured from cast iron, carbon steel, bronze, stainless steel, or custom alloy materials, the valves are available in sizes from 1/2" to 30". The cylindrical plugs are machined to exacting tolerances, and provide a consistent, bubble-tight seal. Compared to tapered plugs, their full-round port design provides a greater flow path and will not bind under high pressure.
R&M Energy Systems
Houston, TX
Tel: 281-765-4700
Web: www.rmenergy.com

Metering pump

Th 147923
Click here to enlarge image

G.H. Stenner has introduced the SVP Series, a new variable speed peristaltic metering pump with optional 4-20 mA input for automatic control. Capable of 1.66 gph at 100 PSI and 3.5 gph at 25 PSI, the pumps are designed to respond directly to a 4-20 mA input signal from water treatment controls including pH and ORP monitors to maintain proper water chemistry and treatment of effluent discharge water. The SVP features a 4-button keypad for manual adjustment and an LED display. Control adjustment ranges from 5-100% in 1% increments. The pumps are self-priming up to 25 feet.
G.H. Stenner & Co., Inc.
Jacksonville, FL
Tel: 904-641-1666
Web: www.stenner.com

Restraining glands

Th 147915
Click here to enlarge image

Sigma Corp. has incorporated a special feature for its wedge-action restraining glands. The Sigma One-Lok Model SLD, used to restrain ductile iron pipe to a mechanical joint outlet, uses different contoured wedge segments for each specific pipe O.D. for the entire range of 3" through 48" nominal assemblies. The One-Lok Model SLC, wedge-action restraint for PVC pressure pipe to a mechanical outlet, also offers different individually contoured wedge inserts for each PVC pipe O.D. to handle 4" through 24" PVC installations.
Sigma Corp.
Cream Ridge, NJ
Tel: 800-999-2550
Web: www.sigmaco.com

Chlorine dioxide generators

Th 147916
Click here to enlarge image

PureLine offers the PureStrip™ line of chlorine dioxide generators for water disinfection. The model P-40E uses 25% sodium chlorite as a single precursor to produce 99.5% pure chlorine dioxide gas on site and on demand. It generates 0.1 to 40 pounds of chlorine dioxide gas per day, and often as much as 45 to 50 pounds per day. The chlorine dioxide gas is educted into the process stream via a vacuum to ensure no chlorine, bromate, perchlorate, chlorite or chlorate is injected into the water to be treated. The system features a recirculating anolyte loop, long-life electrolytic cells, an automated programmable logic controller with a color touch-screen operator interface terminal, and integrated DCS capability.
PureLine Treatment Systems
Lake Forest, CA
Tel: 800-383-6873
Web: www.pureline.com
