Asahi/America announces the next generation Omni® ball valve: the Omni Type-27.

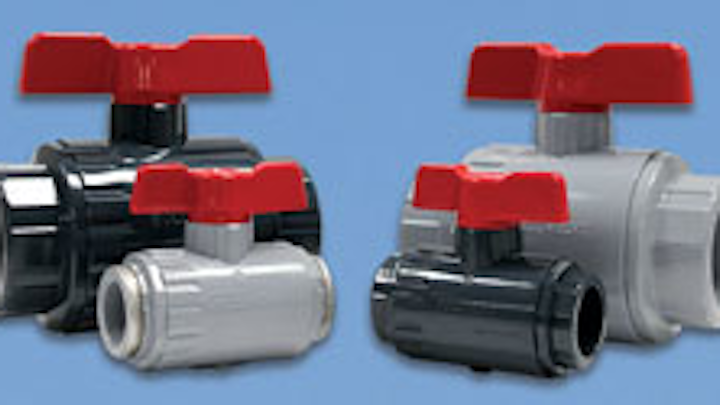

Asahi/America announces the next generation Omni® ball valve: the Omni Type-27. The compact ball valve’s new design includes updated performance features and improved actuation capabilities. A new smooth ergonomic handle with open/shut indication tops the Omni Type-27. The rugged, injection-molded, one-piece body includes a single-threaded and sealed end carrier; double stem O-ring seals provide added leak protection. A molded ISO top flange for actuation mounting can be factory-added to the Omni Type-27. Available with socket or threaded end connections in 3/8” through 2”. Materials: PVC and CPVC, both with EPDM seals and PTFE seats. NSF-61 certified and rated 150 psi at 70°F.
