Products and Service Feature: Pumps, Pipe Tools, and Supplies

Oct. 1, 2000
Product feature

Peristaltic hose pumps

Click here to enlarge image

A line of seal-less, low maintenance, peristaltic hose pumps from Watson Marlow Bredel features flow rates ranging from 0.01 to 250 gpm. These pumps are ideal for metering and transferring applications. They can handle corrosive chemicals and other tough materials including belt filter press and centrifuge feed, scum, transferring thickened and digested sludge, return-activated sludge, and lime or carbon slurries. The hose is the only wearing part of these pumps, which are available in nine models with a range of 1/2 in. to 4-in. ID hose sizes that withstand pressures up to 220 psig.
Watson Marlow Bredel
Boston, MA
Tel: 800-282-8823
Web:www.watson-marlow.com

Thermoplastic pumps

Click here to enlarge image

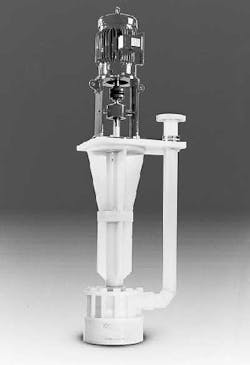

Vanton offers a wide variety of pumps. Its cantilever vertical thermoplastic pumps are designed specifically to provide safe operation under extensive dry running conditions or in service where immersed bearings cannot be tolerated. Its recessed impeller, vertical thermoplastic centrifugal pump designs handle solids and stringy materials that reduce flow or clog conventional pumps. The high performance pump design, ideally suited for wastewater treatment facilities, features centerline discharge casings which provide for increased flows, lower power requirements and substantial reduction in initial pump costs.
Vanton Pump & Equip. Corp.
Hillside, NJ
Tel: 908-688-4216
Fax: 908-686-9314
Web:www.vanton.com

Process pump equipment

Flowserve announced the formation of its Pump Division, created as part of the acquisition of the Ingersoll Dresser Pump (IDP) Company. IDP employees will join with those from Flowserve's former Rotating Equipment Division. The company produces engineered process pumps, precision mechanical seals, automated and manual quarter-turn valves and valve actuators.
Flowserve Corp.
Irving, TX
Tel: 972-443-6500
Fax: 972-443-6800

Power end program

Sterling Fluid Systems has enhanced its Peerless Power End Program. The program replaces the existing power end on pumps with either a new or factory rebuilt unit at a fraction of the cost of a conventional rebuild. Users obtain a power end that is typically 20% to 30% less expensive than rebuilding and far less than a replacement. Installation often takes less than half an hour. They are available as a direct replacement or part of the Peerless Exchange program.
Sterling Fluid Systems (USA), Inc.
Indianapolis, IN
Tel: 317-925-9661
Fax: 317-924-7202
Web:www.sterlingfluidsystems.com

Vacuum pumps

Click here to enlarge image

A new line of compact, Multi-Stage Liquid Ring Vacuum Pumps from Tuthill Vacuum Systems features its patented Fluid-VacRegistered axial flow technology. The Kinney KLRT Series is designed for efficient, vibration-free operation with capacities from 10 to 92 cfm at 27 in. Hg vacuum. The C-Face motors close-coupled to the pump head eliminates the need for an inter-stage manifold and creates a very compact design. The axial flow of the inlet gas allows for safe starting even if the pump is flooded, making it ideal for wet vacuum applications.
Tuthill Vacuum Systems
Canton, MA
Tel: 781-828-9500
Fax: 781-828-5612
Web:www.kinneyvacuum.com

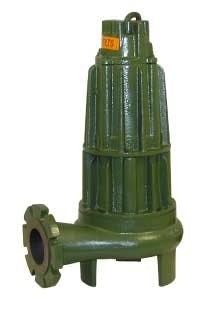

Cool run pumps

Click here to enlarge image

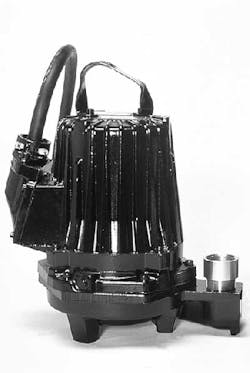

Zoeller Engineered Products has expanded its offering of submersible heavy-duty pumps with a new line that features a "Cool Run" design. It is constructed of finned class 30 cast iron with powdered coated corrosion protection. These thick castings, with oil-filled motor housing and Class F insulated winding, offer superior heat dissipation and lubrication. Other features include a tandem mechanical seal, sizes from 1 to 10 hp and both non-clog and grinder configurations.
Zoeller Engineered Products
Louisville, KY
Tel: 800-928-7867
Fax: 502-774-3624
Web:www.zoeller.com

Self-priming pumps

The Gorman-Rupp Company has introduced the Super T-Series™ of self-priming centrifugal pumps. Based on the respected T series solids-handling trash pumps, the new Super T series is designed to double impeller and wearplate life. The external adjustment of the shimless wearplate is as simple as a turn of the hand, with no need to realign belts, couplings and other drive components. Easy maintenance of the clearance between the impeller and wearplate decreases downtime and keeps the pump operating at maximum efficiency.
The Gorman-Rupp Co.
Mansfield, OH
Web:www.gormanrupp.com

Slurry gate option

Thompson Pump has introduced a new slurry gate system as an option for its 4- and 6-in. hydraulic submersible pumps. The system agitates and transfers slurries efficiently with a single pump. A modular design means the system connects or removes from the pump and power unit in minutes. The system achieves optimum agitation at point of entry to the pump. It features a heavy-duty steel connection and stainless steel submersible cylinder. The unit design handles large solids, and a large screen around the gate provides added safety.
Thompson Pump & Manufacturing Company
Port Orange, FL
Tel: 904-767-7310
Web:www.thompsonpumps.com

Immersible motor

Cornell Pumps "FCS" is an immersible motor. A cutting edge concept developed to replace the outdated "Dry-Pit Submersibles," its basic design is a premium efficiency, inverter duty, P-base or C-face, TEFC motor. This allows for frame mounting as well as close coupled. A "Navy"-style conduit box prevents water leakage up to 30 ft. of submergence for a two-week period. Tandem lip seals, a dished end bell and expeller are used to seal the bottom portion of the motors in the event of a flood. Class F or class H insulation protects against excessive internal heat. The top of the motor is sealed with mating fittings using O-rings and vulcanizing compound to prevent leakage. The motor shaft does not protrude through the top plate to drive the fan. A blower motor of Wash-Thru design drives the external fan that cools the motor in a dry state. Float switches turn the blower on and off as flood waters rise and recede.
Cornell Pump Company
Portland, OR
Tel: 503-653-0330

Pump controller

Blue Ribbon is following up the success of its patented Birdcage sewage level sensor with the simple, one purpose Bulldog two Pump Controller. The controller has only six settings: on/off for both pumps and two emergency alarms. The front panel's two LED displays continuously show the present level and the set point level. Additional features are custom defaulted for each customer's needs and kept in a password protected secondary menu, which normally the operator will never need. The Birdcage, with its protected submersible pressure transducer, provides a 4-20mA signal proportional to the sewage level. Blue Ribbon Industrial Components Corp.
Winter Park, FL
Tel: 407-677-8899
Web: www.bulldog.com & www.birdcage.net

Drill pipe

Ditch Witch® underground construction equipment has a drill pipe that is designed to be the most durable, dependable and cost-effective for horizontal directional drilling applications. Power Pipe™ is manufactured by an exclusive process, using tubing made of a high-strength alloy with excellent flexibility characteristics while being sufficiently rigid to maintain thrust during changes in direction. The pin and box are made from a different extra tough alloy pressed into and welded to the expanded ends of the tubing. Available for specific Jet Trac® directional drilling systems, Power Pipe carries the Ditch Witch warranty not to break at a weld for one year.
Ditch Witch
Perry, OK
Tel: 800-654-6481
Fax: 580-336-5823
Web:www.ditchwitch.com

Thermoplastic pipe and fittings

IPEX Inc. recently acquired Elson Thermoplastics, Charlotte, N.C. The company offers both vinyl pipe and fittings. Eslon will form part of IPEX Industrial Inc., Glynwed's North American pipe systems company. In addition to outstanding chemical resistance to nearly all acids, alkalis, salts, halogens and many other corrosive materials, Eslon thermoplastic pipe and fittings offer other important advantages.
IPEX Inc.50 Valleybrook Drive, Don Mills, Ontario M3B 2S9
Tel: (416) 445-3400
Fax: (416) 445-4461

Pipe and fittings

Specified Fittings is a fabricator and molder of PVC sewer, water, and other fittings. It has announced the purchase of Infutech, which provides HDPE and PVC butt fusion welding technology. This acquisition brings 1 in. through 64 in. HDPE and PVC capabilities to the company.
Specified Fittings
Bellingham, WA
Tel: 888-734-8846
Fax: 888-734-8258
Web:www.specfit.com

Pipe flushing

The #77 MainGuard Blow-Off from Kupferle Foundry makes flushing quick and easy. Standard features include a 2-1/2 in. NST nozzle, a padlock provision, and freeze-protection. It is available in any depth of bury, and is serviceable without digging. Underground models also are available.
Kupferle Foundry Company
St. Louis, MO
Tel: 800-231-3990
Fax: 314-231-2820
Web:www.hydrants.com

Insertable valve

Hydra-Stop offers the Insta-Valve, an easy-to-install insertable valve for pipeline maintenance work. Water distribution systems can insert valves quickly and easily wherever they are needed. The valve requires only one cut, no reaming, no complicated planning, no excessive pipe strength loss, and no annoying and dangerous service disruptions. They come in sizes from 4 to 12 in. and work with existing Hydra-Stop equipment or as a stand-alone system.
Hydra-Stop, Pitometer Pipeline Services
Alsip, IL
Tel: 800-538-7867
Fax: 708-389-5125
Web:www.Hydra-Stop.com

Cleanout tools

Click here to enlarge image

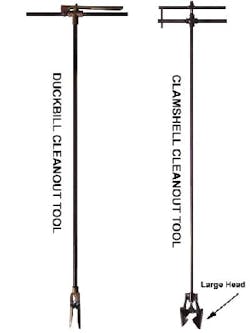

Two cleanout tools from Kravitch Machine are designed to remove stones, dirt and debris from curb and valve boxes. The Clamshell Cleanout is available with a small 3-in. head and a large 5-in. head. A Duckbill Cleanout also is available. The company's product line includes valve keys, gate valve extensions, cleanout tools, leak detectors, probe rods, digging bars, hydrant and valve replacement parts and more.
Kravitch Machine Co.
Pittsburgh, PA
Tel: 800-437-5801
Fax: 412-882-6262

Corrosion resistant lining

Click here to enlarge image

A technological breakthrough in cementitious material is designed specifically for the municipal wastewater industry to provide structural, abrasion and corrosion-resistant lining. SewperCoat from Lafarge Calcium Aluminates protects against biogenic corrosion relative to hydrogen sulfide found in wastewater environments. The mineralogy of the material is key to its performance. It is a premix product where both the cement and aggregate are pure fused calcium aluminate. It is suitable for rehabilitating manholes, wet wells, lift stations, pipe networks, and treatment plant structure as well as lining new ductile iron and concrete pipes.
Lafarge Calcium Aluminates
Chesepeake, VA
Tel: 800-524-8463
Fax: 757-543-1002
Web:www.lcainc.com

Bypass pipe plugs

Click here to enlarge image

Multi-size domeheads and flow-through pipe plugs from Lansas incorporate blended natural rubber compounds as well as multiple layers of tire cord reinforcement. The design allows for the largest wide-range multi-size plugs available. The flow-through plugs are stock, with bypass sizes to 8 in. NPT. Threaded connections to 12 in. NPT and large flange connections are available. The Super-flow plugs come equipped with bypasses to within one pipe diameter of the existing pipe. For example, a 24-in. plug comes with a 21 in. opening. The company also offers high-pressure plugs, joint testers, air testing and manhole vacuum testing equipment as well as custom products.
Lansas Mfg. By Vanderlans & Sons, Inc.
Lodi, CA
Tel: 800-452-4902
Fax: 209-339-8260
Web:www.lansas.com

Pipe cutters

Click here to enlarge image

Mars "Super Tuff" brand Pipe Cutters come in two sizes, 1 1/2 in. and 2 in., for cutting plastic pipe and tubing. The company designed its cutters for smooth, one hand ratchet action cutting. The 2-in. size is available with long or short handles. The long handle shears are designed for added leverage to cut thick wall pipe. These lightweight tools cut quickly and cleanly. Blades can be sharpened or replaced and will cut most kinds of plastic pipe and tubing.
Mars Company
Ocala, FL
Tel: 800-782-5268
Fax: 352-694-7397
Web:www.marswater.com

Sealed flow system

A-Lok Products offers a comprehensive rehabilitation system for correcting problems associated with sanitary structures. The company's Sealed Flow System isolates the flow channel, stopping hydrogen sulfide corrosion of the structure, ground water infiltration and inflow from adjustment areas or castings protecting the interceptor system. The system also works as a temporary or permanent by-pass, and can be used to eliminate improper flow characteristics and to provide a means of installing check valves. A multi-purpose vent also is available for draining infiltration or for ventilation to allow structure entry.
A-LOK Products Inc.
Tullytown, PA
Tel: 215-547-3366
Fax: 215-547-5260
Web:www.a-lok.com

Security products

Click here to enlarge image

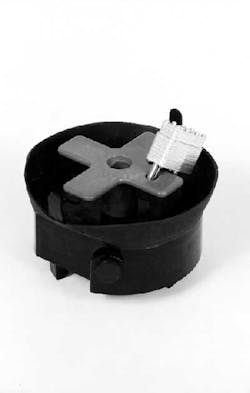

The Intimidator line of water security products use a unique locking pattern technology and easily install in the field with no modifications to existing equipment. Each lock installs and removes with its matching key tool. The computer designed extra-narrow groove patterns can be adapted to an unlimited range of applications. Key registration and computerized tracking of key codes assures that no unauthorized keys will be distributed. Products include the Hydrant-Lock, the Man-Lock for manholes, the Valve Box-Lock, the Plug-Lock, the Coupling-Lock and the Water Meter-Lock and more.
McGard Special Products
Orchard Park, NY
Tel: 800-669-6887
Fax: 716-662-8985
Web:www.mcgard.com

Joint coupling system

Click here to enlarge image

The new Quick Stab™ joint coupling system from Contech® Construction Products speeds installation of corrugated metal pipe. The system creates a bell and spigot joining system with the bell only 3/4 in. larger than the pipe. At the factory the sleeve is attached to the pipe, then shipped to the job site ready for installation. The only field operation is placing a special fluted gasket onto the spigot end of each piece of pipe, applying lubricant and pushing it into the bell end of the preceding pipe. There is no need for bands, bolts and wrenches and pipe segments are joined quickly and easily. It provides the same soil tightness as Contech's Hugger® joint.
Contech Construction Products Inc.
Middletown, OH
Tel: 513-746-4700

Pipe fittings and supplies

SIGMA Corporation has expanded its line of pipe fittings and restraints to include several accessory products. Hardware items now available are Duc-Lugs, Socket Clamps, Eye Bolts, 3/4-in. all-thread rod and pre-packed gasket & bolt assemblies for flanged fittings from three to 48 inches. Sizes three to 12-in. are available from stock. The company also recently introduced a joint lubrication compound and a hydraulic cement.
Sigma Corporation
700 Goldman Dr.
Cream Ridge, NJ 08514
Tel: (800) 999-2550
Fax: (609) 758-1158

Pipe seals

Click here to enlarge image

The contamination seal for pipes from Charna-Cap™ prevents the contamination of the interior of water mains and appurtenances. It reduces the frequency of sanitary testing, decreases installation costs and saves water. The caps easily insert into bell or spigot ends of pipes stacked and on or in the ground. No part of the cap extends past the outside of the pipe. The lightweight and recyclable caps are available for ductile and cast iron, PVC and PE, steel, concrete, custom shapes, valves, elbows and Ts. Any size is available and the company offers quotes for yearly and seasonal programs.
Charna Corporation
New York, NY
Tel: 877-759-3624
Fax: 212-759-3492

Pig tracker

Click here to enlarge image

Pipeline Inspection Company's Spy® Pig Tracker is an electronic locating system that tracks the passage and pinpoints the location of pipeline pigs. The system uses strong, low frequency signals with a long signal life. The system consists of a cylindrical transmitter that travels with the pig, and a hand-held pickup wand and receiver unit that informs the operator of the pig's location.
Pipeline Inspection Company, Ltd.
Houston, TX
Tel: 713-681-5837
Fax: 713-681-4838
Web:www.picltd.com

Trenchless joint repair

Click here to enlarge image

Miller Pipeline offers Weko-Seal®, a trenchless system for internally renewing leaking joints in any pipe from 16 inches diameter up through 216 inches diameter and larger. These seals are flexible EPDM rubber leak clamps that ensure a bottle-tight seal around the full inside circumference of the pipe joint area. Installed internally with up to 5000 feet between access points, the seals can be used in reinforced concrete, cast iron, ductile iron steel, cement lined or unlined pipes.
Miller Pipeline Corp.
Indianapolis, IN
Tel: 317-293-0278
Fax: 317-293-8502
Web:www.millerpipeline.com

Rubber pipe

Click here to enlarge image

Redflex® Rubber Pipe, offered by Red Valve, is an abrasion-resistant replacement for steel and cast iron pipe. It controls vibration from pumps, compressors and other equipment. The sturdy, resilient design offers noise and odor control, making it useful in municipal applications where daily operations can cause disturbances in residential areas. The pipe can be installed either in straight lengths or in applications requiring a specified radius. The all-elastomer construction is suitable for handling all densities of abrasive slurries. It can accommodate pressures to 150 psi and temperatures to 180 degrees F.
Red Valve Company, Inc.
Carnegie, PA
Tel: 412-279-0044
Fax: 412-279-7878
Web:www.redvalve.com

Inspection system

Click here to enlarge image

Radiodetection's Mark2 GatorCam provides new features in addition to its already proven ease-of-use and reliability. The inspection system includes a lighting dimmer control, color camera, picture invert button, a microphone for voice-overs, an on-screen counter, continuous time and date display, an on-screen tilter, and a built-in transmitter to make location work easy. It is a comprehensive and flexible package designed to be user-friendly.
Radiodetection Corp.
Mahwah, NJ
Tel: 800-524-1739
Fax: 201-848-1303
Web:www.radiodetection.com

Pipe welding vises

Reed Pipe Welding Vises offer positive alignment for the most common pipe welding needs. Machined surfaces ensure correct meeting of straight pipe with the PWV461R, and straight pipe-to-elbow with the PWV463R. Screws and chains allow firm clamping. The PWV461R holds 1/2 in. to 8 in. pipe, while the PWV463R holds 2 in. to 8 in. pipe.
Reed Manufacturing Company
Erie, PA
Tel: 800-666-3691
Fax: 800-456-1697
Web:www.reedmfgco.com

Copper crimping tool

Click here to enlarge image

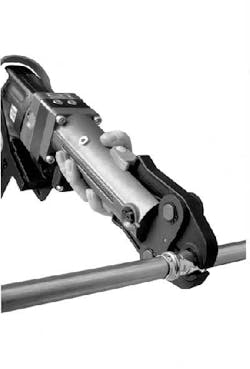

Ridge Tool Company has introduced its ProPress System™ for copper crimping. The tool is a press connection system that crimps copper tubes in seconds. It is designed as a replacement for the traditional sweat method of connecting copper tube. It consists of an electro-hydraulic tool with interchangeable jaws that crimp 1/2 to 2-in. fittings, and a full line of more than 250 specially designed copper fittings. The system joins copper tube by crimping the fitting around the tube to form a watertight connection.
Ridge Tool Company
Elyria, OH
Tel: 800-769-7743
Web:www.ridgid.com

Remote inspection cameras

The new P455 TwinView Digital Color Camera offers a dual view sensor, forward view auto-upright picture, and 1 lux capability. Other features include remote control for side rotate view, built-in forward and side-view LED light heads, and clock/counter clockwise side-view rotation. The camera comes in a stainless steel housing with gold rhodium slip rings and pogo contact, and is waterproof to 11 bar. The system is ideal for surveys in pipes 3in. to 18in. in diameter. It can negotiate 90

Sheet lining system

Click here to enlarge image

Ameron International has introduced Arrow-Lock, a PVC sheet lining system developed for rehabilitating corroded concrete, clay and steel structures. The lining system is made from high-polymer PVC resins to form an extremely dense, impervious liner. Its arrow-shaped ribs mechanically lock it to the structure substrates with the aid of two-part epoxy mastic. The lining can help extend the usable life of a structure for up to 50 years.
Ameron International, PLP
P.O. Box 1629
Brea, CA 92822-1629
Tel: 714-256-7755
Fax: 714-256-7750

Service saddles

Click here to enlarge image

The Model 3815 and 3816 Single Strap Service Saddles from A.Y. McDonald are designed for use on service line connections to ductile iron, asbestos-cement or cast iron water mains. Their pressure capabilities equal, but do not exceed, the working pressure rating of the pipe, up to 200 PSIG. Materials of construction include the body of 85-5-5-5 cast brass per ASTM B62, the strap of silicon bronze, and the nuts with enlarged washer bearing surface of 85-5-5-5 cast brass per ASTM B62. Sizes available include main sizes: 4", 6", 8", 10" and 12", and tap sizes: 3/4" and 1" AWWA or NPT on 4", 6", 8", 10", and 12" saddles. Other tap sizes can be ordered. All saddles meet AWWA standards and have pipe O.D. size identification.
A.Y. McDonald Mfg. Co.
Dubuque, IA
Tel: 800-292-2737
Fax: 800-832-9296
Web:www.aymcdonald.com

M.O.P pipe

Ultra-Blue Class 150 PVC Molecular Oriented Pressure Pipe with a cast iron O. D. meets AWWA C909-98. The pipe attains a high strength by re-orienting the molecular structure in the hoop direction. Ultra-Blue is lighter and tougher than conventional PVC, leading to lower installation costs. The non-corrosive pipe has a larger inside diameter than ductile iron or conventional PVC, providing greater flow capacity and lower head loss. One of the safest and easiest pipes to tap, it will not split from end to end. With more than 20 million feet in the ground, the pipe is suitable for many applications including potable water systems, sewer force mains, and water transmission and distribution lines.
Uponor ETI Company
Denver, CO
Tel: 303-893-1101
Fax: 303-893-4140
Web:www.uponoreti.com

Debris caps

Click here to enlarge image

SW Services offers its new adjustable Debris Caps, which are designed to assure ready access to valve operating nuts. The caps prevent debris from getting into valve boxes. Installing a Debris Cap allows for lockout of pipe and valve boxes from the inside, the only OSHA approved lockout of its kind. The caps are designed to hold locator coils and identification disks. They displays a color coded ID at the street level and fit all pipe diameters from 2.5 to 12 in.
SW Services
Phoenix, AZ
Tel: 800-462-2773
Fax: 623-582-8095
Web:www.debriscaps.com

Expansion joints

Click here to enlarge image

Proco Products has announced the newest addition to its expansion joint line, the Series 6501/K. The connector is designed for tough and demanding applications. The Style 6501/SK, with its FDA approved silicone liner, is available for sanitary applications. It offers clean-in-place capability, and is a suitable replacement for expensive, exotic metal-alloy expansion joints.
Proco Products Inc.
Stockton, CA
Tel: 800-344-3246
Fax: 209-943-0242
Web:www.procoproducts.com

Sliplining

Click here to enlarge image

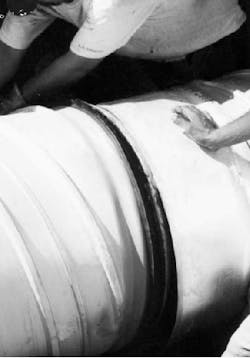

Hobas Pipe is especially suited for use in sliplining applications. The centrifugally cast, fiberglass reinforced, polymer mortar pipe is manufactured in diameters from 12 to 102 inches in pressure and non-pressure classes. The Hobas Pipe bell-spigot, push-together, gasket-sealed joints simplify sliplining installation. This high-strength pipe has a very thin wall compared to concrete, assuring full flow recovery. Its smooth outer surface minimizes push loads. Because of its inherent corrosion resistance, Hobas Pipe applications include sewers and force mains, industrial effluents, contaminated drainage, foul air and other corrosive environments.
Hobas Pipe USA, Inc.
Houston, Texas
Tel: 281-821-2200
Fax: 281-821-7715

Pipe and cable locator

Click here to enlarge image

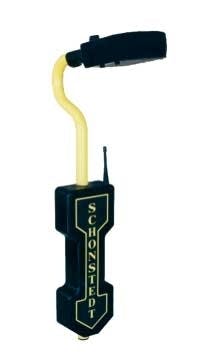

The new TraceMaster™ from Schonstedt Instrument Co. was designed for those who use locating equipment on a daily basis and do not want extras like fancy dials and buttons. The shape makes it easy to use, easy to carry and the design allows for quick locating and depth navigation of underground pipes and cables. It uses advanced DSP technology and RF Link, and allows remote control monitoring and switching of the transmitter from the receiver.
Schonstedt Instrument Company
Kearneysville, WV
Tel: 888-328-7223
Fax: 304-725-1095
Web:www.schonstedt.com

Inflow analysis

Click here to enlarge image

Superior Signal Company offers its new 30-L smoke blower for inflow analysis of collection systems. Using a 5.0 horsepower Briggs & Stratton engine, this new blower with its low profile design delivers a powerful 4,300-cfm. The base and blower housing are constructed of cast aluminum for ultra-durability, and it's 10 blade fan offers greater output than competitive models. The blower design optimizes dry smoke output. Performance enhancing features include a precision fluid injection orifice designed to minimize the chances of "overloading" the heating chamber. In addition, the insulated heating chamber retains heat and maximizes smoke production.
Superior Signal Company, Inc.
P.O. Box 96
Spotswood, NJ 08884
Tel: 732-251-0800
Fax: 732-251-9442
Web:www.superiorsignal.com

Ratcheting wrench

Wachs has introduced the "Turn-N-Count," a versatile lightweight ratcheting "T" wrench designed for utility valves and fire hydrants of all types and sizes. Similar to a conventional "T" handle in appearance only, the wrench has combined a ratcheting mechanism and a digital counter into its ergonomic design. The ratchet significantly reduces back strain while the counter tracks the turns, allowing the operator to concentrate on safety. Also included is a lightweight telescoping key that allows the operator to set the height for safe and comfortable operation.
E.H. Wachs Company
Wheeling, IL
Tel: 847-537-8800
Fax: 847-520-1168
Web:www.wachsco.com

Direct read cable

Click here to enlarge image

The Levelogger is a datalogger, pressure transducer, and battery, self-contained in one 7/8in. diameter probe, with optional temperature and conductivity sensors. It is designed for long term stability and long battery life. The factory sealed design eliminates the need for expensive electrical cable, although a direct read cable is available. The infra-red optical reader attaches to a desktop or field computer, to program and download information from the dataloggers. Software allows the units to be programmed with relevant project data. Recording intervals are from 0.5 second to 99 hours, or logarithmic, or event based, with a direct start or a future start time. The datalogger is compact and lightweight.
Solinst Canada Ltd.
Georgetown, ON Canada
Tel: 800-661-2023
Fax: 800-516-9081
Web:www.solinst.com

Sludge level monitor

Click here to enlarge image

Hach Company has introduced the new OptiQuant™ Sludge Level Monitor that enables plant operators to optimize the extraction of recirculated sludge. It also helps compensate for normal fluctuations, correct for extreme conditions such as sludge discharge and poor sedimentation, and provide early warning of overload in the final sedimentation stage. The probe installs 3/4 in. below the water surface and emits ultrasonic pulses. Height and depth measurement of the sludge blanket are based on the time necessary for an ultrasonic echo to return to the probe. An automatic wiper improves accuracy by eliminating gas bubbles or floating sludge.
Hach Company
Loveland, CO
Tel: 800-227-4224
Fax: 970-669-2932
Web:www.hach.com

Improved check valve

Click here to enlarge image

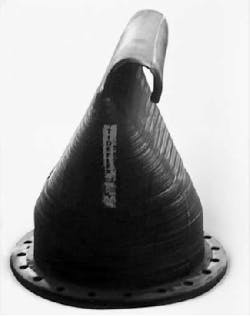

The new Curved Bill Tideflex® Check Valve from Red Valve is designed to enhance sealing, especially in low-lying areas with little backpressure. The valve is constructed entirely of rubber, making it virtually immune to rust, corrosion and weathering. The curved bill offers increased flexibility to better seal around entrapped debris, and the headloss of the valve remains exceptionally low. Sizes are available from 8 to 96 in.
Red Valve Company, Inc.
Carnegie, PA
Tel: 412-279-0044
Fax: 412-279-7878
Web:www.redvalve.com

Spray penetrant

Click here to enlarge image

Sprayon® 711®, The Protector® lubricant, has a fast-acting creep factor to penetrate the most microscopic irregularities and quickly loosen and lubricate frozen parts. Its lubricants and corrosion inhibitors leave a protective barrier that displaces moisture and protects metal surfaces from corrosive elements. The all-purpose lube is appropriate for conveyors, bearings, linkages, nuts, bolts, operating controls, machinery and other metal surfaces. It releases corroded, frozen parts and neutralizes fingerprint acids while providing maximum moisture displacement. The lubricant leaves an ultra-thin, greaseless, protective coating that does not need to be removed prior to surface treating, painting, joining or other processes. The non-flammable formula is safe for use on plastics.
Sherwin-Williams Consumer Group Industrial Sales
Coumbus, OH
Tel: 800-925-3434
Fax: 614-29402956

Thermal mass flowmeters

Click here to enlarge image

Kurz "Smart" Mass Flowmeters include Single-Point Insertion Mass Flow Elements, In-Line Mass Flow Elements, and Multi-Point Insertion Mass Flow Elements for use with air, industrial gases, flue gases and ultra-high purity process gases for a wide variety of applications. All Mass Flow Elements and Flow Control Valves are used with the Series 155 ADAM family of "Smart" Mass Flow Computers. Kurz designs its flowmeters for excellence in response time, accuracy, repeatability, flow turn-down capability, value, quality and demonstrated reliability. Other products include Portable Air Velocity Meters and Air Sampling Systems. The units are Y2K and CE compliant and carry explosion-proof and non-incendive safety approvals.
Kurz Instruments Inc.
Monterey, CA
Tel: 800-424-7356
Fax: 831-646-8901
Web:www.kurz-instruments.com

Presence/absence detectors

Click here to enlarge image

Princo Instruments offers High-Perform-X™ Null Kote™ detectors. They are designed for obstructionless presence/ absence detection of liquids and solids in all types of lines and piping. The Model L3515 is comprised of an electronics unit housed in a heavy-duty, cast aluminum, explosion-proof enclosure and integrally mounted sensor available in a variety of flange types. The unit employs Null-Kote™ circuitry making the sensor immune to adverse effects of material buildup.
Princo Instruments
Southampton, PA
Tel: 800-221-9237
Fax: 215-355-7766
Web:www.princoinstruments.com

Display station

Click here to enlarge image

GE Fanuc Automation's Display Station 2000™ Series now includes the new WTA Model, a panel-mounted industrial computer. It features a 10.4-in. active matrix resistive touch TFT color screen for superior contrast. The WTA Model comes bundled with Cimplicity® industrial automation software, combining the power of an operator interface with the robustness of an industrial computer running Windows® NT.
GE Fanuc Automation North America, Inc.
Charlottesville, VA
Tel: 800-648-2001
Fax: 610-437-5212
Web:www.gefanuc.com

Chromatograph

Click here to enlarge image

Waters Corporation has introduced its new high performance liquid chromatography system designed for laboratories with the need for basic HPLC-derived information on a budget. The all-in-one HPLC system consists of a binary or isocratic pump, automated or manual injector, UV or refractive index detector, and Breeze software. The Breeze System is covered under the company's standard one-year warranty.
Waters Corporation
Milford, MA
Tel: 800-252-4752
Web:www.waters.com

Pressure gauge, controller

Click here to enlarge image

Alicat Scientific's Model GC12-4CH is a fast, high precision, 4-channel pressure gauge and control device. It includes four independent pressure meters, control valves and bleed valves with an integral field programmable PID loop controller. Communication is available in either analog (0-5V, 10V or 4-20mA) or digital. Pressure control ranges from negative to 100 psig with +/- 0.25% accuracy and 0.1% stability. Process connections can be customer specified.
Alicat Scientific, Inc.
Tucson, AZ
Tel: 520-290-6060
Fax: 520-290-0109
Web:www.alicatscientific.com

Level control kits

Click here to enlarge image


Gems Sensors offers a line of Warrick Controls kits, each containing all of the necessary components for a specific, single function liquid level control application. The kits are designed to control the operation of pumps in three common applications, TK kits for open tanks and ponds, WK kits for wells and deep tanks and HP kits for pressure or sealed vessels. The kits were developed for convenience and are designed to take the guesswork out of selecting the right components for each application. Each type of kit comes in two models, one for refilling (pump up) and one for draining (pump down) applications.
Warrick Controls, Inc.
Tel: 860-793-4579
Fax: 860-793-4580
Web:www.warrick.com

Foldable disposable respirators

Click here to enlarge image

MSA offers its Affinity® foldable respirators for additional convenience of a vertical flat-fold design. The respirators are divided vertically, which delivers a more correct face seal. A pre-shaped nose band makes for easier contour adjustments to achieve a snug fit. The smooth inner lining provides a tight seal and a soft, comfortable fit. An optional exhalation valve with low exhalation resistance removes hot exhaled breath, making the respirator cooler and easier to wear over time. The nuisance-odor-removal option provides relief during pungent-smelling applications. The latex-free respirators feature fixed head straps for easier donning. The respirators come individually wrapped in a wall-mountable dispenser box.
MSA
Pittsburgh, PA
Tel: 800-MSA-2222
Web:www.MSAnet.com

Rooftop walkway

Click here to enlarge image

GS Metals has introduced a new Gratewalk™ metal rooftop walkway system designed to ensure leak-free, long-lasting metal roofs. The walkways are designed to provide a safe pathway to service mechanical equipment on metal roof systems. They are elevated to discourage shortcuts and to define a visible path. They provide open, slip-resistant grating surfaces for safe footing in all weather. Construction is of corrosion-resistant galvanized steel. The system is available with GS Metals different walking surfaces such as Grate-Lock®, Grip Strut®, Traction Tread™ and Perf-O Grip.
GS Metals Corp.
Pickneyville, IL
Tel: 800-851-9341
Fax: 618-357-3605
Web:www.gsmetals.com

Flowmeters

Click here to enlarge image

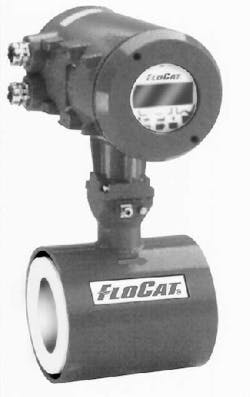

FloCat has introduced its RK20-C electromagnetic flow meter designed to measure the flow of electrically conductive liquids in full pipes. It has no moving parts or obstructions in the fluid stream, so the meter is virtually maintenance free. It is insensitive to changes in specific gravity, viscosity, pressure and temperature, making it suitable for difficult to meter fluids such as corrosives, slurries and sludges. It features a Teflon® lined flowtube with Hastelloy® electrodes and comes in pipe sizes from 3/8 in. to 6 in. and flow rate of 1 to 40 ft/sec with a system accuracy of +/- 0.3% of reading.
FloCat
Kenosha, WI
Tel: 262-653-0790
Fax: 262-653-0858
Web:www.flocat.com

Power source

Click here to enlarge image

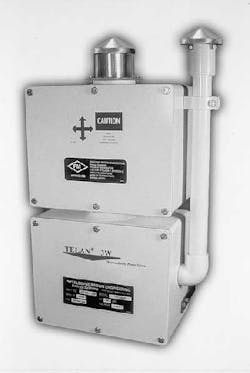

The Telan 3W is the newest member in Teledyne Energy System's family of power-generation products. It is a natural gas or liquid propane gas fueled thermoelectric generator that provides 3 watts of electrical power at 12 volts. Housed in a corrosion-resistant, weather-tight aluminum case, the unit is able to perform in virtually all weather conditions. It has the capacity to produce high quality power with minimal lifetime maintenance, and is suitable for remote locations where sunlight is unreliable or short-lived. Applications include data collection and telemetry, pressure recorders and electronic flow computers.
Teledyne Energy Systems
Huntsville, AL
Tel: 410-771-8600
Web:www.teledyne.com

Occupational safety

Lab Safety Supply offers a fax-on-demand service called "EZ Facts." It provides information and training materials and a newsletter called "TECHlines" dedicated to occupational safety and industrial issues. The company's technical representatives work from 6 a.m. to 9 p.m. CT weekdays to answer all kinds of product questions. The panel of experts keeps up on new product information, regulations and other rapidly changing issues that may impact customer purchases.
Lab Safety Supply Inc.
Janesville, WI
Tel: 800-356-2501

Gas diffusers

Diffused Gas Technologies' eight-page brochure is a full color, easy-to-read document with quick reference features. It overviews the line of gas diffusers offered for replacement and new aeration installations. The brochure reviews the basic history of the principles of diffused gas aeration and its use in the treatment of water and wastewater streams. The devices are used in a wide range of aerobic wastewater treatment technologies such as package treatment plants, large-scale aeration basins and equalization tanks and sludge digesters. The brochure features color photos of the various types of coarse and fine bubble diffusers offered, installations, and line drawings with dimensional and capacity data.
Diffused Gas Technologies
Cincinnati, OH
Tel: 513-531-4426
Fax: 513-531-4436

Grease removal

Abanaki Corporation, Oil Skimmer Division, recently released a new full-color brochure describing its complete line of grease removal systems. The brochure describes the company's Grease Grabber®, which features a patented design developed specifically to pick up heavy grease and oil up to 160 gph. The literature includes photographs, line drawings, product features and benefits, specifications, application information, contact information and more.
Abanaki Corporation
Oil Skimmer Division
Chagrin Falls, OH
Tel: 800-358-7546E-mail: [email protected]

Safety, health training

The National Safety Council's Summer 2000 Product and Services Catalog is available free of charge. The full-color, 88-page catalog features the newest and most-requested safety and health training programs, reference manuals and publications, periodicals, newsletters, posters, booklets, videos, software and more. It is designed as a resource for environmental professionals. The organization offers discounts to its members. The National Safety Council is a not-for-profit, non-governmental organization that provides public service information on safety, health and environmental topics.
The National Safety Council
Itasca, IL
Tel: 630-775-2307
Fax: 630-775-2310

Fusion machines

A four-color, 50-page brochure describes McElroy Manufacturing's butt, saddle and socket fusion machines and related equipment. The information covered includes the TracStar™ family of equipment and LD Sidewinder™ for fusing branch fittings with base diameters up to 18 in. OD on any main size. Also included is information on coil pipe straightening and rerounding equipment, hot tap tooling, split heaters and other available accessories.
McElroy Manufacturing, Inc.
Tulsa, OK
Tel: 918-836-8611
Fax: 918-831-9256

Samplers

A comprehensive color brochure from American Sigma showcases its line of 900 and 900 MAX Series samplers. The 16-page brochure includes detailed descriptions and photos as well as charts covering specifications and options for selecting samplers and bottles to meet specific water management requirements. Included is a page detailing a complete system for integrating sampler data communications. The brochure describes the availability in portable, refrigerated and all weather configurations, and explains how the samplers maintain accuracy and repeatability of sample volumes.
American Sigma
Loveland, CO
Tel: 970-669-3050
Fax: 970-669-2932

Belt-driven mixers

Chemineer has released new information on its Prochem MD and PB Belt-Driven Mixers. Bulletin 720 is a 4-page, color bulletin with product photographs and information on these side-entry mixers. The literature describes product design, features, benefits, and performance. It includes detail on the various features of side-entry mixers, including horsepower and speed ranges, shafts, bearings, impellers, unit construction, housings and mounts, tank shut-off devices, shaft seals, belt drives and guards, parts, and service.
Chemineer, Inc.
Dayton, OH
Tel: 937-454-3200
Fax: 937-454-3379
Web:www.chemineer.com

Expansion joints

Proco Products has released a brochure describing its Series 240/242 molded expansion joints. The brochure describes product applications, design, and materials. Seven tables provide a wide range of product information and specifications. Engineering drawings show cut-away views and product-design details for both the 240 and 242 series joints. Notes describe control rod/unit applications, special applications, and installation details. The brochure also includes information for ordering Proco product guides and product catalogs.
Proco Products, Inc.
Stockton, CA
Tel: 800-344-3246
Fax: 209-943-0242
Web:www.procoproducts.com

Plant automation

A new CD-ROM from Rockwell Automation presents a reference guide for plant automation professionals. The Allen-Bradley Practical Guide to Motor Control contains valuable information on the concepts and proper applications of motor control. This interactive CD is designed to help engineers, designers, contractors, electricians and facility maintenance and operating personnel gain a better understanding of motors and their associated controls. The software proves to be a useful training tool for new and experienced professionals within the industry. It uses photos, drawings and data sheets to explain concepts in an easy-to use, easy-to-learn format. Topics include: how control circuits operate, the use and types of control relays, pushbuttons, motor starters, sensors and overload protection devices.
Rockwell Automation
Milwaukee, WI
Tel: 414-382-4329
Fax: 414-382-4347

Flowmeters

A new product brochure from Hoffer Flow Controls, Hoffer Mini-Flowmeter Engineering Guide, describes how its MF (Mini-flow) series of flow meter designs are meeting industry's need for low-flow measurement in liquid applications. The meters incorporate a wider selection of bearing choices to meet media compatibility, desired turndown and accuracy considerations. The literature covers applications, selection considerations, specifications, viscosity effects and more.
Hoffer Flow Controls, Inc.
Elizabeth City, NC
Tel: 800-628-4584
Fax: 919-331-2886

Cleanup technologies

An information packet describes the new technology used in various project areas by CES (Current Environmental Solutions.) These technologies involve cleanup and restoration of contaminated aquifers and soils. The brochure describes the way each technology works. Particularly interesting is the Six-Phase Heating™ technology developed by scientists at the U.S. Department of Energy's Pacific Northwest National Laboratories. The technology splits conventional electricity into six electrical phases for the resistive heating of soil and groundwater using electrodes in an hexagonal array.
Current Environmental Solutions
Foothill Ranch, CA
Tel: 949-916-9595
Fax: 949-716-7168

Plastic pumps

A new technical article from Vanton Pump responds to the question "Can plastics handle your aggressive fluid pumping needs?" The article discusses dealing with aggressive fluids and provides basic information needed to make an informed decision for a new or retrofit centrifugal pump installation. Illustrated with a close-up photograph of a severely corroded pump, the article provides performance data on the many thermoplastics and thermosets available for use in corrosive and abrasive pumping applications. The article also compares thermoplastics and thermoset characteristics with those of chromium-nickel stainless alloys.
Vanton Pump & Equip. Corp.
Hillside, NJ
Tel: 908-688-4216
Fax: 908-686-9314
Web:www.vanton.com

Diaphragm Pumps

Click here to enlarge image

A.Y. McDonald Mfg. Co. offers its diaphragm pumps for pumping muddy, mucky, sand-laden goop and slow seepage in many applications. The pumps handle 1 3/4-in. solids and a strainer is included. The pumps feature extended run dry capability for seepage and fast, sure priming for ease of use. The heavy-duty aluminum castings, TPE (Thermoplastic) diaphragm and neoprene flap valves are designed for long pump life. High capacity flapper valves maximize flow. Oil bathed gears provide efficient operation, and the suction accumulator is designed for smoother flow.
A.Y. McDonald Mfg. Co.
Dubuque, IA
Tel: 800-292-2737
Fax: 800-832-9296
Web:www.aymcdonald.com

Chopper pumps

Click here to enlarge image

Vaughan Company introduces its new "Prime Cut" Self-Primer Chopper Pump. The pump contains the features found in all Vaughan Chopper Pumps, and is ideally suited for lift stations or scum pits, where rags and other stringy materials frequently clog conventional "solids-handling" self-primers. The Prime Cut offers the performance of a pump and comminutor combined into one piece of more reliable equipment, yet costs less money to purchase, install and maintain.
Vaughan Co., Inc.
Montesano, WA
Tel: 1-888-249-CHOP
Fax: 360-249-6155
Web:www.chopperpumps.com

Centrifugal pumps

Click here to enlarge image

USFilter's Kruger Products' line of dry mount and submersible centrifugal pumps are available with chopping systems and can handle a variety of applications including wastewater treatment plants. A large range of motor horsepower and impeller variations means the pumps can manage difficult to handle liquids. The Air Jet submersible pumps aerate and mix water, wastewater, and sludges. The pumps' high efficiency motors, effective chopping systems, specially constructed impellers, pump housings, and positive sealing offer solutions for a wide range of pumping jobs.
USFilter Kruger Products
Cary, NC
Tel: 919-677-8310
Fax: 919-677-0082

In-line grinders

Click here to enlarge image

The Muffin Monster® helps prevent pump breakdowns and improves overall maintenance. In the Banff, Alberta, WWTP, a Muffin Monster located in front of the two peristaltic pumps helps prevent the rupture of the rubberized hose inside the pumps. The hose operates under extremely high pressure and a solid object, such as a piece of metal, easily can rupture it. The Muffin Monster 30000 series in-line grinder is constructed of ductile iron and cutters of 4130 through-hardened alloy steel on shafts of 4140. Mechanical seals protect the bearings and a 3 hp motor.
JWC Environmental
Tel: 949-833-3888
Fax: 949-833-8858
Web:www.jwce.com

High head pumps

Click here to enlarge image

ABS introduced its new series of HiLift™ pumps for applications where the head is high but the flow is relatively low. This can arise if the static lift is high or where the pipeline is very long, leading to high friction losses— or a combination of these circumstances. Applications for the new submersible pumps include screened or unscreened sewage, dewatering in underground areas, wash down systems, water abstraction from lakes or rivers, quarries and leachate from landfill sites. The pumps especially are suitable for stormwater where high heads are needed. The pumps are available for pumping up to 246 ft. in 50 Hz or 280 ft. in 60 Hz. The range goes from 3.5 kW to 23 kW and is offered in both standard and explosion-proof versions. The HiLift™ range comprises DN 65, DN 80 and DN 100 versions with solids passage of 13/4in. or 2in.. The pump's patented ContraBlock™ system includes an open single or multiblade impeller that revolves on a spiraled groove, and ensures that solids or fibers are processed through the pump without blockage.
Cardo Pump AB
Mölndal, Sweden
Tel: 46-31-83 63 91
E-mail:[email protected]
Web:www.abspumps.com

Pump station

The Capsular Wet Well Mounted Pump Station now includes a new cover hood that comes completely assembled and provides an alternative to concrete, built-in-place pumping stations. The design features a full-sized walk-in door and easy-to-access equipment hatch. The fiberglass hoods are sized at 14.6 ft. long by 16.5 ft. wide, and 22.5 ft. long by 24.5 ft. wide. The design also includes a walk-in door 36-in. wide by 77 in. long. An equipment hatch located on the roof of the hood measures 36-in. by 36 in. and provides access for the operator to pull equipment out of the station without disassembling the hood. All pumps, controls, valves and piping are located above-grade. Several configurations include two or three sets of series 6 or 8 in. pumps in parallel, or three or four 6 or 8-in. pumps running in parallel.
Smith & Loveless, Inc.
Lenexa, KS
Tel: 913-888-5201
Fax: 913-888-2173
Web:www.smithandloveless.com

Sealless, self-priming pumps

Anko Products offers its MityFlex® pumps suitable for transfer, dispensing and sampling applications. The sealless and self-priming pumps provide consistent positive displacement and can handle a wide range of viscosities. Flow rates range from 0.04 ml/min. to 3,800 ml/min. The company's new
Web: site offers engineers and specifiers an on-line source for photos, engineering drawings and specifications for its complete line of peristaltic pumps and fractional horsepower gears.
Anko Products, Inc.
Bradenton, FL
Tel: 941-749-1960
Fax: 941-748-2307
Web:
www.ankoproducts.com

High pressure pumps

Click here to enlarge image

The Masterflex® Series L/S® high-pressure pump system features continuous 100-psi operation. It requires no special tubing, gears, valves, seals or diaphragms, so the time required for set-up and maintenance is significantly less. This pump is ideally suited for fast changeover on chemical injection. It comes as a complete unit that includes a high-performance pumphead and a variable speed console for setting flows between 0.9 and 170 ml/min. Also included are a single-turn speed control, on/off/reverse switch, LED power indicator and a center-off feature which allows speed settings to be maintained while turning the unit on and off.
Barnant Company
Palatine, IL
Tel: 800-637-3739
Fax: 847-381-7053
Web:www.barnant.com

Float switches

Conery Mfg. has a large variety of mercury and mechanical float switches for municipal applications. The mercury floats are made of a solid polyurethane material and can be internally weighted, externally weighted or pipe mounted. The mechanical floats are made of a highly impact resistant ABS material. All Conery floats are available with narrow angle (control duty) contacts rated at 10 amp, 120 vAC or with wide-angle (pump duty) contacts rated at 1/2 hp at 120 vAC, 13 amps to 2 hp at 240 vAC, 15 Amps. A normally open float is used for pump down applications or a normally closed float is used for pump up applications.
Conery Mfg., Inc.
Ashland, OH
Tel: 419-289-1444
Fax: 419-281-0366
Web:www.conerymfg.com

High viscosity pumps

Click here to enlarge image

John Crane's new Mechanical Lip Seal (MLS) is designed for pumps in high viscosity applications. It combines the versatility of mechanical packing and the advanced performance of a mechanical seal. Three interchangeable PTFE sealing elements can be replaced or repaired on-site, extending the longevity of the seal, shortening downtime and simplifying maintenance. It has a 316 stainless steel gland and sleeves that ensure a long service life. Three modular PTFE sealing elements sequentially control system pressure. The non-reactive PTFE means the seal can accommodate a wide variety of pumped media and conditions ranging from recurring pump start-ups, pressure variations and dry-running.
John Crane
Morton Grove, IL
Tel: 847-967-2400
Fax: 847-967-3915
Web:www.johncrane.com

Quiet running pump

Click here to enlarge image

A new silenced Dri-Prime® pump from Godwin operates at a sound level of less than 65 dbA at 30 feet. The model CD225 is designed for applications where the environment dictates minimal noise during pumping. It offers maximum flow rates to 3000 gpm with total dynamic heads to 175 feet and solids handling to three inches. The eight-inch pump has served in sewer bypass, pumping station and potable water booster pumping applications as well as dewatering jobs.
Godwin Pumps of America
Bridgeport, NJ
Tel: 856-467-3636
Fax: 856-467-4428
Web:www.godwinpumps.com

High pressure pumps

Click here to enlarge image

Hydra-Cell Industrial Pumps, Wanner Engineering Inc., has introduced its High Pressure D04 Series positive displacement pumps. The pumps feature hydraulically balanced diaphragms for quiet, smooth operation, while providing pressure to 2500 psi. The heavy-duty pumps have no troublesome cups, packings or seals. Applications include clean fluids, high temperature fluids, reclaim water, slurries, abrasives, caustics, corrosives, and more.
Hydra-Cell Industrial Pumps
Wanner Engineering Inc.
Minneapolis, MN
Tel: 612-332-5681
Fax: 612-332-6937
Web:www.wannereng.com

Disc pumps

Click here to enlarge image

Because disc pumps use no impingement devise, they offer greatly reduced wear from abrasion, exceptional ability to pump entrained air, little or no product degradation and no emulsification. Pumping is pulsation-free, producing laminar flow that requires less NPSH. There are no close tolerances, no radial loads and almost no axial loads. Discflo pumps are designed for tough fluid conditions that include high viscosities; large, stringy or shear-sensitive materials; high entrained air levels; severe abrasive conditions; and more.
Discflo
El Cajon, CA
Tel: 619-596-3181
Fax: 619-449-1990
Web:www.discflo.com

Submersible grinder pumps

Click here to enlarge image

Goulds Pumps has extended its submersible grinder pump product line to include 3, 5, and 7.5 hp models in both high and low flow ranges. The 1GA and 2GA pumps are designed for high head and pressure systems. The casing is made of cast iron for durability. The volute type is designed for high efficiency. The air-filled NEMA B type motor is designed for 15 starts per hour and has built-in thermal sensors. These pumps have a total head of 180 feet and a maximum capacity of 200 gpm. The entire series is available with explosion proof ratings.
Goulds Pumps
Seneca Falls, NY
Tel: 315-255-3378, ext. 394
Web:www.goulds.com/wtd

Portable pump

Click here to enlarge image

ITT Flygt Corp. offers a small, portable 2.7 hp pump ideal for dewatering ditches, manholes, small construction sites and basements. The model Ready 16 weighs only 42 lbs. and has a diameter of 7-7/8 in., so it can be carried easily. The three-phase model develops up to 78 feet of head and delivers up to 170 gpm. The single-phase model reaches 65 feet of head and pumps up to 160 gpm. It is available with a two or three in. NPSM discharge and employs an abrasion resistant thermoplastic polyurethane impeller.
ITT Flygt Corp.
Trumbull, CT
Tel: 203-380-4700
Fax: 203-380-4711

Metering pumps

Click here to enlarge image

Netzsch NM Close Coupled pumps are compact and designed to provide optimum performance. The pumps are constructed with cast iron housings, mild steel internals, chrome plates, tool steel rotors, Bun-N stators, and a single mechanical seal with SM pin type universal joints. All motors come in TEFC enclosures, 3/60/460 volt, complete with thermistors.
Netzsch Inc.
Exton, PA
Tel: 610-363-8010
Fax: 610-363-0971
Web:www.netzschusa.com

Centrifugal pumps

Click here to enlarge image

The heavy-duty, non-clogging Patterson Type "F" centrifugal pumps are designed for sewage plants and other applications including sludge, drainage, or pumping of unscreened solids up to eight inches in diameter. They are offered in 17 standard models with custom alterations. Capacities for vertical and horizontal models range from 500 to 100,000 gpm, with heads to 150 feet.
Patterson Pump Co.
Toccoa, GA
Tel: 706-886-2101
Fax: 706-886-0023

Diaphragm pumps

Click here to enlarge image

The Hydroflo® Series 1077 diaphragm metering pump is specifically designed for NaOCl and chemicals that tend to off-gas easily. The self-priming, high-lift pump head incorporates a degassing valve that automatically vents gases on each stroke, eliminating the need for operator attention. The pump is available with clear or PVC pump head. Features include hydraulically actuated PTFE diaphragm, built-in relief valve, and metering accuracy of +/- 1%. Capacities range from 1 to 27 gph at pressures to 150 psi and options include electronic capacity control and variable speed drive for 100:1 turndown range.
Penn Process Technologies, Inc.
Plumstead, PA
Tel: 215-766-7766
Fax: 215-766-8290
Web:www.pennprocess.com

Wastewater pumps

Click here to enlarge image

The Pumpex K series 50 hp to 300 hp wastewater pumps feature the dual action of a hard-faced silicon carbide bellows seal and a proprietary-engineered angled seal housing. They are designed to provide long-lasting wear and protection of the pump shaft and motor for continuous pump operation and minimal maintenance. The low coefficients of heat and elasticity of the silicon carbide seal resist extreme friction and corrosion. The acutely angled seal housing prevents clogging of the shaft and motor.
Pumpex, Inc.
Lebanon, NJ
Tel: 908-730-7004
Fax: 908-730-7580
Web:www.pumpex.com

Metering Pumps

Click here to enlarge image

ProMinent's new gammaL and Sigma/3 microprocessor control metering pumps feature LCD display of output rate and totalized flow in gallons or liters, flow confirmation and run status including a built-in warning system. Through an optional BUS interface, metering data, pump settings and operating conditions can be monitored or adjusted at a remote computer control station. The gammaL solenoid pump capacities range from 0.19 to 8.4 gph, at pressures from 253 to 29 psi, and is available with an automatic degassing liquid end. The Sigma/3 motor-driven pump offers capacities from 46 to 264 gph with pressures from 174 to 58 psi.
ProMinent Fluid Controls, Inc.
Pittsburgh, PA
Tel: 412-787-2484
Fax: 412-787-0704
Web:www.prominent.cc

Pumps

LMI features its ™ed yellow and black pumps and the latest advancements in the "9" Series pumps. The "9" pumps feature advanced control options for simplified system integration. Pulse, multiply/divide, 4-20 mA, and remote on and off control capabilities are available. A variety of liquid handling assemblies and an interactive display of a pH controller working with a pump will also be displayed.
LMI
Acton, MA

Submersible effluent pump

Click here to enlarge image

A new cast-iron, submersible effluent pump, the EC9 series from the Water Systems Group of Sta-Rite Industries, features a non-clog, semi-open impeller with solids-handling capability to 3/4 in. A 2-in. NPT vertical discharge is standard. The unit is available in 230 v/single phase and 208-230/460 v/three phase complete with a 20-foot power cord. The oil-filled motor has a stainless steel shaft and impeller lock nut.
Sta-Rite, Water Systems Group
Delavan, WI
Tel: 888-782-7483
Web:www.staritepumps.com

Sponsored Recommendations

ArmorBlock 5000: Boost Automation Efficiency

April 25, 2024
Discover the transformative benefits of leveraging a scalable On-Machine I/O to improve flexibility, enhance reliability and streamline operations.

Rising Cyber Threats and the Impact on Risk and Resiliency Operations

April 25, 2024
The world of manufacturing is changing, and Generative AI is one of the many change agents. The 2024 State of Smart Manufacturing Report takes a deep dive into how Generative ...

State of Smart Manufacturing Report Series

April 25, 2024
The world of manufacturing is changing, and Generative AI is one of the many change agents. The 2024 State of Smart Manufacturing Report takes a deep dive into how Generative ...

SmartSights WIN-911 Alarm Notification Software Enables Faster Response

March 15, 2024
Alarm notification software enables faster response for customers, keeping production on track
