Water World Showcase

Flow control

VoV Enterprises offers flow control valves for injection wells. The units are PLC/SCADA controlled hydraulically actuated valves for aquifer storage and recovery, groundwater recharge, water banks, salt water barrier wells and groundwater remediation. Sizes are 4", 6", 8", and 12". The valves install in the column pipe and sit below the static water level or the draw down level created during pumping. The valve controls the flow rate and mounding while eliminating cascading of water that causes air entrainment and calcite formation.

VOV Enterprises Inc.
Anaheim, CATel: 714-0638-1774Fax: 714-638-9363Web: www.vovvalve.com

Aluminum cover

Enviroquip's AirbeamRegistered cover system combines Hallsten's flat aluminum covers with Enviroquip's TransmaxRegistered coarse bubble diffusers to produce a digester which protects operators and minimizes enclosed air volume. The covers feature interlocking extrusions with minimal air volumes for odor control. Virtually all piping is internal with the structural beams used for air supply and removal.

Enviroquip Inc.
Austin, TX
Tel: 512-834-6003
Fax: 512-834-6039
Web: www.enviroquip.com

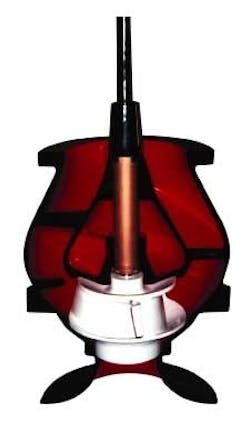

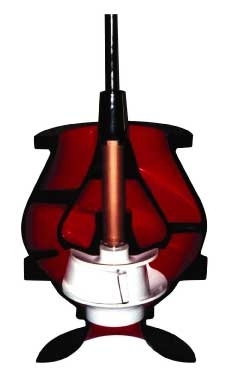

Vertical turbine pump

Patterson Pump Co. offers the new MPVT, a multi-purpose vertical turbine pump with solids handing capability and high efficiency. The pump features a large diameter pump column and bowl bearings mounted in a removable housing assembly which can be stocked and replaced when needed without time consuming tear-down of the unit. The shaft-to-impeller mounting also is designed for easy removal. The single stage, solids handling, wet pit pump has a three-vane diffuser design for reduced rotor vibration.

Patterson Pump Co.
Toccoa, GA
Tel: 706-886-2101
Fax: 706-886-0023
Web: www.patersonpumps.com

Bench respirometer

Arthur Technology provides Activated Sludge Performance Evaluations using the company's bench respirometers. The tests can provide a timely look into the biological portion of the treatment process and an early awareness of the source of problems causing poor sludge settling or decreased viability of sludge. The tests also can give advance warning of the long-term effects of toxicity and high organic loads, poor treatability and inefficient aeration. The performance evaluation is conducted under the daily supervision of company staff, who guide technicians from the client's wastewater plant through the test procedures.

Arthur Technology
Fond du Lac, WI
Tel: 800-328-7518

Ozone generator

The SGA24 from Pacific Ozone features an onboard oxygen system with a 3.2-lbs./day ozone generator in a wall-mountable stainless steel enclosure. Conveniently positioned controls include variable control, air and reactor cell pressure gauges, feed gas flow meter, an ozone output LED and analog reference meter. The system comes standard with 5-micron filter/regulator with auto drain, automatic over-temperature control and feed gas flow switch.

Pacific Ozone Technology
Tel: 925-634-7252
Fax: 925-634-7291
Web: www.pacificozone.com.

Package treatment system

USFilter offers the ActiFloctrademark system, which can treat surface water with high color, high TOC, or turbidity up to 1,000 NTU, with spikes to 3,000 NTU. The process combines the Actiflo clarification process and the Microfloc Mixed Media filter. The ActiFloc package plants are available in steel modular tanks of 0.25 to 4 MGD sizes. All are compact, with footprints only 20 percent the size of conventional systems of equivalent capacity. The plants feature instantaneous startup and chemical optimization within 15 minutes. A survey of more than 50 installations suggests that chemical use is reduced by 20 to 50 percent compared to conventional systems.

USFilter
Sturbridge, MA
Tel: 508-347-4578
Web: www.usfilter.com

UV monitoring system

Solar Light has introduced a compact system to monitor and measure the output and thus germicidal effectiveness of UV lamps and arrays used in water and wastewater treatment. The GLM 100 UV Lamp Monitoring System is comprised of the new UW254 Submersible Detector and the new LM100 UV Lamp Monitor electronics unit. The 254-nm spectral response of the detector is designed to measure the region used for germicidal radiation to kill microorganisms. An LED display provides visual indication of lamp performance as 0 to 100 % of values. The unit also provides a 4-20 mA output for connection to control systems.

Solar Light Co.
Philadelphia, PA
Tel: 215-927-4206
Fax: 215-927-6347
Web: www.solar.com

Thread sealants

Ridge Tool recently introduced a new line of thread sealants, available in two versions: a gray, non-Teflon version for metal pipes and a white, Teflon version for all types of pipe. Designed to lubricate and seal threaded joints on water lines, the new sealants will not harden, crack or shrink. Formulated for use in potable water applications, the sealants will not degrade chemically. They are able to withstand fluid pressures up to 10,000 psi. The sealants are available in 6 ounce cans and 8, 12 and 32 ounce brush-in cans. The Ridgid thread sealants are UPC and NSF listed.

Ridge Tool Co.
Elyria, OH
Tel: 800-769-7743
Web: www.ridgid.com
