Grooved-end eccentric plug valve

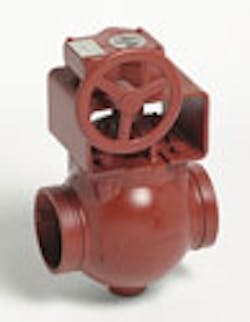

The Victaulic Series 365 AWWA Vic-Plug™ valve is a grooved-end eccentric plug valve available in 3-12-inch sizes (80-300 mm). The body conforms to AWWA C-509 standard end-to-end dimensions, while the grooved ends conform to ANSI/AWWA C-606 rigid groove specifications. Installation is quick and easy with Victaulic Style 31 couplings, Style 307 transition couplings or in combination with Style 341 Vic-Flange® adapters. The eccentric plug design assures bubble-tight sealing up to 175 psi (1,200 kPa) as the plug cams into the seat. Bidirectional sealing to 25 psi (172 kPa) is standard; full bidirectional sealing to 175 psi is also available.
