Emergency shutdown valves

May 19, 2017

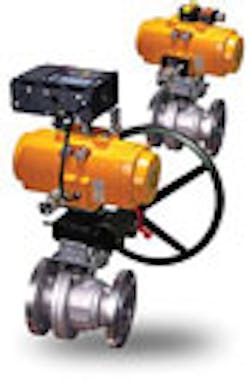

Assured Automation's ESD Series Emergency Shutdown Valve features a resettable thermal shutoff, making it simple to test a complete shutoff and reset, eliminating the need for stroke testing.

Assured Automation’s ESD Series Emergency Shutdown Valve features a resettable thermal shutoff, making it simple to test a complete shutoff and reset, eliminating the need for stroke testing. ESD tests are required by the Pipeline and Hazardous Materials Safety Administration. The valves include 150F/300F fire-safe flanged ball valve designed to the API 607-5 standard in stainless or carbon steel, in sizes from 1/2” to 8”; F Series spring return pneumatic actuators; explosion-proof solenoid valve; and FM-approved FireChek® (a testable and resettable thermal shutoff). The assembly is available for actuation temperatures of 135°F, 150°F or 165°F.

Assured Automation

www.assuredautomation.com
