New sludge handling technology provides solutions for German wastewater plant

NOV Mono has helped solve an ongoing maintenance problem for a major German wastewater treatment plant with its EZstrip™ TR Muncher.

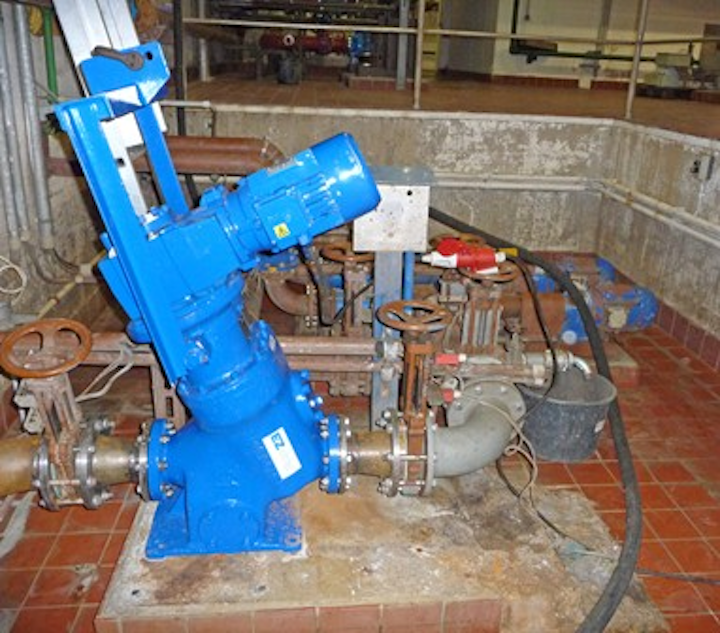

Mo 61 Karanlage E Final 2

April 29, 2013 -- NOV Mono has helped solve an ongoing maintenance problem for a major German wastewater treatment plant with the installation of an EZstrip™ TR Muncher. The Mono Muncher® has dramatically reduced the number of pipeline blockages occurring at the Käranlage Jagersfreude plant -- the largest facility of its kind in the Saarbrücken area -- and helped minimize both downtime and maintenance costs.

Its previous macerator had been experiencing increasingly frequent blockages -- often one each day -- due to the 8-12 percent dried solids and fibre content of its raw sludge handling. The process of repeated de-ragging was both time consuming and expensive, so an alternative solution was sought.

The Mono EZstrip™ TR Muncher was designed specifically to provide efficient maceration of abrasive sludges in this type of application. The Muncher's layback cutter shafts are set at an angle to the incoming sludge flow, making it extremely effective in capturing and macerating solids held in the flow. For the Käranlage Jagersfreude plant, this helped to increase protection for pumps and other equipment further along the process line by minimizing wear, reducing the need for spares to be held. If a rejection cycle is necessary, the Muncher can drop the object into the built-in trap which is set below the cutter stacks to prevent damage occurring. The waste trap features a large-diameter access port which allows for easy removal of debris, cleaning and flushing.

The complete drive, gearbox and cutter assembly can be removed from the Muncher's casing, without disturbing the pipework. "This makes any maintenance activities much quicker to complete, and it also reduces the downtime and the associated costs," explains Jagersfreude plant Abwassermeister, Ewald Stresser. "The Mono Muncher handles around 30m3/h of raw sludge and has worked very efficiently since it was installed, but it is reassuring to know that if a blockage does occur, we can remove it far more quickly and easily than we could previously."

The ETOS cutters in the Mono EZstrip™ TR Muncher provide effective maceration, as the cutter shafts operate at differential speeds to exert a tearing action on the solids. A cantilever shaft design eliminates the need for bottom bearings and seals which significantly reduces wearing components, while low cutter tip speeds reduce wear. A low power consumption rating further cuts the TR Muncher's operating costs.

###
