New Products

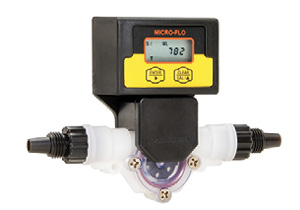

Flow verification system
The MICRO-FLO Flow Verification System is designed to be used with your metering pump to provide accurate flow measurement and accumulated flow data. Empty chemical tanks, clogged injection fittings, lost prime, and other problems can prevent a properly working pump from injecting chemical. MICRO-FLO can be connected directly to Blue-White A-100NV and C-1100V metering pumps. It may be installed directly into the pump’s discharge tubing, inline in the system after the pump, or mounted to a panel.
Blue-White Industries
No-contact coupling
Ford Meter Box’s No-Contact Lead-Pak Coupling (patent pending) is designed for connecting existing lead plumbing lines to other service line materials. The coupling prevents direct contact of the lead plumbing line with other metallic water system components. This design mitigates the possibility of galvanic corrosion.
Ford Meter Box
Sanitary sewer repair
Eliminate troublesome outside drops and clean up failed inside drops. RELINER Inside Drop Bowls and Stainless-Steel Pipe Support Brackets simply bolt to the manhole wall and can be cleaned and inspected from above. Compact, low-profile bowls are available in dozens of sizes to fit your application. RELINER® Modular Manhole Invert Channels improve manhole hydraulics, reducing maintenance, turbulence, and odor.
RELINER®/Duran Inc.
Water level datalogger
The Solinst AquaVent water level datalogger uses a vented pressure transducer for reliable, accurate datalogging of water levels that are automatically barometrically compensated. The AquaVent features a robust, low-maintenance design. Hydrophobic filters and permanent desiccants provide moisture protection for the lifetime of the instrument. Batteries are user-replaceable, conveniently located in the well head at surface. Use with Solinst Levelogger Software or in your SCADA network using SDI-12 or MODBUS protocol.
Solinst Canada Ltd.
Piston pump
Q.E.D. Environmental Systems’ new TopDrive Piston Pump system for landfills and other cleanup applications features a versatile, easily modified drive assembly for pumping in a variety of situations. Its fully-interchangeable drive assembly allows for easy transitions between hand, solar, electric and top-drive pneumatic pumping without removing the well seal. This feature provides additional flexibility in pumping applications and the ability to pump most fluids under a wide range of operating conditions. The TopDrive Piston Pump can be paired with QED’s patented well seals, which provide unsurpassed rigidity and feature customizable port options to meet site-specific needs.
Q.E.D. Environmental Systems
Multistage pumps
Wilo USA announces the release of extended range versions of the Wilo Helix V high-efficiency multistage pump line. The Helix V is a non-self-priming, high-pressure, vertical multistage centrifugal pump with inline connections and is suitable for a wide range of applications including water supply and pressure boosting, industrial circulation systems, washing systems and irrigation. The pump is available in 6” and 8” and boasts full 304 stainless-steel construction, a premium efficient NEMA motor, cartridge seal for easy replacement and repair, and improved hydraulic performance.
Wilo USA LLC
Coal tar epoxies
The Denso® North America line of self-priming, spray-applied coal tar epoxies and a coal tar epoxy alternative is used for the long-term protection of steel and concrete substrates against water, wastewater, seawater, alkaline water and acidic water corrosion. These high-build, two-part epoxies are designed to work in conjunction with cathodic protection to prevent corrosion of steel piles, sheet piles, lock gates, reservoirs, non-potable water pipelines, treatment/storage tanks, bridges and many other applications.
Denso North America
Ball valves
Val-Matic Ball Valves are available in a wide range of sizes and pressure classes. Ener•G® AWWA Resilient Seated Ball Valves and QuadroSphere® Trunnion Mounted Ball Valves are designed to provide both on-off and process control functions in municipal and industrial systems. Built using advanced manufacturing technologies and certified to rigorous AWWA, ASME and API industry standards to assure reliable performance in numerous applications and media including liquids, gases and slurries. The valve seating systems are built with corrosion- and wear-resistant materials and tested to provide positive seating.
Val-Matic
Butterfly valve
Mueller Co. has expanded the Lineseal butterfly valve product line to include the Lineseal 350, which offers 350 psi operating pressure under flow conditions of 16 ft/sec up to temperatures of 250°F, and meets the design criteria for AWWA C504. This new valve is available in sizes 6”-36” for mechanical joint (MJ) ends and 6”-48” for flanged (FL) ends. The non-metallic bearings prevent galvanic corrosion and provide a lower coefficient of friction, and the Chevron “V” type packing is self-adjusting to last the life of the valve.
Mueller Company
Hydraulic chainsaw
CS Unitec has introduced a series of hydraulic chainsaws designed with a chain brake to stop chain movement during kickback or repositioning of the saw during cutting. Suitable for use in underwater applications, this saw is ATEX classified II2GcIIBT5. Features include a powerful 10 HP motor with a no-load speed of 5,000 RPM to cut wood, plastics, ductile iron, cast iron and concrete with applicable bar and chain. The saw operates on 12 GPM hydraulic oil at 2,000 psi. Available with a cutting capacity of 11”, 15”, 17”, 21”, 25”, 28” or 40”.
CS Unitec Inc.
Rugged tablet
The Mesa 2 Rugged Tablet from Juniper Systems runs either Windows 10 or Android and features a 7-inch Illumiview™ display, providing outstanding visibility in bright sunlight. It also includes an extra-long battery life for long working hours, protection against dust, water, and accidental drops, and a built-in GNSS receiver for collecting location data. With these features, Juniper Systems’ rugged data collection solutions are suitable for applications in utilities, meter reading, GIS mapping, landscape management, public safety, and several other public services.
Juniper Systems
Fall protection
The new 3M™ DBI-SALA® Comfort Grip Connector from 3M™ Fall Protection improves connecting and disconnecting while providing flexibility to anchor efficiently and comfortably in multiple orientations. Designed and certified to arrest a fall when loaded in multiple orientations, the Comfort Grip Connector features 5,000-pound tensile strength as well as up to 3,600 pounds in transverse and gate strengths. When connected to a vertical or transverse application, such as a pipe, the hand-guard pin shears in the event of a fall to allow the connector to align with the direction of the fall and remain securely anchored.
3M
Sensing, measurement tool
Texas Instruments’ new MSP430FR6047 MCU family lets developers add more intelligence to flow meters by taking advantage of a complete waveform capture feature and analog-to-digital converter (ADC)-based signal processing. This technique enables more accurate measurement than competitive devices, with precision of 25 picoseconds or better, even at flow rates less than 1 liter per hour. In addition, the integrated devices reduce water meter system component count by 50% and power consumption by 25%, enabling a meter to operate without having to charge the battery for 10+ years.
Texas Instruments
Super-fine screen
The OR-TEC Blue Whale Micro Bar Screen effectively screens to 2.0 mm to remove approximately three times the volume of rags, wipes, hair and other stringy material in wastewater, thereby eliminating downstream matting. It is self-cleaning, requires zero wash water or brushes and is guaranteed not to blind. The Micro Bar Screen uses a parallel array of wedge-sectioned bars (not wedge-wire) with even spaces to form the screen face. Wedge-sectioned screen bars have only 2 contact points on which material can block, as the path from the screen face to the back of the screen is gradually enlarged.
OR-TEC
Granular activated carbon
Cabot Corporation’s HYDRODARCO® 4000 and NORIT® GAC 400 are granular activated carbons (GAC) for the removal of poly- and perfluoroalkyl substances (PFAs) including perfluorooctanoic acid (PFOA) and perfluorooctane sulfonate (PFOS) in public water systems. Unlike other types of activated carbon, HYDRODARCO 4000 and NORIT GAC 400 activated carbons have optimized pore size distributions that provide a large quantity of adsorption sites for PFOA and PFOS removal. These products resist interference from natural organic matter that can cause partial or complete blockage of the activated carbon pore structure, leading to reduced adsorptive capacity for target contaminants including PFOA and PFOS.
Cabot Corporation
Twin shaft grinder
NETZSCH Pumps North America’s new N.Mac™ Twin Shaft Grinder is designed to protect pumps and processes. The N.Mac is designed to fragment a variety of materials and is suitable for wastewater treatment, biogas and biomass plants, food, animal processing, and other waste and industrial applications. Available in both channel and inline (flanged) housing construction, the N.Mac can be installed into effluent channels or upstream from a pump. Featuring cartridge cutting knives for quick and simple replacement and servicing, the N.Mac offers quenched lubricated mechanical seals for dry running capability. The mechanical seal cartridge design enables quick and simple replacement and servicing.
NETZSCH Pumps North America
High-gloss urethane technology
Induron Protective Coatings’ newest product, Indurethane Monarch HS, is a high-gloss urethane technology that combines durability and color retention in a high-gloss and high-distinction-of-image finish. It’s formulated to help increase productivity with easy application and fast dry speed. The product has a low odor, long pot life and easy application process with a variety of spray equipment. The finish not only represents the next generation of urethane technology but also expands Induron’s existing polyurethane, polysiloxane and flurourethane technology.
Induron Protective Coatings Inc.
Pressure management valve with backup
The Singer 106/206 PGM-2PR-630-SM Pressure Management Valve with Integral Backup hydraulically manages pressure around the clock to reduce water loss, save money and prevent unwanted pressure spikes that contribute to premature pipe failure. Built on the Singer 106-PGM or 206-PGM main valve, a simple field retrofit is possible using the paddle style orifice plate. The valve switches between high- and low-pressure pilots based on flow rate. The pressure-reducing pilots independently adjust to suit the optimal downstream pressure. Available in sizes 4”-12” (DN100-DN300) with a minimum pressure at the valve inlet of 29 PSI (200 kPa/2 barg).
Singer Valve
